DXK24ZTLA-WF PANEL AND FAN ASSY

DXK24ZTLA-WF PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RLH122A500
PANEL, FRONT
[1-9] In Stock
RLH102A500
PANEL ASSY, FRONT
[2-4] In Stock
RLH435A502
PANEL ASSY, AIR IN
[3] In Stock
RLH129A023
ARM, INLET (R)
[4] In Stock
RLH129A024
ARM, INLET (L)
[5] In Stock
RLH129A021
HOLDER, ARM (R)
[6] Contact
RLH129A022
HOLDER, ARM (L)
Contact
[7] In Stock
RLH133A500
ORNAMENT ASSY
[8] In Stock
RLH437A500
FILTER, AIR
Notes: Sold individually
[9] Contact
RSA011H056
LABEL,NOTICE
Contact
[10] In Stock
RLH435A501
GRILLE, AIR OUTLET
[10-31] In Stock
RLH435A500
GRILLE ASSY, AIR OUT
Notes: Includes drip/condensate tray, all louvers, louver motors, louver motor wiring harness, Drain hose & plug

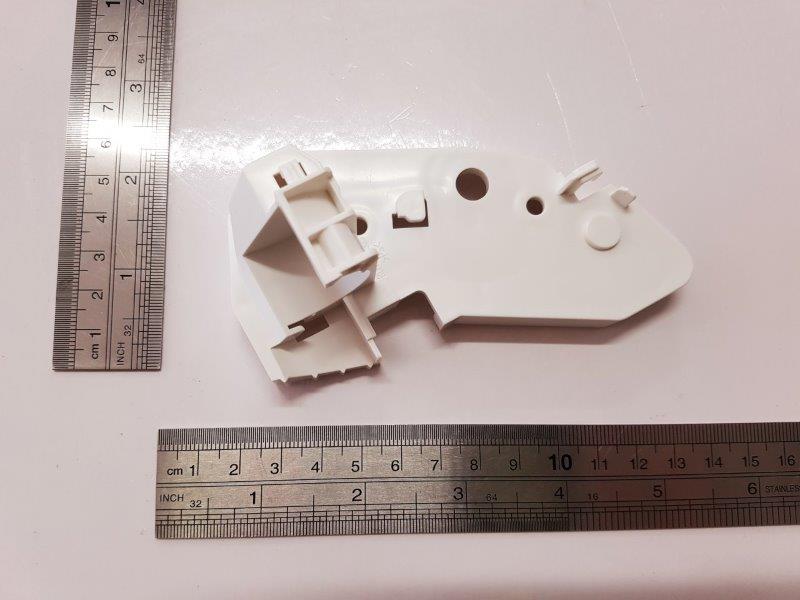

[11] In Stock
RLH129A505
BRACKET, MOTOR (R)
[11-15] In Stock
RLH129A504
BRACKET ASSY (R)
[12] In Stock
RLB144A005
CRANK(C)
Notes: LENGTH 2CM Show Image
RLB144A005
[13] In Stock
SSA512T158
MOTOR STEPPING
SSA512T158
[14] In Stock
RSA504A034
HARNESS ASSY
[15] In Stock
RSA504A034A
HARNESS ASSY
[16] In Stock
RLH129A507
BRACKET, MOTOR (L)

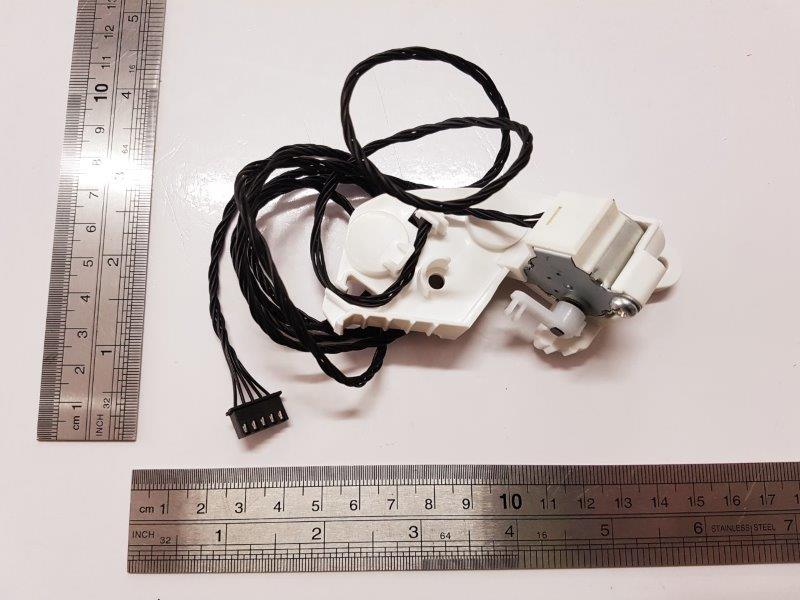

[16-19] In Stock
RLH129A506
BRACKET ASSY (L)
[17] In Stock
RLB144A005
CRANK(C)
Notes: LENGTH 2CM Show Image
RLB144A005
[18] In Stock
SSA512T158
MOTOR STEPPING
SSA512T158
[19] In Stock
RSA504A034C
HARNESS ASSY
Notes: For Left side Stepping motor
[20] In Stock
RLH144A501
LINK
RLH144A501
[20-22] In Stock
RLH144A500
LINK ASSY
RLH144A500
[21] In Stock
RLH144A502
CRANK (U)
RLH144A502
[22] In Stock
RLH144A503
CRANK (L)
RLH144A503
[23] In Stock
RLH436A500
FLAP (U)
Notes: Upper
[24] In Stock
RLH436A501
FLAP (L)
Notes: Lower
[25] In Stock
RLH129A508
PLATE, CONNECTING (R)
[25-26] In Stock
RLH436A502
LOUVER ASSY (R)
Notes: Right Side - Includes 8 louver fins & Connecting rod
[26] In Stock
RLH436A503
LOUVER
RLH436A503
[27] In Stock
RLH129A509
PLATE, CONNECTING (L)

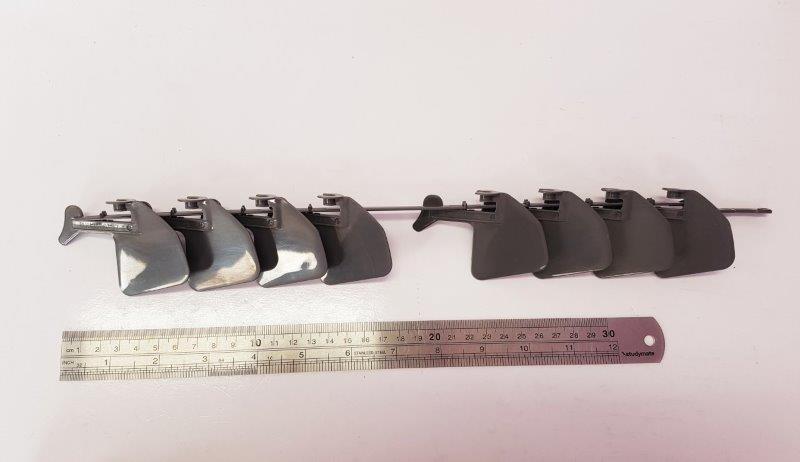

[27-28] In Stock
RLH436A504
LOUVER ASSY (L)
Notes: Left Side - Includes 8 louver fins & Connecting rod
[28] In Stock
RLH436A503
LOUVER
RLH436A503
[29] In Stock
RLG129A010
SHAFT
[30] In Stock
SSA423A114
HOSE,DRAIN
[31] In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray.
[32] In Stock
RLH111A500
BASE ASSY
[33] In Stock
RLH129A001
CASE ASSY (U)
[34] In Stock
RLH129A003
CASE ASSY (L)
[35] In Stock
SSA431G057B
IMPELLER
[36] In Stock
SSA923C136Z
BEARING, PLANE
[37] In Stock
SSA512T126A
MOTOR DC
Notes: INDOOR FAN MOTOR Show Image
SSA512T126A
[38] In Stock
RLH032A500
PLATE, INSTALLATION
[39-40] In Stock
RLH132A500
PANEL ASSY, BOTTOM
[40] In Stock
RLH129A025
CAP
Notes: SOLD INDIVIDUALLY Show Image
RLH129A025
[41] In Stock
RLH116A001
BRACKET, CONTROL
[42] In Stock
SSA913A007
SCREW
Notes: 1pc ONLY Show Image
SSA913A007
