Parts List
Key:
Instock.
Nilstock.
Contact MRE.
Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-19]
In Stock
RYD301A149
HEAT EXCH ASSY(AIR)
[2]
Contact
RYD321A684
PIPING ASSY
Contact
[3]
Contact
RYD315D080
HEADER ASSY
Contact
[4]
Contact
RYD315A041A
DISTRIBUTOR
Contact
[4-12]
Contact
RYD315A042
DISTRIBUTOR ASSY
Contact
[5]
Contact
RYD323B002
TEE(SLD)
Contact
[6]
Contact
RYD321A693
PIPING ASSY
Contact
[7]
Contact
RYD315B166
CAPILLARY
Contact
[8]
Contact
RYD321A695
PIPING ASSY
Contact
[9]
Contact
RYD321A697
PIPING ASSY
Contact
[10]
Contact
RYD315B169
CAPILLARY
Contact
[11]
Contact
RYD321A699
PIPING ASSY
Contact
[12]
Contact
RYD321A701
PIPING ASSY
Contact
[13]
Contact
RYD129A283
BRACKET(L)
Contact
[14-16]
Contact
RYD321A679
PIPING ASSY
Contact
[15]
Contact
RYG323F002B
UNION,SOLDER
Contact
[16]
Contact
RYG323F002A
UNION,SOLDER
Contact
[17]
Contact
RYD129A284
PLATE,BAFFLE
Contact
[18]
Contact
RYD129A285
SEAL(A)
Contact
[19]
Contact
RYD129A286
SEAL(B)
Contact
[20]
In Stock
RYD142A166
BOX,CONTROL
[20-22]
In Stock
RYD142A171
BOX‚ ASSY,CONTROL
[21]
In Stock
RYD132A040
COVER,CONTROL
[22]
Contact
RYD129A292
COVER,BEND
Contact
[23]
In Stock
RYD505A134F
PWB ASSY
[24]
In Stock
RYD504A138
HARNESS‚ ASSY
[25]
In Stock
SSA551A223T
SENSOR ASSY
[26]
In Stock
SSA551B017C
SENSOR(HUMIDITY)
[27]
In Stock
SSA561B702B
BLOCK,TERMINAL
[28]
Contact
RYD129A294
HOLDER ASSY,DISP(U)
Contact
[28-31]

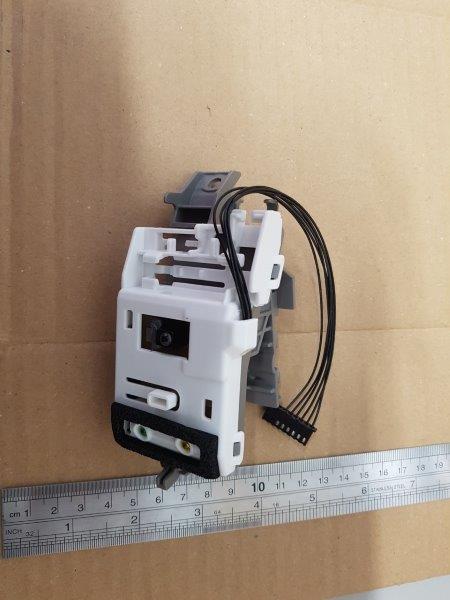

In Stock
RYD503A056
DISPLAY ASSY
[29]
Contact
RYD129A291
HOLDER,DISPLAY(L)
Contact
[30]
In Stock
RYD505A137
PWB‚ ASSY(DISPLAY)
[31]
Contact
RYD504A139
HARNESS ASSY
Contact
[32]
In Stock
RYD129A276
HOLDER,WF
[32-35]
In Stock
RYD503A057
WF ASSY(SPARE)
Notes: ONLY FOR SUPPLYING PARTS
[33]
Contact
RYD133A088
SHEET,PC
Contact
[34]
In Stock
RKZ505A005
PWB‚ ASSY(WF)
[35]
Contact
RYD504A140
HARNESS ASSY
Contact
[36]
In Stock
RYA941F001
SPRING
[37]
In Stock
RYD142A167
LID,CONTROL
[37-38]
In Stock
RYD142A169
LID‚ ASSY,CONTROL
[38]
Contact
RYD011G050
LABEL,WIRING
Contact
[39]
Contact
RYD129A277
COVER(TB)
Contact
[39-40]
In Stock
RYD129A293
COVER ASSY(TB)
[40]
Contact
RYD132A041
COVER,PLATE(TB)
Contact
[41]
In Stock
RYD032A023
HOLDER(REMO-CON)
[42]
In Stock
RLH502A001
REMOTE CONTROL
[43]
In Stock
RKT437A801D
FILTER,CLEAN(BIO)
[44]
Contact
RYD012A419
MANUAL,INSTRUCTION
Contact
[45]
Contact
RYG012A004
MANUAL,INSTR(WF)
Contact
[46]
Contact
RYD012A418
SHEET,INSTALLATION
Contact
[47]
Contact
RYG012A002
SHEET,INSTALLATION
Contact
