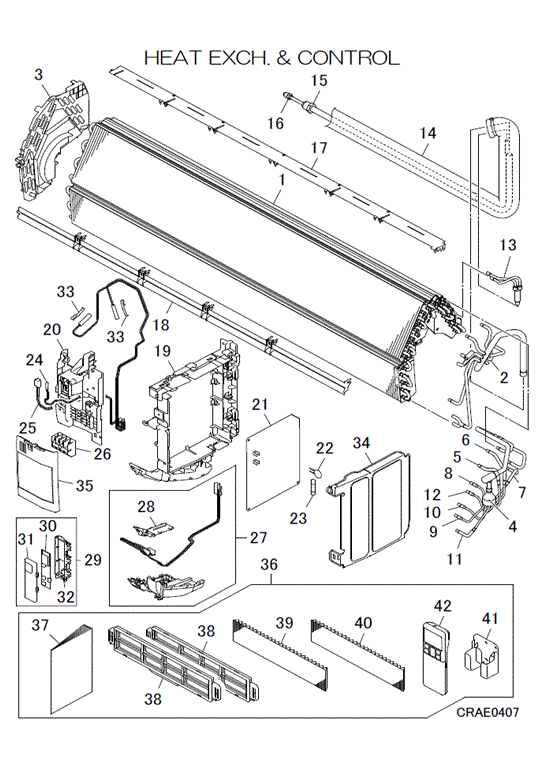

DXK21ZRA-WF1 HEAT EXCH. AND CONTROL

DXK21ZRA-WF1 HEAT EXCH. AND CONTROL

DXK21ZRA-WF1 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-13] In Stock
RLD301A002D
HEAT EXCH ASSY (AIR)
[2] Contact
RLD315D001B
HEADER ASSY
Contact
[3] In Stock
RLD129A003
BRACKET(L)
[4] Contact
RSA315A006
DISTRIBUTOR
Contact
[4-12] Contact
RLD315A003
DISTRIBUTOR ASSY
Contact
[5] Contact
RLD321A023
PIPE ASSY
Contact
Notes: D2.8xD4.0 L100
[6] Contact
RLD321A024
PIPE ASSY
Contact
Notes: D2.8xD4.0 L100
[7] Contact
RLD321A025
PIPE ASSY
Contact
Notes: D2.8xD4.0 L100
[8] Contact
RLD315B001
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[9] Contact
RLD315B002
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[10] Contact
RLD315B003
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[11] Contact
RLD321A026
PIPE ASSY
Contact
Notes: D2.8xD4.0 L100
[12] Contact
RLD315B004
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[13] Contact
RLD321A051
PIPE ASSY
Contact
[14-16] In Stock
RLD321A001F
PIPE ASSY
[15] In Stock
SSA323F012B
UNION
Notes: FOR GAS Show Image
SSA323F012B
[16] Contact
SSA323F091A
UNION (SLD)
Contact
Notes: FOR LIQ.
[17] In Stock
RLD129A004
PLATE,BAFFLE
[18] Contact
RLD129A005
SEAL(B)
Contact
[19] In Stock
PHA142A401
BOX ASSY,CONTROL
[20] Contact
RLD129A022
COVER,BEND
Contact
[21-23] In Stock
RLA505A001WF
PWB ASSY
[22] In Stock
SSA555B050C
VARISTOR
Notes: Z, Z1 Show Image
SSA555B050C
[23] In Stock
SSA564A132
FUSE(CURRENT)
Notes: F 3.15A, 3.15A Show Image
SSA564A132
[24] In Stock
SSA551A223L
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), includes room temp & 2x heat exchanger coil sensors Show Image
SSA551A223L
[25] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[26] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T1, T2 Show Image
SSA561B702B
[27] In Stock
RLD503A001
DISPLAY ASSY
Notes: DOES NOT INCLUDE FRONT FACIA - INCLUDES RECEIVER BOARD HOUSING AND HARNESS Show Image
RLD503A001
[28] In Stock
RLD505A001
PWB ASSY(DISPLAY)
Notes: Display/Receiver board with wiring harness Show Image
RLD505A001
[29-32] In Stock
RLF503A202
WF ASSY (SPARE)
Notes: ONLY FOR SUPPLY PARTS
[30] In Stock
RLH505A002
PWB ASSY (WIFI)
Notes: WIFI PWB. (NOT MAIN PWB). Show Image
RLH505A002
[31] In Stock
RLF129A229
HOLDER, WF (U)
[32] In Stock
RLF129A230
HOLDER, WF (L)
[33] In Stock
PSA941F001
SPRING LEAF
Notes: 1pc ONLY Show Image
PSA941F001
[34] In Stock
RLD142A001
LID,CONTROL
[35] In Stock
RLD132A003N
LID ASSY (TERMINAL)
[38] In Stock
RKX129A014
HOLDER,FILTER
Notes: FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY
[39] In Stock
RMA437A007
FILTER, CLEAN
Notes: PM 2.5 FILTER - blue colour filter
[40] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image
RKT437A801D
[41] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
RLA032A700
[42] In Stock
RLA502A704A
CONTROL ASSY, REMOTE
Show Image
RLA502A704A
