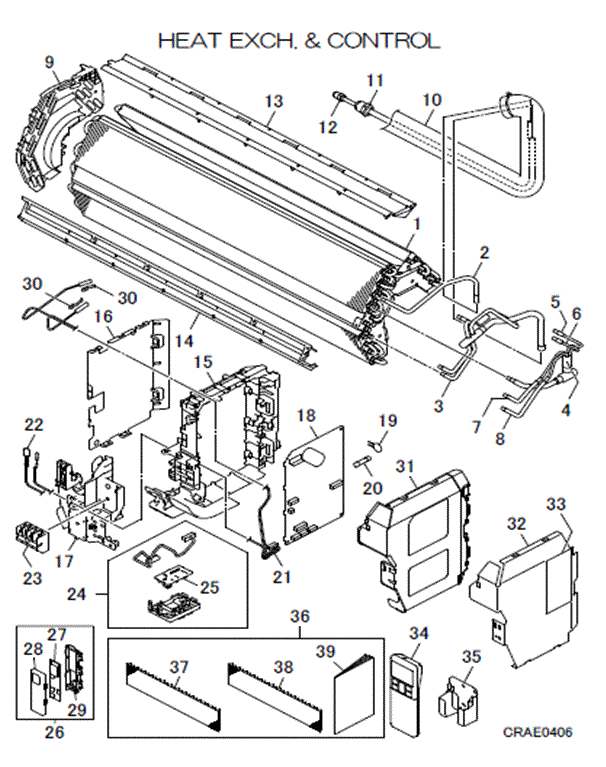

DXK18ZSA-WF1 HEAT EXCH AND CONTROL

DXK18ZSA-WF1 HEAT EXCH AND CONTROL

DXK18ZSA-WF1 HEAT EXCH AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] In Stock
RLF301A104J
HEAT EXCH ASSY (AIR)
[2] Contact
RLF321A015
PIPE
Contact
[3] Contact
RLF315D100
HEADER ASSY
Contact
[4] Contact
RKX315A003
DISTRIBUTOR
Contact
Notes: !
[4-8] Contact
RLF315A100A
DISTRIBUTOR ASSY
Contact
[5] Contact
RLF315B001
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[6] Contact
RLF315B002
CAPILLARY
Contact
Notes: D2.8xD4.0 L100
[7] Contact
RLF321A056
PIPE ASSY
Contact
Notes: D2.8xD4.0 L100
[8] Contact
RLF321A058
PIPE ASSY
Contact
Notes: D2.8xD4.0 L100
[9] Contact
RLF129A119
BRACKET ASSY(L)
Contact
[10-12] Contact
RLF321A001A
PIPE ASSY
Contact
[11] Contact
SSA323F091B
UNION (SLD)
Contact
Notes: FOR GAS
[12] Contact
SSA323F091A
UNION (SLD)
Contact
Notes: FOR LIQ.
[13] In Stock
RLF129A105
PLATE,BAFFLE
[14] In Stock
RLF129A106
SEAL
[15] In Stock
RLF142A101
BOX,CONTROL
[15-16] In Stock
RLF142A100
BOX ASSY CONTROL
Show Image
RLF142A100
[16] In Stock
RLF132A100
COVER,CONTROL
[17] Contact
RLF129A122
COVER, BEND
Contact
[18-20] In Stock
RLF505A102LP
PWB ASSY
[19] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[20] In Stock
SSA564A132
FUSE(CURRENT)
Notes: F1 3.15A, 3.15A Show Image
SSA564A132
[21] In Stock
SSA551A223AF
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), 1x Room temp sensor & 2x Heat exchanger sensors
[22] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[23] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: TB1, T2 Show Image
SSA561B702B
[24] In Stock
RLF503A100
PWB, DISPLAY ASSY
Notes: COMES WITH HARNESS AND CASING Show Image
RLF503A100
[25] In Stock
RLF505A101
PWB, DISPLAY
Notes: BOARD ONLY - DOES NOT INCLUDE HARNESS - FOR HARNESS AND RECEVER = RLF503A100 Show Image
RLF505A101
[26-29] In Stock
RLF503A202
WF ASSY (SPARE)
Notes: ONLY FOR SUPPLY PARTS
[27] In Stock
RLH505A002
PWB ASSY (WIFI)
Notes: WIFI PWB. (NOT MAIN PWB). Show Image
RLH505A002
[28] In Stock
RLF129A229
HOLDER, WF (U)
[29] In Stock
RLF129A230
HOLDER, WF (L)
[30] In Stock
PSA941F001
SPRING LEAF
Notes: 1pc ONLY Show Image
PSA941F001
[31] In Stock
RLF132A104
LID,CONTROL
[31-33] In Stock
RLF142A103J
LID ASSY, CONTROL
[32] In Stock
RLF142A105
LID,CONTROL
[33] Contact
RLF011G100L
LABEL, WIRING
Contact
[34] In Stock
RLA502A704A
CONTROL ASSY, REMOTE
Show Image
RLA502A704A
[35] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
RLA032A700
[37] In Stock
RMA437A007
FILTER, CLEAN
Notes: PM 2.5 FILTER - blue colour filter
[38] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER. For ZTLA models the optional Photocatalytic filter is RKT437A005. Show Image
RKT437A801D
