DXK18Z3-S HEAT EXCH. AND CONTROL

DXK18Z3-S HEAT EXCH. AND CONTROL

Available Parts

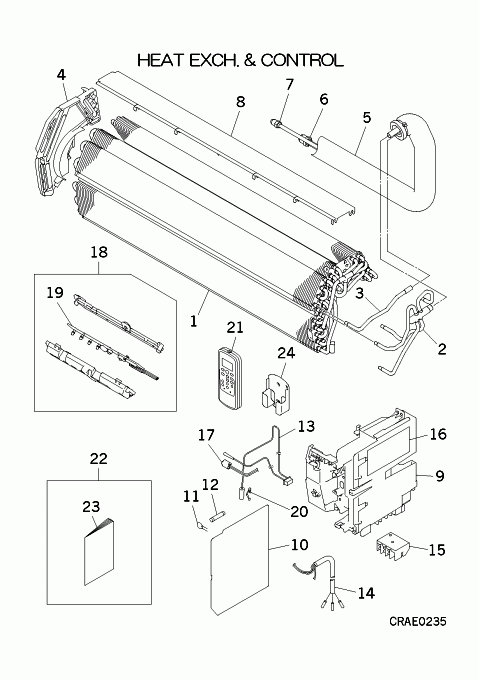

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-8] RKX301A011S HEAT EXCH In Stock
  • [2] RKX315D007 HEADER ASSY Contact Notes: !   Contact
  • [3] RKX321A038 PIPE Contact Notes: !   Contact
  • [4] RKX129A016 BRACKET ASSY(L) Contact Notes: !   Contact
  • [5-7] RKX321A001B PIPE ASSY Contact   Contact
  • [6] SSA323F088B UNION(SLD) In Stock Notes: FOR GAS, FOR GAS
  • [7] SSA323F088A UNION(SLD) In Stock Notes: FOR LIQ., FOR LIQ.
  • [8] RKX129A001 PLATE ASSY,BAFFLE Contact   Contact
  • [9] RKX142A001 BOX,CONTROL In Stock Substitute: RKX142A001A Show Image

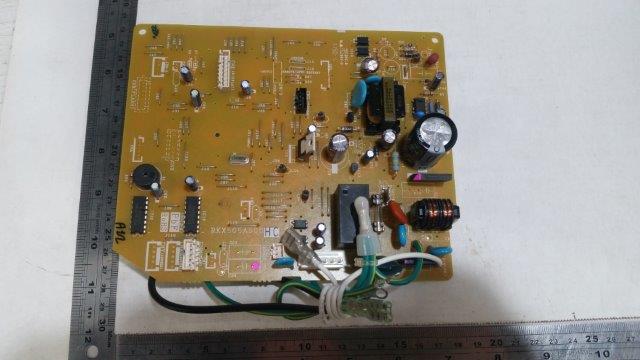

  • [10-12] RKX505A500HC PWB ASSY In Stock Notes: INDOOR MAIN PC BOARD Show Image
  • [11] SSA555B050C VARISTOR In Stock Notes: Z1, Z1 Show Image
  • [12] SSA564A132 FUSE(CURRENT) In Stock Notes: 3.15A, 3.15A Show Image
  • [13] SSA551A163L SENSOR ASSY In Stock Notes: SENSOR INCL.(ROOM TEMP.AND HEAT EXCHANGE TEMP)
  • [14] RKV504A500F HARNESS ASSY(POWER Contact   Contact
  • [15] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [16] RKX011G602 LABEL,WIRING Contact   Contact
  • [17] SSA551B017 SENSOR(HUMI In Stock Notes: SENSOR(HUMIDITY), HS
  • [18] RKX503A301A DISPLAY ASSY In Stock
  • [19] RKX505A007A PWB ASSY(DISPLAY) In Stock Show Image
  • [20] RKJ941F001 SPRING LEAF In Stock Substitute: PSA941F001 Notes: FOR THI-R Show Image
  • [21] RKX502A007P CONTROL ASSY, REMOTE In Stock Show Image
  • [22] RKX008A005N PARTS,STANDARD Contact   Contact
  • [23] RKX012A315A MANUAL,INSTRUCTION Contact   Contact
  • [24] RKN032A002B HOLDER In Stock Substitute: RKN032A002C Show Image
  • [25] RKX011F003AH LABEL,MODEL NAME Contact   Contact
SKU: DXK18Z3-S HEAT EXCH. AND CONTROL Category:
