DXK12ZSA-W PANEL AND FAN ASSY

DXK12ZSA-W PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

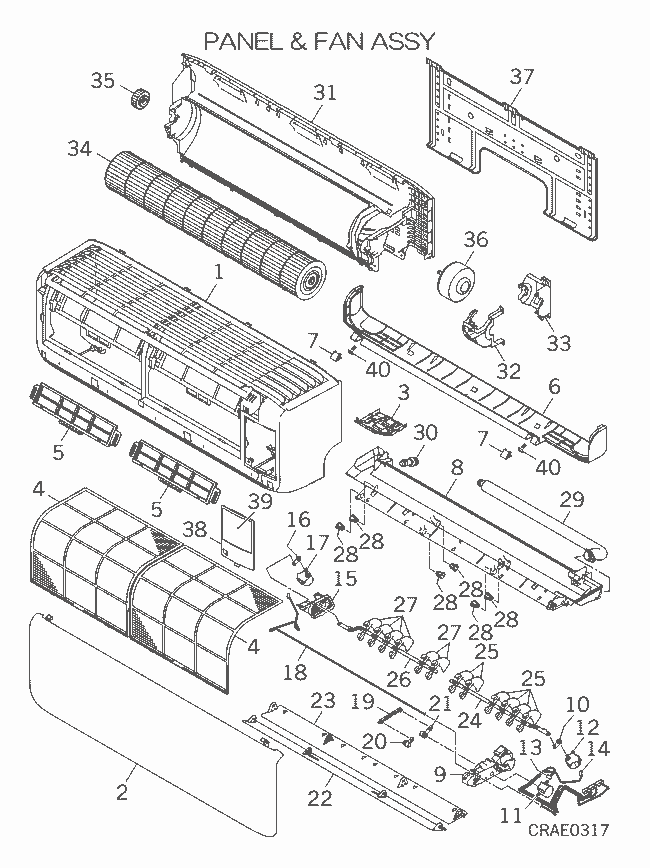

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RLF122A102F
PANEL ASSY, FRONT
[1-5] In Stock
RLF102A100D
PANEL ASSY, FRONT
Notes: includes parts 1,2,3,4,5
[2] In Stock
RLF435A101C
PANEL ASSY,AIR IN
Notes: AIR INLET PANEL / FILTER COVER for HINGE/CLIPS: Left = RLF129A109 / Right = RLF129A108
[3] In Stock
RLF133A100C
PLATE ASSY, ORNAMENT
Notes: MANUAL ON / OFF BUTTON WITH GREY & WHITE PIECES OF PLASTIC Show Image
RLF133A100C
[4] In Stock
RLF437A100
FILTER,AIR
Notes: W342.5xH346.5(t5), 1pc only. LARGER/DUST FILTER. Sold Individually./ LENGTH 40CM
[5] In Stock
RKX129A014
HOLDER,FILTER
Notes: 1pc ONLY, FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY
[6] In Stock
RLF129A100A
PANEL, BOTTOM
Notes: LENGTH 85.5CM
[6-7] In Stock
RLF102A101H
PANEL ASSY, BOTTOM
[7] In Stock
RLF129A110B
CAP
Notes: LENGTH 2.1CM Show Image
RLF129A110B
[8-30] In Stock
RLF435A104B
GRILLE OUT, ASSY
Notes: INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS
[9] In Stock
RLF129A113
BRACKET,MOTOR(R)
RLF129A113
[9-14] In Stock
RLF129A111
BRACKET ASSY(R)
RLF129A111
[10] In Stock
RKW144A204
CRANK(C)
RKW144A204
[11] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP, Louver/Flap/Stepping motor Show Image
SSA512T158
[12] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT/RIGHT), Louver/Flap/Stepping motor Show Image
SSA512T158
[13] In Stock
RSA504A031D
HARNESS ASSY
Notes: FOR FLAP MOTOR, UP/DOWN FLAP WIRING HARNESS Show Image
RSA504A031D
[14] In Stock
RSA504A031F
HARNESS ASSY
Notes: FOR LOUVER MOTOR(RIGHT), RIGHT SIDE LOUVER MOTOR WIRING HARNESS Show Image
RSA504A031F
[15] In Stock
RLF129A114
BRACKET,MOTOR(L)
RLF129A114
[15-18] In Stock
RLF129A112
BRACKET ASSY(L)
RLF129A112
[16] In Stock
RKW144A204
CRANK(C)
RKW144A204
[17] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT/RIGHT), Louver/Flap/Stepping motor Show Image
SSA512T158
[18] In Stock
RSA504A031G
HARNESS ASSY
Notes: FOR LOUVER MOTOR(LEFT), LEFT SIDE WIRING HARNESS FOR LOUVER MOTOR Show Image
RSA504A031G
[19] In Stock
RLF144A101
LINK
Notes: LENGTH 6.5CM Show Image
RLF144A101
[19-21] In Stock
RLF144A100
LINK ASSY
Notes: LENGTH 9.7CM Show Image
RLF144A100
[20] In Stock
RLF144A102
CRANK U
RLF144A102
[21] In Stock
RLF144A103
CRANK L
Notes: LENGTH 3CM Show Image
RLF144A103
[22] In Stock
RLF436A100A
FLAP(U)
Notes: UPPER, UPPER HORIZONTAL FLAP / LENGTH 66CM
[23] Out of Stock
RLF436A101A
FLAP(L)
Notes: LOWER, LOWER HORIZONTAL FLAP
[24] Contact
RLF129A115
PLATE,CONNECTING(R)
Contact
[24-25] In Stock
RLF436A102
LOUVER ASSY (RIGHT)
Notes: Includes 6 louver blades/fins and connecting rod - RIGHT side only Show Image
RLF436A102
[25] In Stock
RLF436A104
LOUVER
RLF436A104
[26] Contact
RLF129A116
PLATE,CONNECTING(L)
Contact
[26-27] In Stock
RLF436A103
LOUVER ASSY (LEFT)
Notes: Includes 6 louver blades/fins and connecting rod - LEFT side only Show Image
RLF436A103
[27] In Stock
RLF436A104
LOUVER
RLF436A104
[28] Out of Stock
RLD129A021
SHAFT
Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image
RLD129A021
[29] In Stock
SSA423A114
HOSE,DRAIN
[30] In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray.
[31] In Stock
RLF111A100C
BASE ASSY
[32] In Stock
RLF129A118
CASE ASSY(U)
Notes: Upper Fan motor housing Show Image
RLF129A118
[33] In Stock
RLF129A102
CASE ASSY(L)
Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing
[34] In Stock
SSA431G053
IMPELLER
Notes: BARRELL FAN Show Image
SSA431G053
[35] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[36] In Stock
SSA512T126A
MOTOR DC
Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image
SSA512T126A
[37] In Stock
RLF032A100
PLATE,INSTALLATION
Notes: MOUNTING/INSTALLATION/BACKING PLATE
[38-39] In Stock
RLF132A101
LID ASSY(TERMINAL)
Notes: LENGTH 16.5CM. PART IS COLOUR BLACK. Show Image
RLF132A101
[39] Contact
RSA011H047
LABEL,NOTICE
Contact
[40] In Stock
SSA913A007
SCREW
Notes: 4X12, 1pc ONLY Show Image
SSA913A007
