DXK12ZSA-W HEAT EXCH. AND CONTROL

DXK12ZSA-W HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

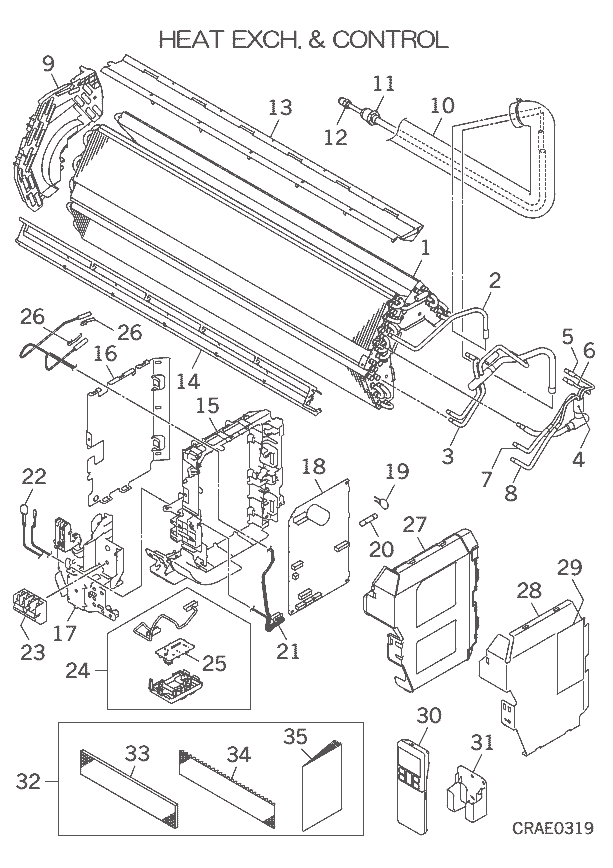

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Out of Stock
RLF301A104S
HEAT EXCH ASSY(AIR)
Notes: Indoor Heat exchanger coil assembly
[2] Contact
RLF321A015
PIPE
Contact
[3] Contact
RLF315D100
HEADER ASSY
Contact
[4] Contact
RKX315A003
DISTRIBUTOR¿
Contact
Notes: !¿
[4-8] Contact
RLF315A100
DISTRIBUTOR ASSY
Contact
[5] Contact
RLF315B001
CAPILLARY
Contact
Notes: f2.8xf4.0 L100
[6] Contact
RLF315B002
CAPILLARY
Contact
Notes: f2.8xf4.0 L100
[7] Contact
RLF321A016
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100
[8] Contact
RLF321A017
PIPE ASSY
Contact
Notes: f2.8xf4.0 L100
[9] Contact
RLF129A119
BRACKET ASSY(L)
Contact
[10-12] Contact
RLF321A001
PIPE ASSY
Contact
[11] In Stock
SSA323F088
UNION(SLD)¿
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[12] In Stock
SSA323F088A
UNION(SLD)¿
Notes: FOR LIQ., FOR LIQ.¿/ LENGTH 2.3CM Show Image
SSA323F088A
[13] Contact
RLF129A105
PLATE,BAFFLE
Contact
[14] In Stock
RLF129A106
SEAL
[15] Contact
RLF142A101
BOX,CONTROL
Contact
[15-16] In Stock
RLF142A100
BOX ASSY CONTROL
RLF142A100
[16] Contact
RLF132A100
COVER,CONTROL
Contact
[17] Contact
RLF129A107
COVER,BEND
Contact
[18-20] In Stock
RLF505A102AC
PWB ASSY
Notes: INDOOR MAIN BOARD Show Image
RLF505A102AC
[19] In Stock
SSA555B050C
VARISTOR¿
Notes: Z1, Z1¿ Show Image
SSA555B050C
[20] In Stock
SSA564A132
FUSE(CURRENT)¿
Notes: 3.15A Show Image
SSA564A132
[21] In Stock
SSA551A223P
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), 3 SENSORS. INCL.SENSOR(ROOM TEMP.& 2xHEAT EXCH.) Show Image
SSA551A223P
[22] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[23] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[24] In Stock
RLF503A100
PWB, DISPLAY ASSY
Notes: COMES WITH HARNESS AND CASING Show Image
RLF503A100
[25] In Stock
RLF505A101
PWB, DISPLAY
Notes: BOARD ONLY - DOES NOT INCLUDE HARNESS - FOR HARNESS AND RECEVER = RLF503A100 Show Image
RLF505A101
[26] In Stock
RKJ941F001
SPRING LEAF
RKJ941F001
[27] Contact
RLF132A104
LID,CONTROL
Contact
[27-29] In Stock
RLF142A103A
LID ASSY,CONTROL
[28] Contact
RLF142A105
LID,CONTROL
Contact
[29] Contact
RLF011G100D
LABEL,WIRING
Contact
[30] In Stock
RLA502A720
REMOTE CONTROL
Notes: REMOTE CONTROL HOLDER IS PART NUMBER RLA032A700. Does not come with holder.
[31] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: REMOTE CONTROL HOLDER/CRADLE Show Image
RLA032A700
[32] Contact
RLF008A100D
PARTS,STANDARD
Contact
[33] In Stock
RKT437A005
FILTER,CLEAN
Notes: 1pc ONLY, PHOTO-CATALYTIC / DEODORIZING FILTER - triangular honeycomb shape
[34] In Stock
RKT437A801D
FILTER,CLEAN(BIO)
Notes: ALLERGEN FILTER. For ZT models the optional Photocatalytic filter is RKT437A005. Show Image
RKT437A801D
[35] Contact
RLF012A104A
MANUAL,INSTRUCTION
Contact
[36] Contact
RLF011F101AB
LABEL,MODEL NAME
Contact
