DXK12ZMA-S PANEL AND FAN ASSY

Name: DXK12ZMA-S PANEL AND FAN ASSY
SKU: DXK12ZMA-S PANEL AND FAN ASSY
Availability: InStock

DXK12ZMA-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLA122A002

PANEL ASSY, FRONT

[1-7] In Stock

RLA102A002J

PANEL ASSY,FRONT

Notes: includes parts 1,2,3,4,5,6,7

[2] In Stock

RLA435A003

PANEL,AIR INLET

Notes: FILTER COVER

[3] In Stock

RLA437A001

FILTER, AIR

Notes: 1pc ONLY, RETURN AIR/DUST FILTER - SOLD INDIVIDUALLY - UNIT HAS 2 Show Image

[4] In Stock

RLA129A017

CAP

Show Image

[5] In Stock

RLA133A001

PLATE,ORNAMENT

Notes: MANUAL ON/OFF BUTTON COVER Show Image

[6] In Stock

RKX129A014

HOLDER,FILTER

Notes: 1pc ONLY, FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY

[7] In Stock

RLA011G001B

LABEL,WIRING

Show Image

[8-26] In Stock

RLA435A001AK

GRILLE AIR OUT ASSY

Notes: Includes Drip/Condensate tray All louvers, louver wiring harness‚™s, louver motors & Drain hose

[9] In Stock

RLA436A001

FLAP(A)

Notes: UPPER, Width 50mm approx. UPPER HORIZONTAL FLAP

[10] In Stock

RLA436A002AA

FLAP(B)

Notes: LOWER, Width 70mm Approx. LOWER HORIZONTAL FLAP Show Image

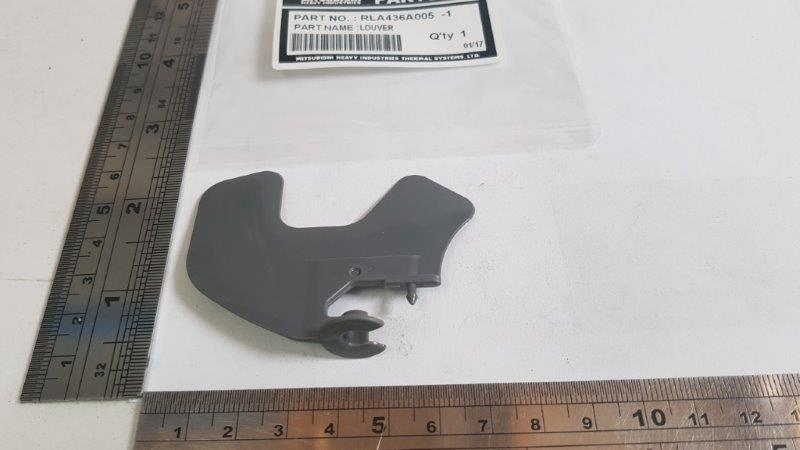

[11] In Stock

RLA436A005

LOUVER

Notes: SEE LOUVER ASSY, ****ONE LOUVER ONLY**** Show Image

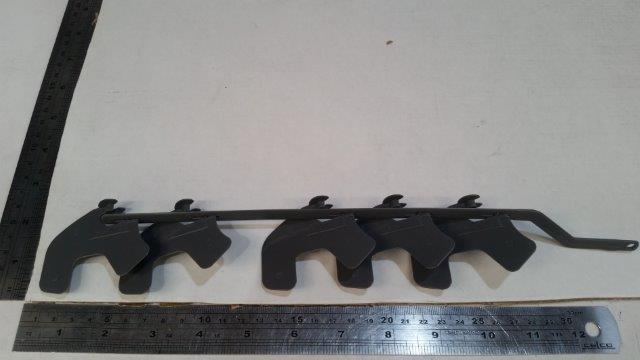

[11-12] In Stock

RLA436A003

LOUVER ASSY(R)

Notes: Right side Louver assembly - 5 Vertical blades & 1 connecting rod/strip Show Image

[12] In Stock

RLA129A008

PLATE,CONNECTING(R

Show Image

[13] In Stock

RLA436A005

LOUVER

Notes: SEE LOUVER ASSY, ****ONE LOUVER ONLY**** Show Image

[13-14] In Stock

RLA436A004

LOUVER ASSY(L)

Notes: Left side Louver assembly - 5 Vertical blades & 1 connecting stip/rod Show Image

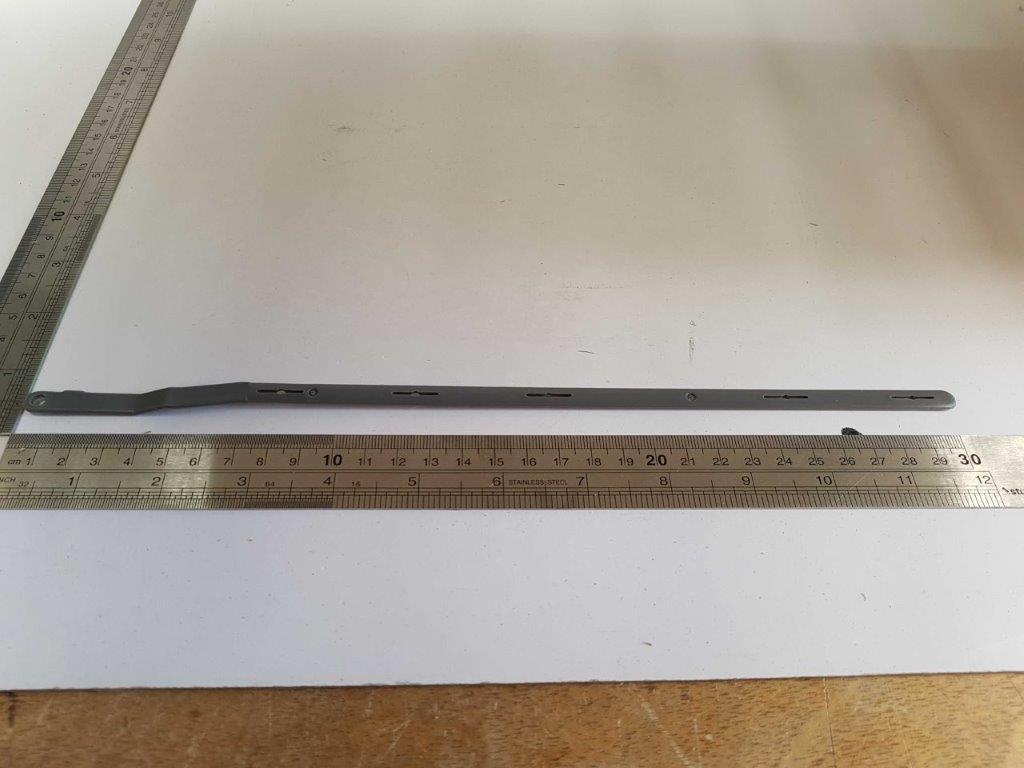

[14] In Stock

RLA129A009

PLATE,CONNECTING(L

Notes: LEFT SIDE CONNECTING PLATE / ROD/ LENGTH 31CM Show Image

[15] In Stock

RKW935C200

COLLAR

Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***

[16] In Stock

RLA129A013

BRACKET,MOTOR(L)

Notes: HOUSING FOR STEPPING MOTOR - DOES NOT INLCUDE STEPPING MOTOR Show Image

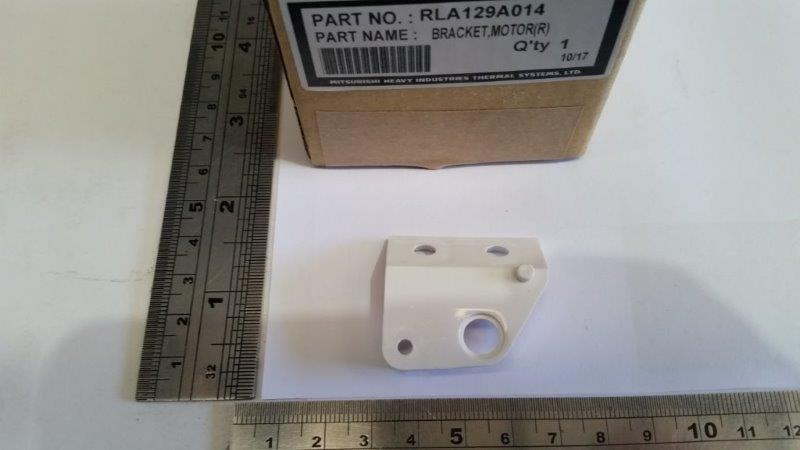

[17] In Stock

RLA129A014

BRACKET,MOTOR(R)

Show Image

[18] In Stock

RKY144A004

CRANK(C)

Show Image

[19] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR LOUVER(LEFT/RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

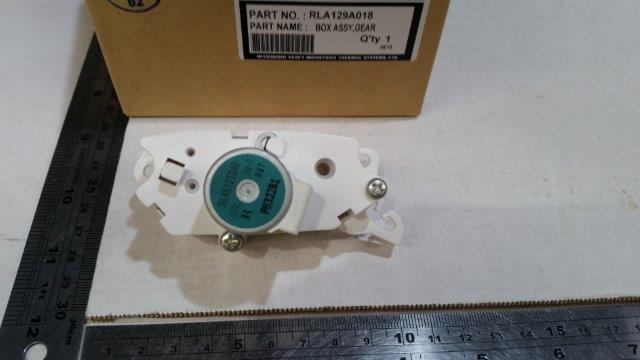

[20-21] In Stock

RLA129A018

BOX ASSY,GEAR

Notes: UP/DOWN HORIZONTAL LOUVER MOTOR AND PLASTIC HOUSING (includes motor) Show Image

[21] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR FLAP, Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[22] In Stock

RKS504A100M

HARNESS ASSY

Notes: FOR FLAP MOTOR, WIRING HARNESS FOR HORIZONTAL FLAP MOTOR - UP/DOWN - HORIZONTAL FLAP HARNESS/ LENGTH 26.5CM Show Image

[23] In Stock

RKS504A100N

HARNESS ASSY

Notes: FOR LOUVER MOTOR(LEFT), FOR LOUVER MOTOR (LEFT)

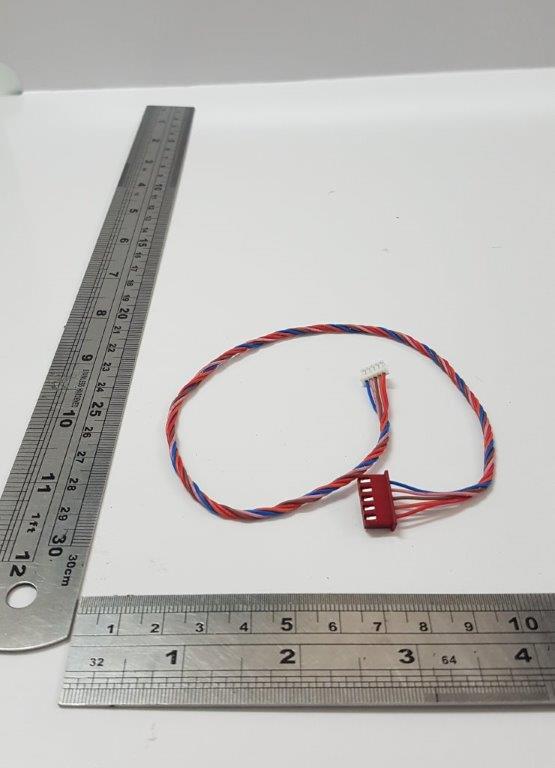

[24] In Stock

RKS504A100P

HARNESS ASSY

Notes: FOR LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR (RIGHT) Show Image

[25] In Stock

SSA423A114

DRAIN HOSE

[26] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray

[27] In Stock

RLA111A001A

BASE ASSY

[28] In Stock

RLA129A001

CASE,MOTOR(U)

Show Image

[29] In Stock

RLA129A002

CASE,MOTOR(L)

Show Image

[30] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[31] In Stock

SSA431G049A

IMPELLER

Notes: FAN BLADE or FAN BARREL or BLOWER WHEEL or SCROLL Show Image

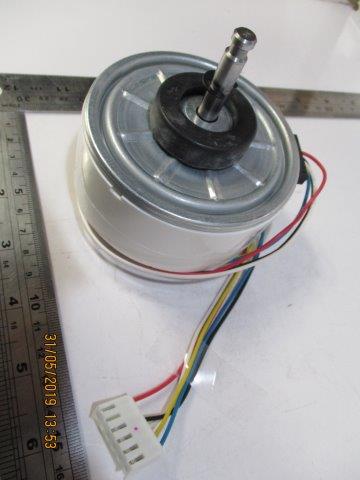

[32] In Stock

SSA512T127B

MOTOR,DC

Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image

[33] In Stock

RLA032A001

PLATE,INSTALLATION

Notes: BACKING PLATE/INSTALLTION PLATE/BRACKET

[34] Contact

RLA129A003

COVER(PIPE)

Contact

[35] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image

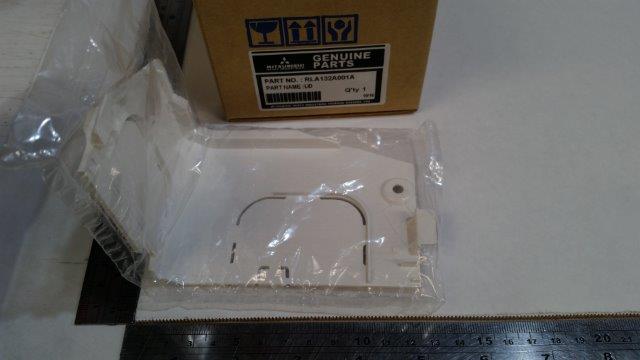

[36] In Stock

RLA132A001A

LID

Notes: RIDE HAND SIDE PLASTIC CORNER PIECE Show Image

SKU: DXK12ZMA-S PANEL AND FAN ASSY Category: Uncategorised
