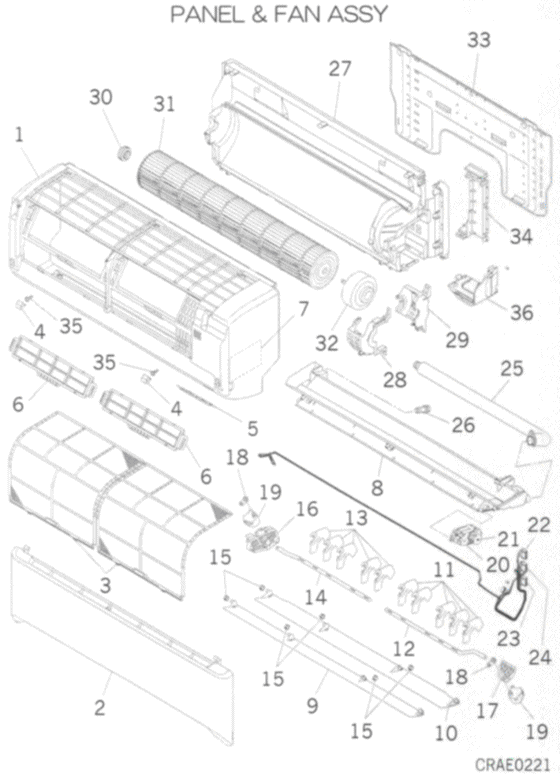

DXK12ZJ-S PANEL AND FAN ASSY

DXK12ZJ-S PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
RLA122A001K
PANEL, FRONT
[1-7] Out of Stock
RLA102A002J
PANEL ASSY,FRONT
[2] In Stock
RLA435A003
PANEL,AIR INLET
[3] In Stock
RLA437A001
FILTER,AIR
Notes: 1pc ONLY, RETURN AIR/DUST FILTER - SOLD INDIVIDUALLY - UNIT HAS 2 Show Image
RLA437A001
[4] In Stock
RLA129A017
CAP
RLA129A017
[5] Out of Stock
RLA133A001
PLATE,ORNAMENT
Notes: MANUAL ON/OFF BUTTON COVER Show Image
RLA133A001
[6] In Stock
RKX129A014
HOLDER,FILTER
Notes: 1pc ONLY, FILTER HOLDER - UNIT HAS 2 - SOLD INDIVIDUALLY
[7] In Stock
RLA011G001B
LABEL,WIRING
RLA011G001B
[8-26] In Stock
RLA435A001AK
GRILLE AIR OUT ASSY
Notes: Includes Drip/Condensate tray All louvers, louver wiring harness‚™s, louver motors & Drain hose
[9] In Stock
RLA436A001
FLAP(A)
Notes: UPPER, Width 50mm approx. UPPER HORIZONTAL FLAP
[10] In Stock
RLA436A002AA
FLAP(B)
Notes: LOWER, Width 70mm Approx. LOWER HORIZONTAL FLAP Show Image
RLA436A002AA
[11] In Stock
RLA436A005
LOUVER
Notes: SEE LOUVER ASSY, ****ONE LOUVER ONLY**** Show Image
RLA436A005
[11-12] In Stock
RLA436A003
LOUVER ASSY(R)
Notes: RIGHT SIDE LOUVER ASSEMBLY - 5 VERTICAL BLADES AND 1 CONNECTING PLATE/ROD - Show Image
RLA436A003
[12] In Stock
RLA129A008
PLATE,CONNECTING(R
RLA129A008
[13] In Stock
RLA436A005
LOUVER
Notes: SEE LOUVER ASSY, ****ONE LOUVER ONLY**** Show Image
RLA436A005
[13-14] In Stock
RLA436A004
LOUVER ASSY(L)
Notes: LEFT SIDE LOUVER ASSEMBLY - 5 VERTICAL BLADES AND 1 CONNECTING PLATE Show Image
RLA436A004
[14] In Stock
RLA129A009
PLATE,CONNECTING(L
Notes: LEFT SIDE CONNECTING PLATE / ROD/ LENGTH 31CM Show Image
RLA129A009
[15] In Stock
RKW935C200
COLLAR
Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[16] In Stock
RLA129A013
BRACKET,MOTOR(L)
Notes: HOUSING FOR STEPPING MOTOR - DOES NOT INLCUDE STEPPING MOTOR Show Image
RLA129A013
[17] In Stock
RLA129A014
BRACKET,MOTOR(R)
RLA129A014
[18] In Stock
RKY144A004
CRANK(C)
RKY144A004
[19] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT/RIGHT) Show Image
SSA512T158
[20-21] In Stock
RLA129A018
BOX ASSY,GEAR
Notes: UP/DOWN HORIZONTAL LOUVER MOTOR AND PLASTIC HOUSING (includes motor) Show Image
RLA129A018
[21] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR LOUVER(LEFT/RIGHT) Show Image
SSA512T158
[22] In Stock
RKS504A100M
HARNESS ASSY
Notes: FOR FLAP MOTOR, WIRING HARNESS FOR HORIZONTAL FLAP MOTOR - UP/DOWN - HORIZONTAL FLAP HARNESS/ LENGTH 26.5CM Show Image
RKS504A100M
[23] In Stock
RKS504A100N
HARNESS ASSY
Notes: FOR LOUVER MOTOR(LEFT), FOR LOUVER MOTOR (LEFT)
[24] In Stock
RKS504A100P
HARNESS ASSY
Notes: FOR LOUVER MOTOR(RIGHT), FOR LOUVER MOTOR (RIGHT) Show Image
RKS504A100P
[25] In Stock
SSA423A114
HOSE,DRAIN
[26] In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray.
[27] In Stock
RLA111A001A
BASE ASSY
[28] In Stock
RLA129A001
CASE,MOTOR(U)
RLA129A001
[29] In Stock
RLA129A002
CASE,MOTOR(L)
RLA129A002
[30] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[31] In Stock
SSA431G049A
IMPELLER
Notes: FAN BLADE or FAN BARREL or BLOWER WHEEL or SCROLL Show Image
SSA431G049A
[32] In Stock
SSA512T127B
MOTOR,DC
Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image
SSA512T127B
[33] In Stock
RLA032A001
PLATE,INSTALLATION
Notes: BACKING PLATE/INSTALLTION PLATE/BRACKET
[34] Contact
RLA129A003
COVER(PIPE)
Contact
[35] In Stock
SSA913A007
SCREW
Notes: 4X12, 1pc ONLY Show Image
SSA913A007
[36] In Stock
RLA132A001A
LID
Notes: RIDE HAND SIDE PLASTIC CORNER PIECE Show Image
RLA132A001A
