Parts List
Key:
Instock.
Nilstock.
Contact MRE.

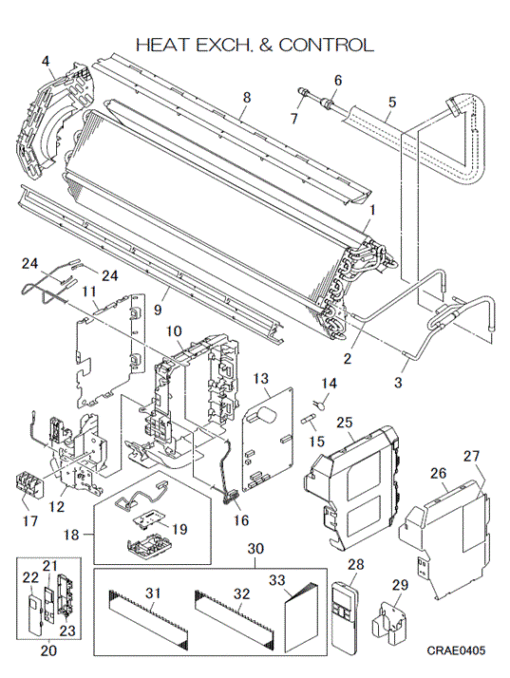

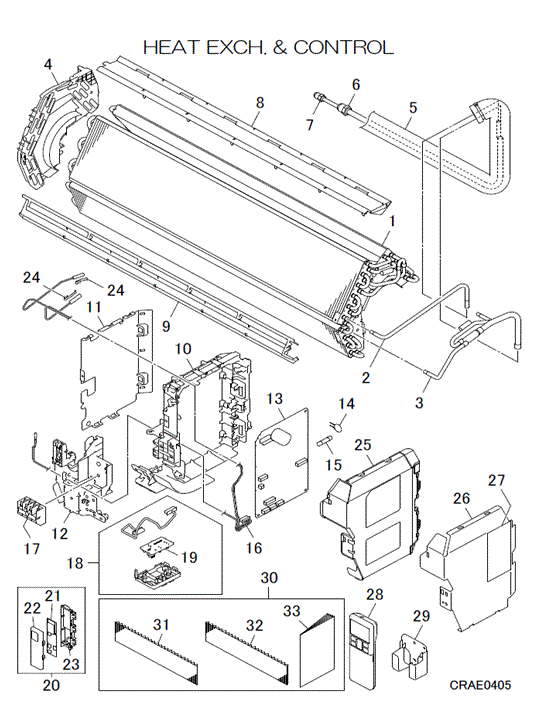

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1-9]
In Stock
RLF301A100S
HEAT EXCH ASSY
Notes: Indoor Heat exchanger coil assembly
[2]
Contact
RLF321A008
PIPE
Contact
[3]
Contact
RLF321A007
PIPE ASSY
Contact
[4]
Contact
RLF129A119
BRACKET ASSY(L)
Contact
[5-7]
Contact
RLF321A001
PIPE ASSY
Contact
[6]
In Stock
SSA323F091
UNION(SLD)
[7]
Contact
SSA323F091A
UNION (SLD)
Contact
[8]
In Stock
RLF129A105
PLATE,BAFFLE
[9]
In Stock
RLF129A106
SEAL
[10]
In Stock
RLF142A101
BOX,CONTROL
[10-11]
In Stock
RLF142A100
BOX ASSY CONTROL
[11]
In Stock
RLF132A100
COVER,CONTROL
[12]
Contact
RLF129A122
COVER, BEND
Contact
[13-15]
In Stock
RLF505A102LL
PWB ASSY
[14]
In Stock
SSA555B050C
VARISTOR
[15]
In Stock
SSA564A132
FUSE(CURRENT)
[16]
In Stock
SSA551A223AF
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)
[17]
In Stock
SSA561B702B
BLOCK,TERMINAL
[18]
In Stock
RLF503A100
PWB, DISPLAY ASSY
Notes: DISPLAY / RECEIVER PWB COMES WITH HARNESS AND CASING Show Image
[19]
Contact
RLF505A101AZ
Contact
[20-22]
In Stock

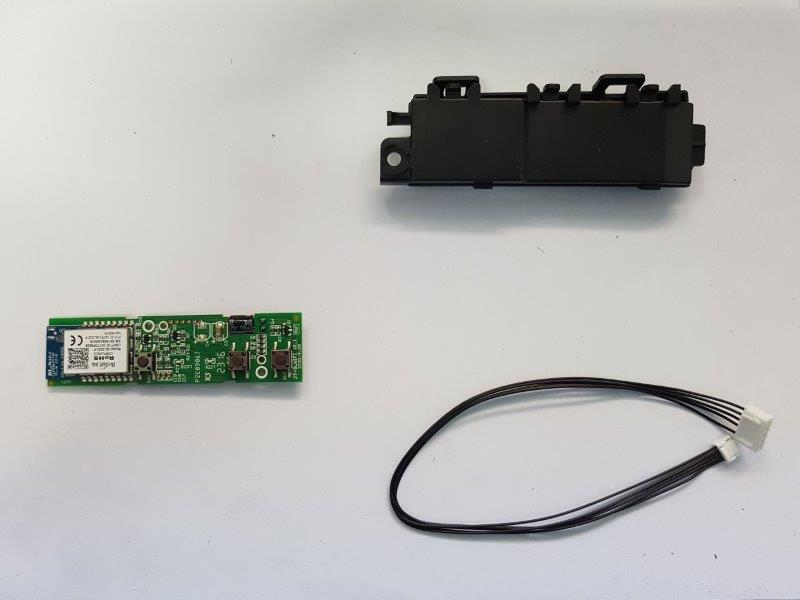

RLF503A202
WF ASSY (SPARE)
Notes: ONLY FOR SUPPLY PARTS, WIFI PWB - Includes Wiring harness Show Image
[21]
In Stock
RLH505A002
PWB (WIFI)
Notes: WIFI PWB. (NOT MAIN PWB). - does NOT include wiring harness. For wiring harness please order assembly Show Image
[22]
In Stock
RLF129A229
HOLDER, WF (U)
[23]
In Stock
RLF129A230
HOLDER, WF (L)
[24]
Contact
PSA941F001
Contact
[25]
In Stock
RLF132A104
LID,CONTROL
[25-27]
In Stock
RLF142A103J
LID ASSY, CONTROL
[26]
In Stock
RLF142A105
LID,CONTROL
[27]
Contact
RLF011G100L
LABEL, WIRING
Contact
[28]
Contact
RLA502A704G
Contact
[29]
In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: Holder/Cradle for Remote control Show Image
[31]
In Stock

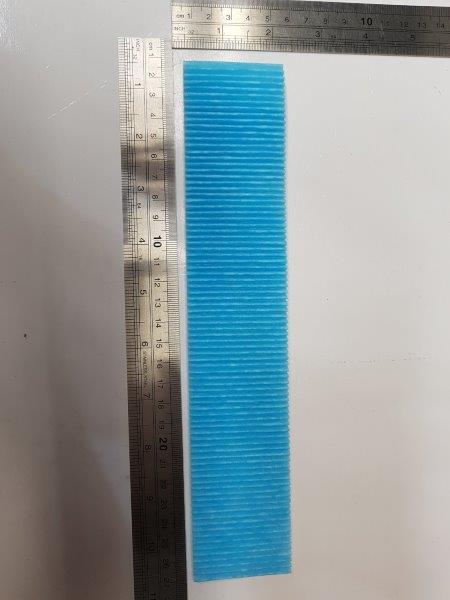

RMA437A007
FILTER, CLEAN
Notes: NOVAshield - PM 2.5 FILTER - blue colour filter - replaces Photocatalytic Filter Show Image
[32]
In Stock
RKT437A801D
FILTER,CLEAN(BIO)
[33]
Contact
RLF012A113D
MANUAL, INSTRUCTION
Contact
[34]
Contact
RLF011F103GA
LABEL, MODEL NAME
Contact
