Parts List
Key:
Instock.
Nilstock.
Contact MRE.
Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
In Stock
RYD122A110
PANEL,FRONT
[1-9]
In Stock
RYD102A067
PANEL‚ ASSY,‚ FRONT
[2]
Contact
RYD129A278
HOLDER,ARM(R)
Contact
[3]
Contact
RYD129A279
HOLDER,ARM(L)
Contact
[4]
Out of Stock
RYD435A123
PANEL ASSY,AIR IN
[5]
Contact
RYD129A280
ARM, INLET(R)
Contact
[6]
Contact
RYD129A281
ARM, INLET(L)
Contact
[7]
Contact
RYD133A082
PLATE ASSY, ORNAMENT
Contact
[7-9]
In Stock

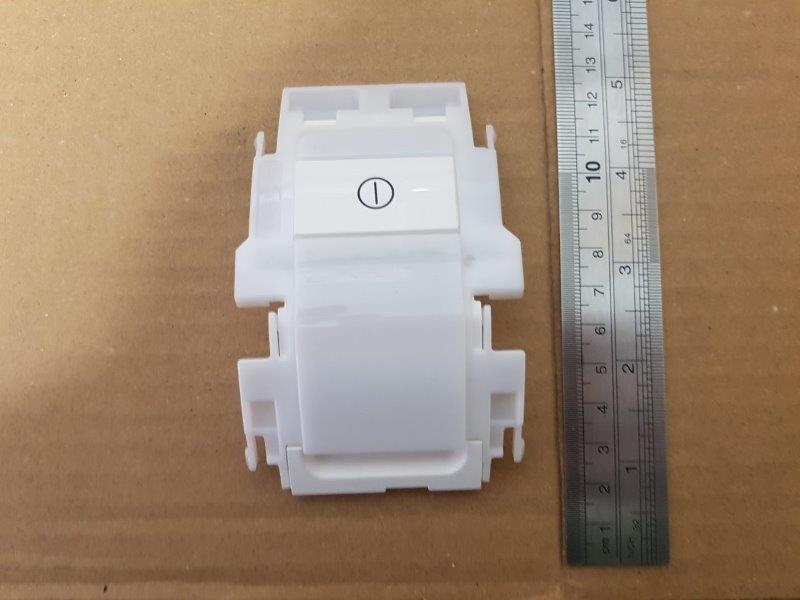

RYD133A086
ORNAMENT ASSY
[8]
Contact
RYD133A083
LENS
Contact
[9]
In Stock
RYD437A042
FILTER,AIR
[10]
Contact
RYD132A042
PANEL, BOTTOM
Contact
[10-12]
Out of Stock
RYD132A044
PANEL ASSY,BOTTOM
[11]
Contact
RYD011H229
LABEL, NOTICE
Contact
[12]
Out of Stock
RYD129A282
CAP
[13]
In Stock
RYD435A126
GRILLE,AIR OUTLET
[13-33]
In Stock
RYD435A089
GRILLE‚ ASSY,‚ AIR‚ OUT
[14]
In Stock
RYD129A269
BRACKET,‚ MOTOR‚ (R‚ )
[14-18]
In Stock
RYD129A255
BRACKET‚ ASSY‚ (R)
[15]
Contact
RYD144A029
CRANK (C)
Contact
[16]
In Stock
SSA512T158
MOTOR, STEPPING
Notes: FOR FLAP,LOUVER(RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image
[17]
In Stock
RYD504A141
HARNESS‚ ASSY
[18]
In Stock
RYD504A137A
HARNESS‚ ASSY
[19]
Contact
RYD129A270
BRACKET, MOTOR (L)
Contact
[19-22]
Contact
RYD129A256
BRACKET ASSY (L)
Contact
[20]
Contact
RYD144A029
CRANK (C)
Contact
[21]
In Stock
SSA512T158
MOTOR, STEPPING
Notes: FOR LOUVER(LEFT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image
[22]
Contact
RYD504A137B
HARNESS ASSY
Contact
Notes: FOR LOUVER MOTOR(LEFT)
[23]
In Stock
RYD144A030
LINK
[23-25]
In Stock
RYD144A033
LINK‚ ASSY
[24]
Contact
RYD144A031
CRANK (U)
Contact
[25]
Contact
RYD144A032
CRANK (L)
Contact
[26]
In Stock
RYD436A057
FLAP(U)
[27]
In Stock
RYD436A058
FLAP(L)
[28]
Contact
RYD129A271
PLATE, CONNECTING (R)
Contact
[28-29]
In Stock
RYD436A063
LOUVER ASSY(R)
[29]
Contact
RYD436A059
LOUVER
Contact
[29-30]
In Stock
RYD436A064
LOUVER ASSY(L)
[30]
Contact
RYD129A272
PLATE, CONNECTING (L)
Contact
[31]
In Stock
RYD129A262
SHAFT
[32]
In Stock
RYD423A009
HOSE,DRAIN
[33]
In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray
[34]
In Stock
RYD111A045
BASE ASSY
[35]
In Stock
RYD129A248
CASE ASSY(U)
[36]
In Stock
RYD129A253
CASE ASSY(L)
[37]
Out of Stock
SSA431G061B
IMPELLER
Substitute: SSA431G065 Notes: Fan Barrel
[38]
In Stock
RYD923C002A
BEARING,PLANE
[39]
In Stock
RYD512T059A
MOTOR,DC
[40]
Out of Stock
RYD032A022
PLATE, INSTALLATION
[41]
Contact
RYD011H230
LABEL, NOTICE
Contact
[42]
Out of Stock
RYD913A007
SCREW, TAP
