Parts List
Key:
Instock.
Nilstock.
Contact MRE.

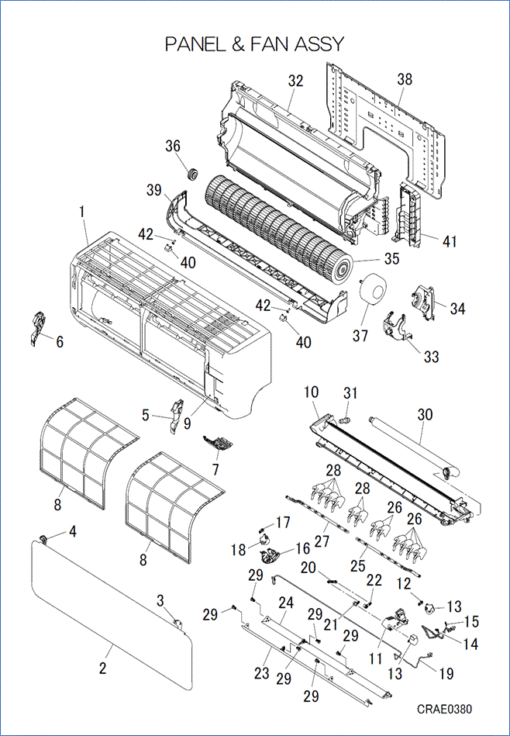

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Contact
RLH122A001
PANEL, FRONT
Contact
[1-9]
Contact
RLH102A001
PANEL ASSY, FRONT
Contact
[2-4]
Contact
RLH435A003
PANEL ASSY, AIR IN
Contact
[3]
Out of Stock
RLH129A023
ARM, INLET (R)
[4]
Out of Stock
RLH129A024
ARM, INLET (L)
[5]
Contact
RLH129A021
HOLDER, ARM (R)
Contact
[6]
Contact
RLH129A022
HOLDER, ARM (L)
Contact
[7]
Contact
RLH133A001
ORNAMENT ASSY
Contact
[8]
Contact

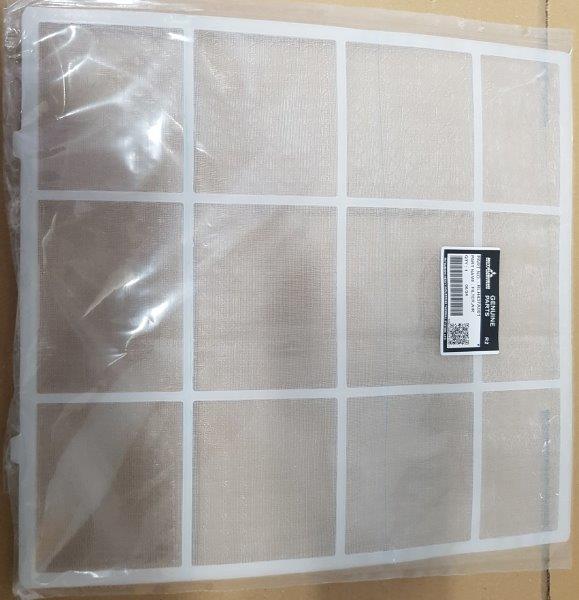

RLH437A001
FILTER, AIR
Contact
[9]
Contact
RSA011H056
LABEL,NOTICE
Contact
[10]
Contact
RLH435A002
GRILLE, AIR OUTLET
Contact
[10-31]
Contact
RLH435A001
GRILLE ASSY, AIR OUT
Contact
[11]
Contact
RLH129A010
BRACKET, MOTOR (R)
Contact
[11-15]
Contact
RLH129A009
BRACKET ASSY (R)
Contact
[12]
In Stock
RLB144A005
CRANK(C)
[13]
In Stock
SSA512T158
MOTOR STEPPING
[14]
In Stock
RSA504A034
HARNESS ASSY
[15]
In Stock
RSA504A034A
HARNESS ASSY
Notes: FOR LOUVER MOTOR(RIGHT)
[16]
Contact
RLH129A012
BRACKET, MOTOR (L)
Contact
[16-19]
Contact
RLH129A011
BRACKET ASSY (L)
Contact
[17]
In Stock
RLB144A005
CRANK(C)
[18]
In Stock
SSA512T158
MOTOR STEPPING
[19]
In Stock
RSA504A034B
HARNESS ASSY
Notes: FOR LOUVER MOTOR(LEFT)
[20]
In Stock
RLH144A501
LINK
[20-22]
In Stock
RLH144A500
LINK ASSY
[21]
In Stock
RLH144A502
CRANK (U)
[22]
In Stock
RLH144A503
CRANK (L)
[23]
In Stock
RLH436A001
FLAP (U)
[24]
In Stock
RLH436A002
FLAP (L)
[25]
Contact
RLH129A013
PLATE, CONNECTING (R)
Contact
[25-26]
In Stock
RLH436A003
LOUVER ASSY (R)
[26]
In Stock
RLH436A004
LOUVER
[27]
In Stock
RLH129A014
PLATE, CONNECTING (L)
[27-28]
In Stock
RLH436A005
LOUVER ASSY (L)
[28]
In Stock
RLH436A004
LOUVER
[29]
Contact
RLG129A010
SHAFT
Contact
[30]
In Stock
SSA423A114
HOSE,DRAIN
[31]
In Stock
SSA326A047
PLUG
Notes: Plug for condensate/drain tray.
[32]
Contact
RLH111A001
BASE ASSY
Contact
[33]
In Stock

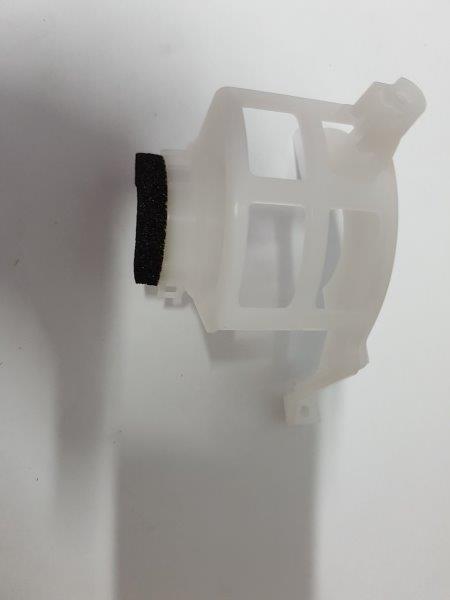

RLH129A001
CASE ASSY (U)
[34]
In Stock
RLH129A003
CASE ASSY (L)
[35]
In Stock
SSA431G061
IMPELLER
[36]
In Stock
SSA923C136Z
BEARING, PLANE
[37]
In Stock
SSA512T163
MOTOR, DC
[38]
Contact
RLH032A001
PLATE, INSTALLATION
Contact
[39-40]
Contact
RLH132A003
PANEL ASSY, BOTTOM
Contact
[40]
Out of Stock
RLH129A025
CAP
[41]
Contact
RLH116A001
BRACKET, CONTROL
Contact
[42]
In Stock
SSA913A007
SCREW
