DXK05Z5-S PANEL AND FAN ASSY

Name: DXK05Z5-S PANEL AND FAN ASSY
SKU: DXK05Z5-S PANEL AND FAN ASSY
Availability: InStock

DXK05Z5-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

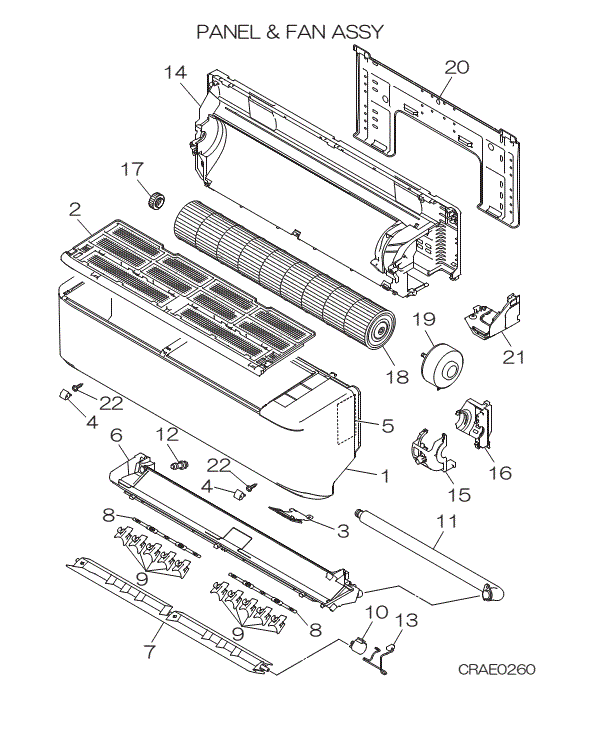

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLC122A002D

PANEL FRONT

[1-5] In Stock

RLC102A001

PANEL ASSY

[2] In Stock

RLC437A001

FILTER,AIR(TOP)

Notes: W623xD183(t14), LENGTH 62CM Show Image

[3] Contact

RLC133A002

PLATE,ORNAMENT

Contact

[4] In Stock

RLA129A017

CAP

Show Image

[5] Contact

RLC011G001

LABEL WIRING

Contact

[6] Contact

RLC435A002

GRILLE,AIR OUTLET

Contact

[6-13] In Stock

RLC435A001D

GRILLE ASSY, AIR OUT

Notes: includes louvers, stepping/louver motors and wiring harnesses

[7] In Stock

RLC436A003B

FLAP ASSY

[8] Contact

RLC129A009

PLATE,CONNECTING

Contact

[8-9] In Stock

RLC436A004

LOUVER ASSY

Notes: VERTICLE LOUVER ASSEMBLY - INCLUDES 5 FINS AND CONNECTING ROD - each side 1 has Louver Assembly

[9] Contact

RLC436A002

LOUVER

Contact

[10] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR LOUVER(LEFT/RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[11] In Stock

SSA423A114

DRAIN HOSE

[12] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray

[13] In Stock

RKS504A100

HARNESS

Notes: FOR RIGHT LOUVER MOTOR, WIRING HARNESS FOR FOR RIGHT LOUVER SET Show Image

[14] In Stock

RLC111A001

BASE ASSY

[15] Contact

RLC129A001

CASE,MOTOR(U)

Contact

[16] Contact

RLC129A002

CASE,MOTOR(L)

Contact

[17] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[18] In Stock

SSA431G051D

IMPELLER

Notes: Fan Barrel

[19] In Stock

SSA512T127B

MOTOR,DC

Notes: FOR IMPELLER, INDOOR FAN MOTOR Show Image

[20] In Stock

RLC032A001

PLATE,INSTALLATION

[21] In Stock

RLC132A001

LID

[22] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image

SKU: DXK05Z5-S PANEL AND FAN ASSY Category: Uncategorised
