DXK05Z5-S HEAT EXCH. AND CONTROL

DXK05Z5-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

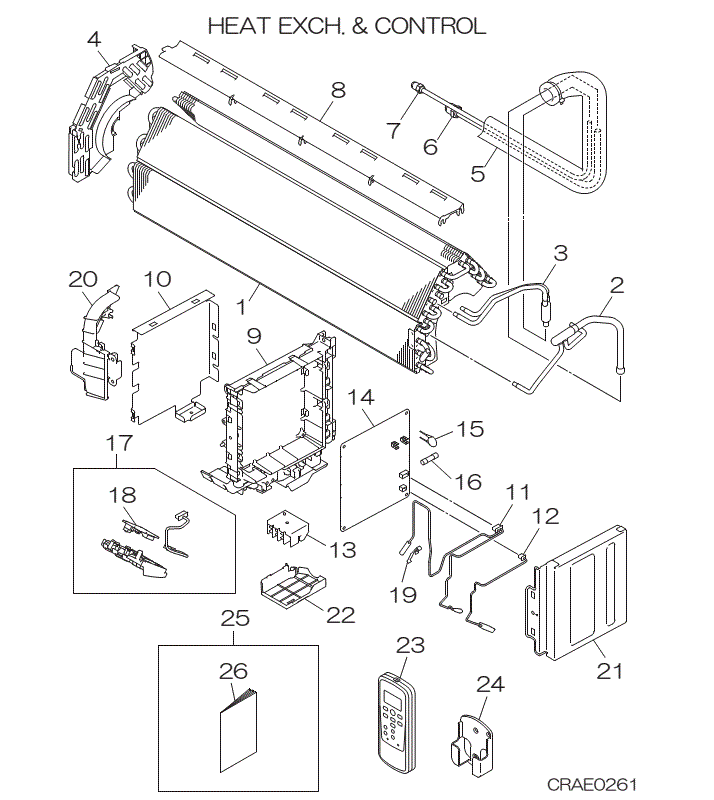

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock
RLC301A001S
HEAT EXCH ASSY (AIR)
[2] Contact
RLC315D003
HEADER ASSY
Contact
[3] Contact
RLC321A038
PIPE ASSY(LIQUID)
Contact
[4] Contact
RLC129A003
BRACKET(L)
Contact
[5-7] Contact
RLC321A041
PIPE ASSY
Contact
[6] In Stock
SSA323F088
UNION(SLD)
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[7] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[8] Contact
RLC129A004
PLATE,BAFFLE
Contact
[9] Contact
RLC142A004
BOX ASSY,CONTROL
Contact
[9-10] Contact
RLC142A003
BOX ASSY,CONTROL
Contact
[10] Contact
RLC132A002
COVER,CONTROL
Contact
[11] In Stock
SSA551A163L
SENSOR ASSY
Notes: SENSOR INCL.(ROOM TEMP.& HEAT EXCHANGE TEMP)/ LENGTH 40CM Show Image
SSA551A163L
[12] In Stock
SSA551B018
SENSOR(HUMIDITY)
[13] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[14-16] In Stock

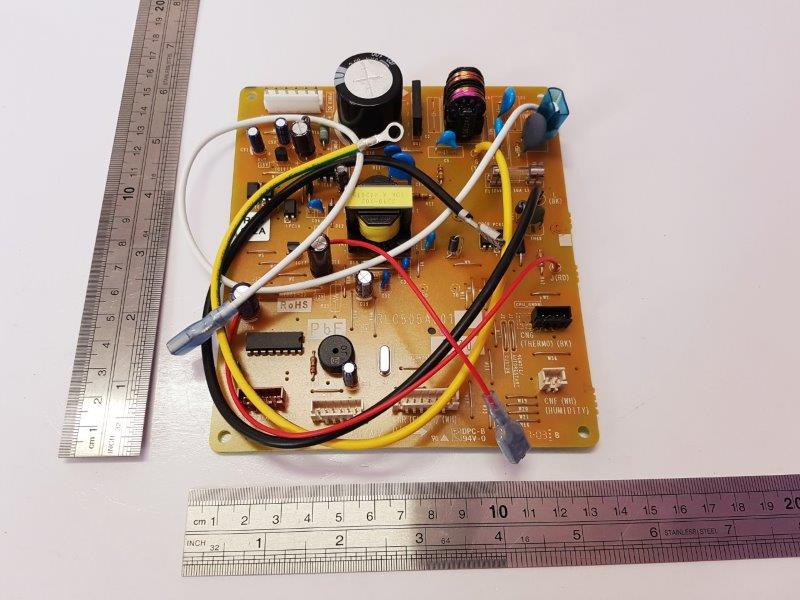

RLC505A001T
PWB ASSY
Notes: INDOOR MAIN PC BOARD
[15] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[16] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[17] In Stock
RLC503A001
DISPLAY ASSY
Notes: RECEIVER / DISPLAY BOARD - INCLUDES HARNESS
[18] In Stock
RLC505A003
PWB ASSY DISPLAY
Notes: NO HARNESS - FOR RECEIVER/DISPLAY BOARD WITH HARNESS = RLC503A001 Show Image
RLC505A003
[19] In Stock
RKJ941F001
SPRING LEAF
RKJ941F001
[20] Contact
RLC129A010
COVER,BEND
Contact
[21] Contact
RLC142A002
LID,CONTROL
Contact
[22] Out of Stock
RLA129A023
COVER ASSY(TB)
RLA129A023
[23] In Stock
RKX502A007P
CONTROL, REMOTE
Notes: DOES NOT INCLUDE REMOTE CONTROL HOLDER(RKN032A002B) Show Image
RKX502A007P
[24] In Stock
RKN032A002B
HOLDER
RKN032A002B
[25] Contact
RLC008A001M
PARTS,STANDARD
Contact
[26] Contact
RLC012A010
MANUAL,INSTRUCTION
Contact
[27] Contact
RLC011F001R
LABEL,MODEL NAME
Contact
SKU: DXK05Z5-S HEAT EXCH. AND CONTROL Category:
