DXCA55VSA CONTROL AND PARTS SET

Name: DXCA55VSA CONTROL AND PARTS SET
SKU: DXCA55VSA CONTROL AND PARTS SET
Availability: InStock

DXCA55VSA CONTROL AND PARTS SET

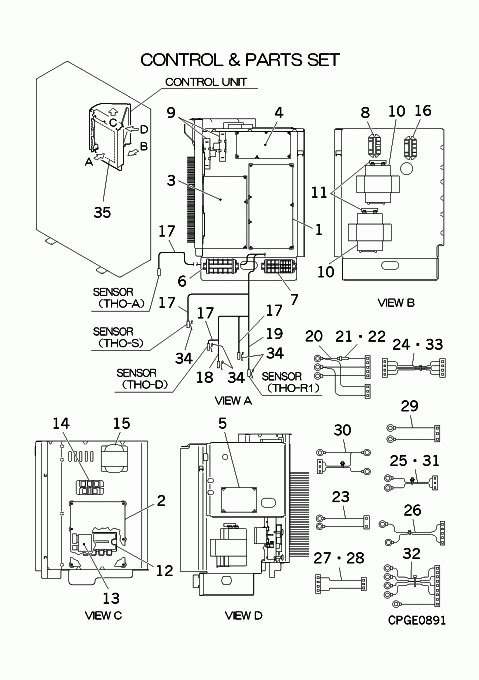

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

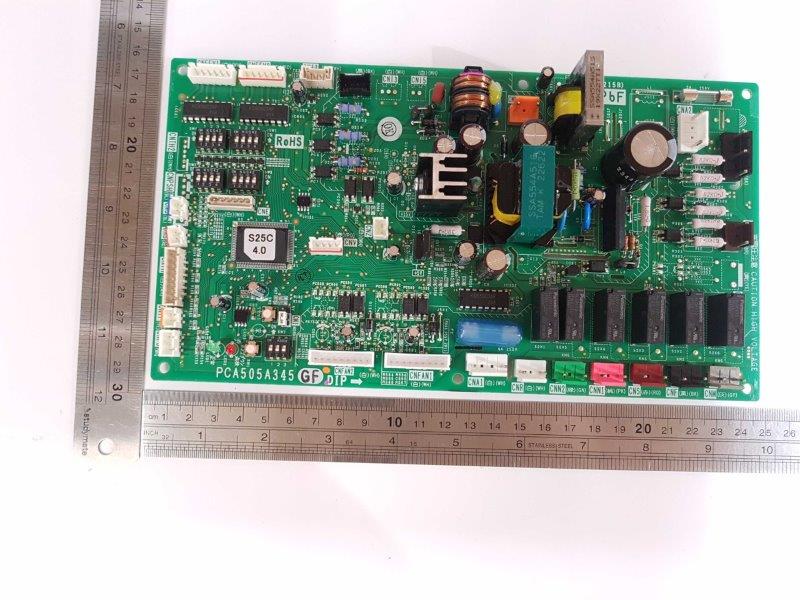

[1] In Stock

PCA505A377GF

PWB ASSY (CONTROL)

Notes: PWB1, PWB1 - CONTROL PCB

[1-33] Contact

PCB501A278A

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCB505A196FA

PWB ASSY(INVERTER)

Notes: PWB2, PWB2 - INVERTER BOARD - CONFIRM MODEL & SERVICE CODE - "FDCA160VS" has different boards

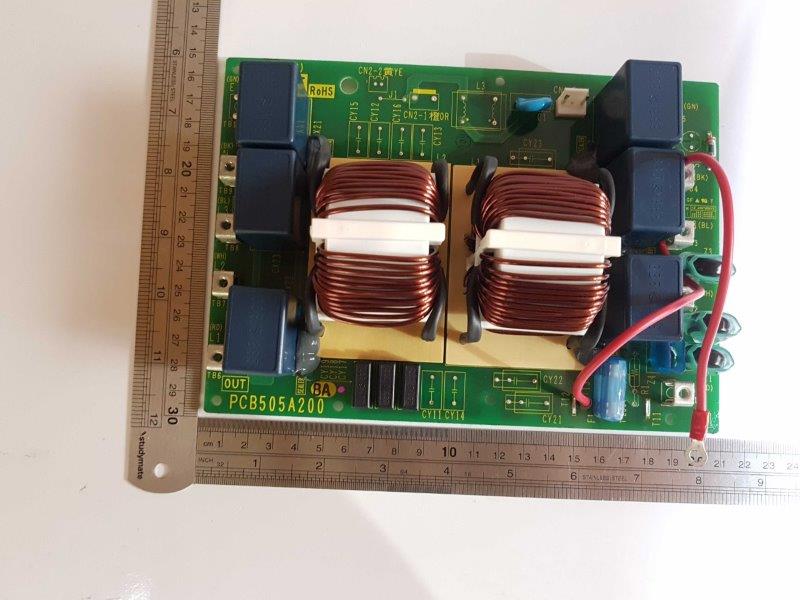

[3] In Stock

PCB505A268BA

PWB ASSY (NOISE.FILTER)

Notes: PWB3, NOISE FILTER. SCREW FOR TERMINAL IS PART NUMBER SSA912B105B

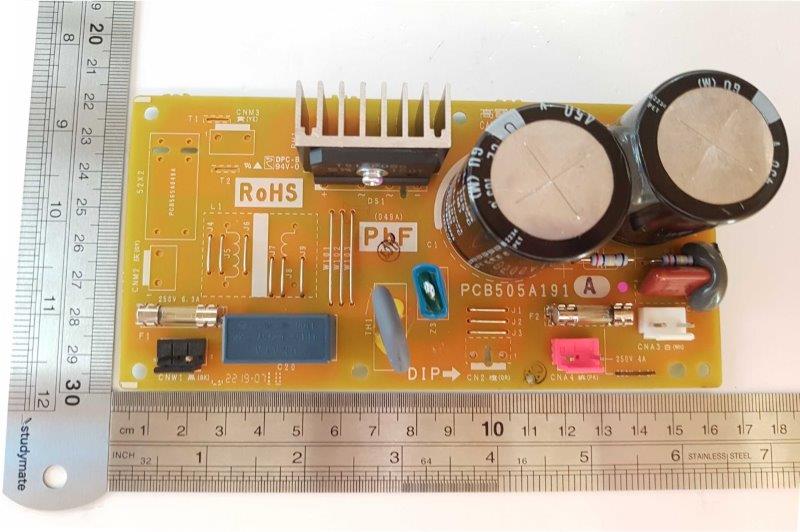

[4] In Stock

PCB505A194B

PWB ASSY

Notes: PWB4, POWER BOARD. COMES WITH 2 SMALL FUSES.

[5] In Stock

PCA505A180

DRED

Notes: PWB, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[6] In Stock

SSA561B693L

BLOCK,TERMINAL

Notes: TB1

[7] In Stock

SSA561B711A

BLOCK,TERMI

Notes: TB Show Image

[8] In Stock

SSA521A727

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1/ LENGTH 7CM Show Image

[9] In Stock

SSA553A379

RESISTOR

Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image

[10] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[11] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[12] In Stock

PCB008A213C

TRANSISTOR(POWER)

Notes: TM, IPM, Comes with heat paste and screws Show Image

[13] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf. ***SOLD INDIVIDUALLY***

[14] In Stock

PCB008A212A

DIODE(MODULE)

Notes: DM Show Image

[15] In Stock

SSA554B097A

REACTOR

Notes: L1-1,2,3, L1 Show Image

[16] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2 - 200-240VAC ***SOLD INDIVIDUALLY***

[17] In Stock

PSA551A014Z

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1 - / LENGTH 193CM Show Image

[18] In Stock

PSA551A014AA

SENSOR

Notes: THO-H, THO-H / LENGTH 133CM (compressor dome) Show Image

[19] In Stock

PSA551A014T

SENSOR

Notes: THO-R2 Show Image

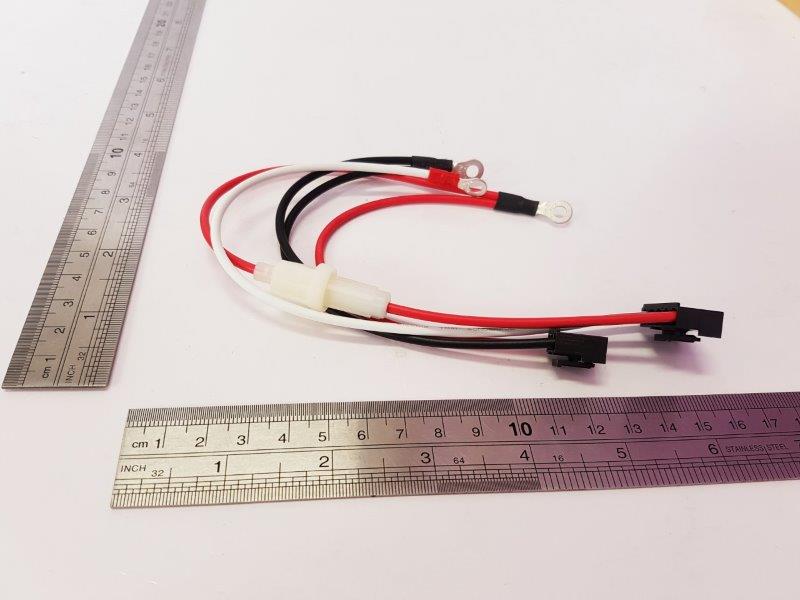

[20-22] In Stock

PCB504A384

WIRING ASSY

Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1, COMES WITH 5A FUSE. PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1 Show Image

[21] In Stock

SSA564A149AH

FUSE(CURRENT)

Notes: 5A Show Image

[22] In Stock

RWC564B002

HOLDER,FUSE

Show Image

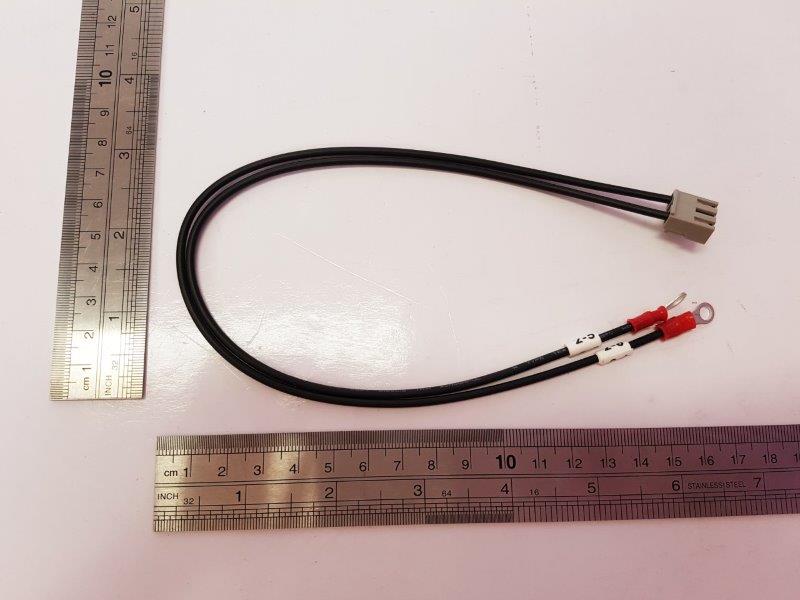

[23] In Stock

PCB504A384G

WIRING ASSY

Notes: PWB1 CNM- 52X2 5,52X2 6, PWB1 CNM- 52X2 5,52X2 6. 2 BLACK WIRES, ONE SIDE IS PLUG, OTHER SIDE IS 2 LUGS. NEAR THE LUGS ARE WRITTEN ON THE WIRES "2-5" AND THE OTHER "2-6"

[24] Contact

PCB504A357D

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2 CNI2

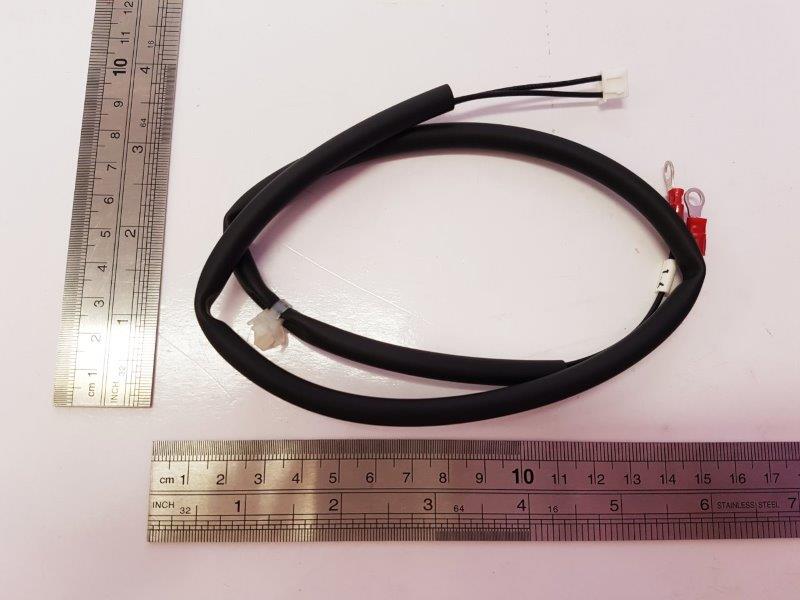

[25] In Stock

PCB504A384AA

WIRING ASSY

Notes: 52X1 5,52X1 6- PWB2 CNR

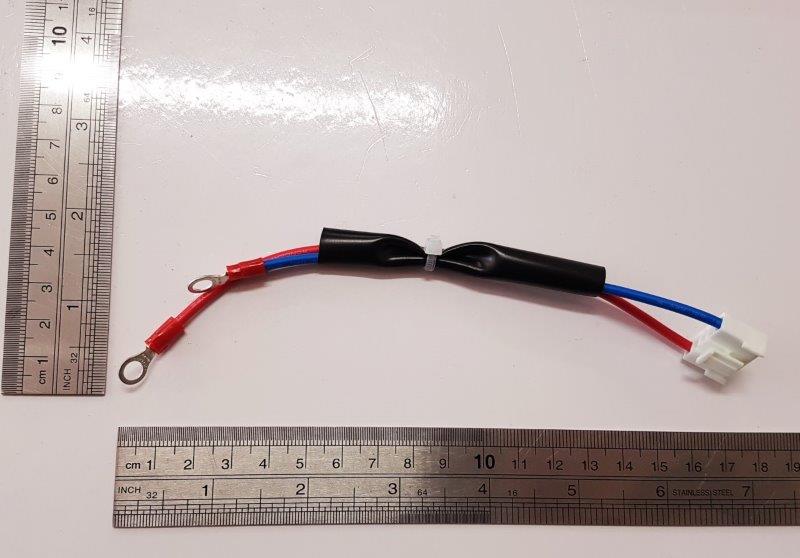

[26] In Stock

PCB504A357M

WIRING ASSY

Notes: IPM P,IPM N- PWB2 CAN Show Image

[27] In Stock

PCB504A382A

WIRING ASSY

Notes: PWB1 CNA2- PWB4 CNA3, PWB1 CNA2- PWB4 CNA3/ LENGTH 21.5CM Show Image

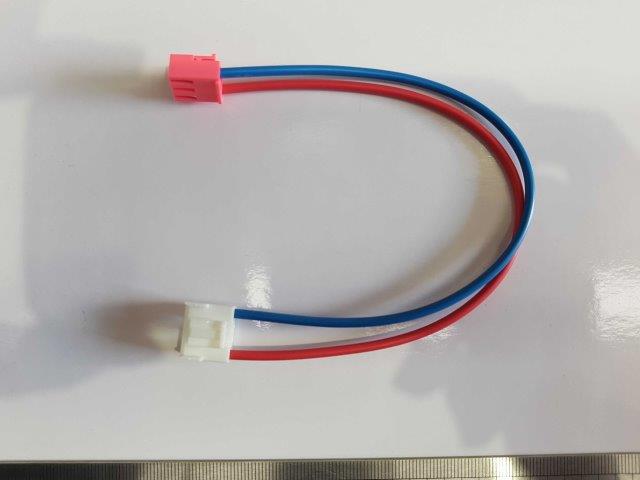

[28] In Stock

PCB504A382B

WIRING ASSY

Notes: PWB1 CNA1- PWB4 CNA4, PWB1 CNA1- PWB4 CNA4/ LENGTH 23.5CM Show Image

[29] In Stock

PCB504A384T

WIRING ASSY

Notes: PWB3 No,E-PWB3 CN1, PWB3 No,E- PWB3 CN/ LENGTH 29.5CM Show Image

[30] Contact

PCB504A382

WIRING ASSY

Contact

Notes: TB1 N,PWB1 CNW2- TB2 2,TB2 3

[31] Contact

PCB504A382G

WIRING ASSY

Contact

Notes: PWB1 CNM- 52X2 5,52X2 6

[32] Contact

PCB504A359C

WIRING ASSY

Contact

Notes: TB2 D1,TB2 D2,TB2 D3,TB2 C,E- PWB5 CNDRED

[33] Contact

PCB504A382H

WIRING ASSY

Contact

Notes: PWB5 CNDRM- PWB1 CNDRM

[34] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[35] Contact

PSC011G580

LABEL,WIRING

Contact

[36] Contact

PSB011F161AD

LABEL,MODEL NAME

Contact

SKU: DXCA55VSA CONTROL AND PARTS SET Category: Uncategorised
