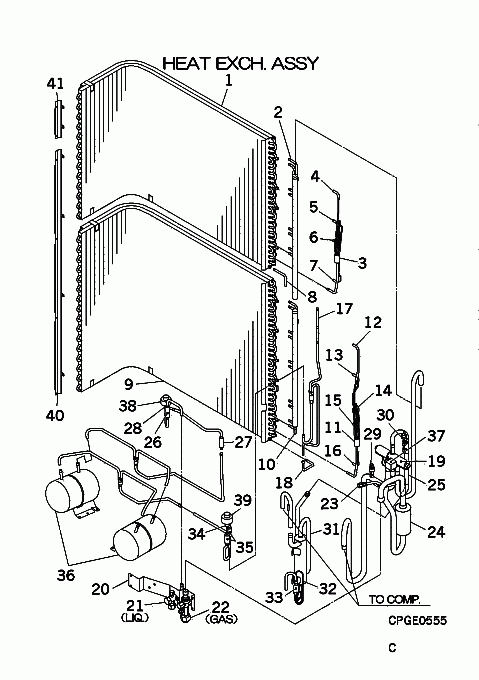

DXC55VS HEAT EXCH. ASSY

DXC55VS HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCA311A053B
HEAT EXCH(AIR)
Contact
[1-8] Contact
PCA301A123B
HEAT EXCH ASSY(AIR
Contact
Notes: UPPER
[2] Contact
PCA315D184
HEADER ASSY,GAS
Contact
[3] Contact
SSA315A237A
DISTRIBUTOR
Contact
Substitute: SSA315A252A
[3-7] In Stock

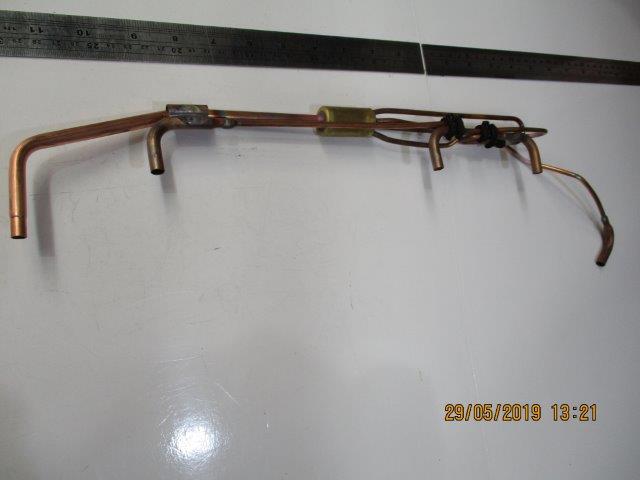

PCA315A090
DISTRIBUTOR
Show Image
PCA315A090
[4] Contact
PCA315B870
CAPILLARY ASSY(1)
Contact
Notes: !D2.2XD4.0 L300
[5] Contact
PCA315B871
CAPILLARY ASSY(2)
Contact
Notes: !D2.2XD4.0 L300
[6] Contact
PCA315B872
CAPILLARY ASSY(3)
Contact
Notes: !D2.2XD4.0 L300
[7] Contact
PCA315B873
CAPILLARY ASSY(4)
Contact
Notes: !D2.6XD4.0 L300
[8] Contact
PCA321C654
PIPE
Contact
[9] Contact
PCA311A054B
HEAT EXCH(AIR)
Contact
[9-18] Contact
PCA301A124D
HEAT EXCH ASSY(AIR
Contact
Notes: LOWER
[10] Contact
PCA315D186
HEADEAR ASSY,GAS
Contact
[11] Contact
SSA315A237
DISTRIBUTOR
Contact
Substitute: SSA315A252
[11-16] Contact
PCA315A089D
DISTRIBUTOR ASSY
Contact
[12] Contact
PCA315B858
CAPILLARY ASSY(1)
Contact
Notes: !D2.8XD4.0 L300
[13] Contact
PCA315B859
CAPILLARY ASSY(2)
Contact
Notes: !D2.8XD4.0 L300
[14] Contact
PCA315B860
CAPILLARY ASSY(3)
Contact
Notes: !D2.8XD4.0 L300
[15] Contact
PCA315B861
CAPILLARY ASSY(4)
Contact
Notes: !D2.8XD4.0 L300
[16] Contact
PCA315B862
CAPILLARY ASSY(5)
Contact
Notes: !D2.8XD4.0 L300
[17] Contact
PCA321C747B
PIPE ASSY
Contact
[18] Contact
PCA321C996
PIPE
Contact
[19] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[20] Contact
PCA116A234
BRACKET
Contact
[21] In Stock

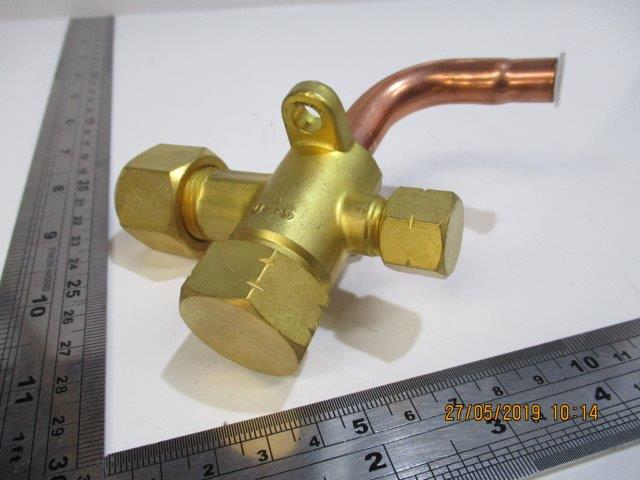

PCB381A077B
SERVICE VALVE
Notes: LIQ. Show Image
PCB381A077B
[22] In Stock
SSA381A886
VALVE,SERVICE(3/4")
Notes: GAS, GAS - SUCTION 3/4 INCH
[23] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[24] Contact
SSA325A001CL
PIPE,SHELL
Contact
[25] In Stock
SSA385A018A
VALVE CHECK
[26] Out of Stock
SSA357A059B
STRAINER
[27] In Stock
SSA357A005AA
STRAINER
Show Image
SSA357A005AA
[28] In Stock
SSA387F044
EXP VALVE
Notes: EEVC or SM1, EEV Body Show Image
SSA387F044
[29] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[30] In Stock
SSA532A083
SWITCH HP
Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image
SSA532A083
[31-33] In Stock
PCA304A259A
PIPING ASSY(OIL)
[32] Contact
PCA315B903
CAPILLARY
Contact
Notes: !D1.2XD2.5 L500
[32-33] Contact
PCA315B902
CAPILLARY ASSY(OIL
Contact
[33] Out of Stock
SSA357A059B
STRAINER
[34] In Stock
SSA387F044A
EXP VAL XP
Notes: EEV or SM2, EXPANSION VALVE BODY ONLY Show Image
SSA387F044A
[35] In Stock
SSA357A059T
STRAINER
[36] In Stock
SSA352B045B
RECEIVER
[37] In Stock
PCB382F107ZA
COIL ASSY, SOLENOID
Notes: FOR 20S, FOR 20S‚ - Solenoid for Reversing Valve
[38] In Stock
SSA382F212A
SOLENOID
Notes: FOR EEV(COOL) or SM1, COOLING/ LENGTH 78CM
[39] In Stock
SSA382F229J
SOLENOID XP
Notes: FOR EEVH or SM2 Show Image
SSA382F229J
[40] Contact
PCA141A101
PLATE,BAFFLE
Contact
[41] Contact
PCA141A102
PLATE,BAFFLE
Contact
