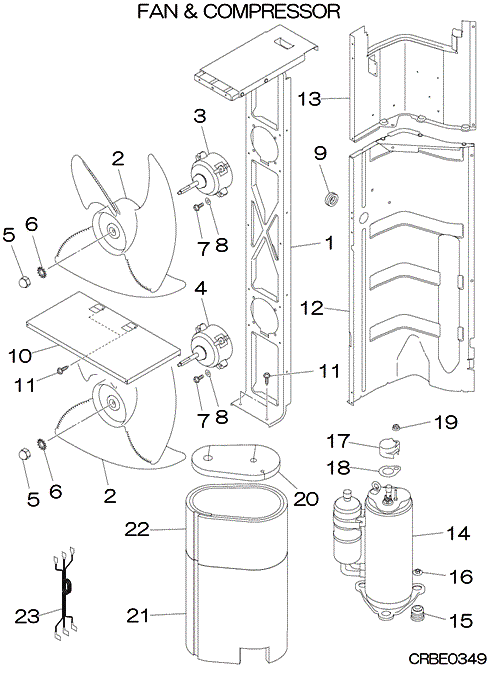

DXC32ZMA-S FAN AND COMPRESSOR

DXC32ZMA-S FAN AND COMPRESSOR

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCR116A115 BASE,MOTOR In Stock
  • [2] SSA431B228 FAN, PROPELLER In Stock Notes: CONDENSER FAN BLADE
  • [3] SSA512T076S MOTOR, DC In Stock Notes: UPPER MOTOR
  • [4] SSA512T076R MOTOR, DC In Stock Notes: LOWER MOTOR
  • [5] SSA914H014A NUT In Stock Notes: 1PC Show Image
  • [6] SSA915F002D WASHER In Stock Notes: 1PC ONLY Show Image
  • [7] SSA913C031A SCREW TAP In Stock Notes: 1PC ONLY Show Image
  • [8] W200H06 WASHER In Stock Substitute: W200G06 Notes: 1PC ONLY
  • [9] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [10] PCA141A096B PLATE,BAFFLE Contact   Contact
  • [11] SSA913D020 SCREW TAP In Stock Notes: 1PC ONLY, M5X10 Show Image
  • [12] RCR141A104A PLATE ASSY,BAFFLE Contact   Contact
  • [13] RCR141A107 PLATE ASSY,BAFFLE(U) Contact   Contact
  • [14] AHT201F264C COMPRESSOR In Stock Notes: RMT5126MCE1
  • [15] SSA941C246 CUSHION RUB In Stock Notes: 1PC ONLY
  • [16] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [17] SSA947K026 COVER,TERMINAL In Stock
  • [18] SSA932C009A GASKET,COVER In Stock
  • [19] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [20] RCR154D104A INSULATION,COMP In Stock Show Image
  • [21] RCR154D105A INSULATION,COMP In Stock
  • [22] RCR154D106 INSULATION,COMP In Stock

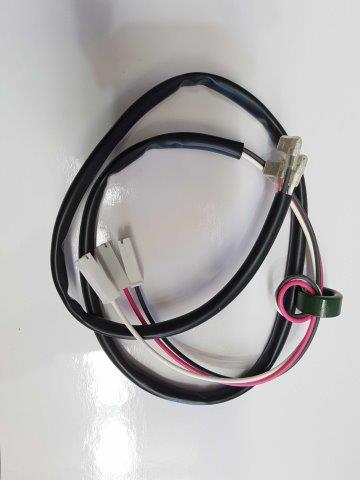

  • [23] RCR504A037 WIRING ASSY In Stock Notes: COMPRESSOR WIRING HARNESS
SKU: DXC32ZMA-S FAN AND COMPRESSOR Category:
