DXC32ZMA-S CONTROL AND PARTS SET

DXC32ZMA-S CONTROL AND PARTS SET

DXC32ZMA-S CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

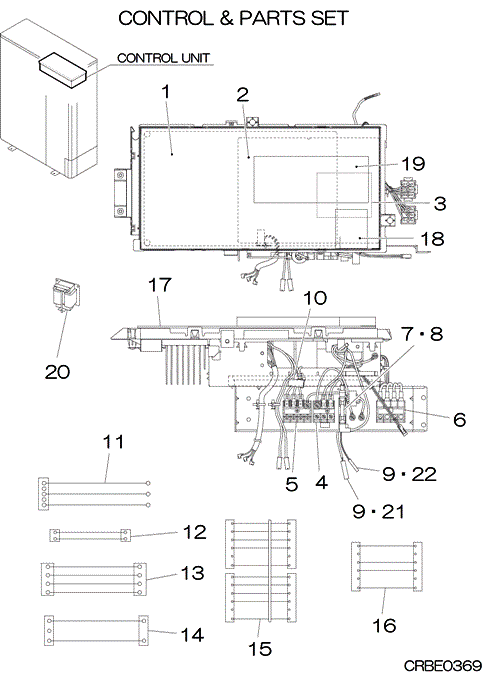

Check the parts position number [ ] matching with the drawing. Login to view prices.

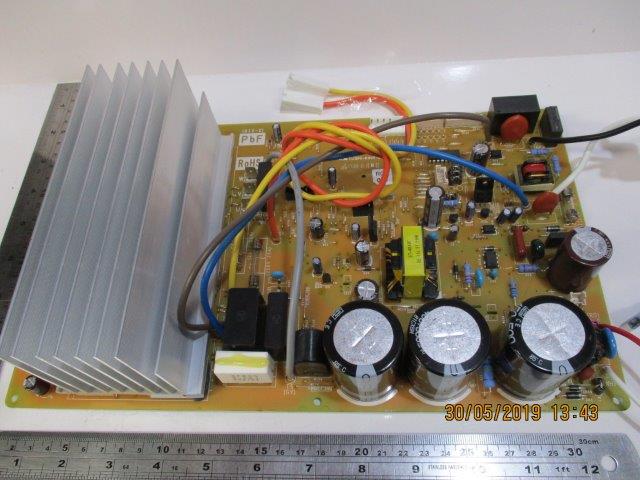

[1] In Stock
RCT505A302HC
PWB ASSY(MAIN)
Notes: PWB1, ***DOES NOT PLUG INTO FAN MOTORS*** PWB1 MAIN - INVERTER BOARD. PLUGS INTO SENSORS, EEV, REACTOR Show Image
RCT505A302HC
[1-19] Contact
RCR501A113
CONTROL UNIT
Contact
Notes: NOT AVAILABLE

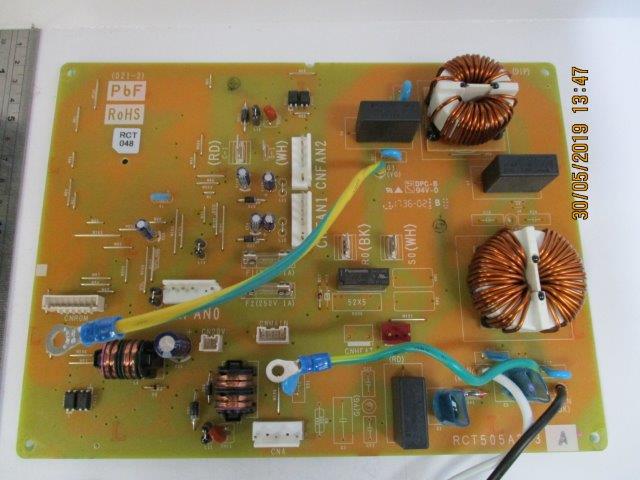

[2] In Stock
RCT505A303A
PWB ASSY(SUB)
Notes: PWB2, PWB2 - RUNS FAN MOTORS, BOTTOM BOARD Show Image
RCT505A303A
[3] In Stock
RCT505A304
DRED
Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
RCT505A304
[4] In Stock
SSA561B665
BLOCK,TERMINAL
Notes: T1 Show Image
SSA561B665
[5] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[6] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: T3 Show Image
SSA561B733
[7] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[8] In Stock
SSA564B088
FUSE HOLDER
Show Image
SSA564B088

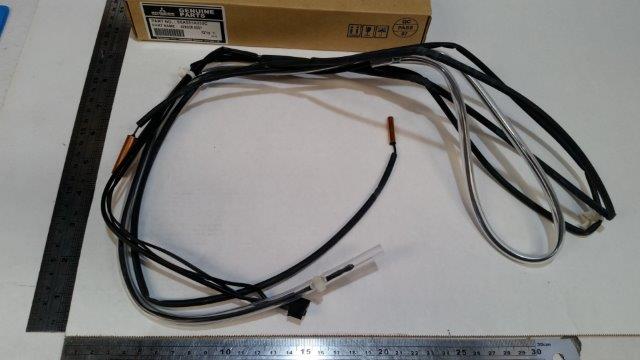

[9] In Stock
SSA551A233C
SENSOR ASSY
Notes: TH1,2,3, TH1,2,3 - includes 3 sensors Show Image
SSA551A233C
[10] In Stock
SSA554D173
CORE,FERRITE

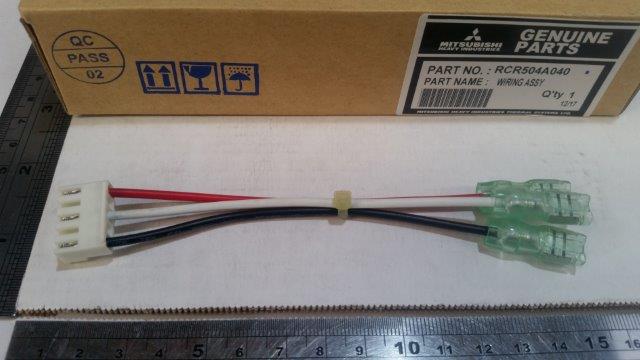

[11] In Stock
RCR504A040
WIRING ASSY
Notes: PWB2 CNA-TB2 1,TB2 2,TB2 3 Show Image
RCR504A040

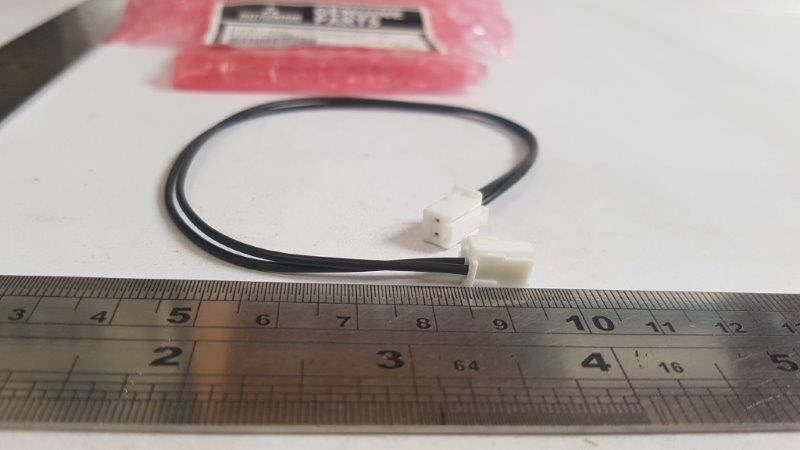

[12] In Stock
RPC504A917A
HARNESS ASSY
Notes: PWB1 CN20V -PWB2 CN20V, TWO BLACK CABLES WITH WHITE PLUGS Show Image
RPC504A917A

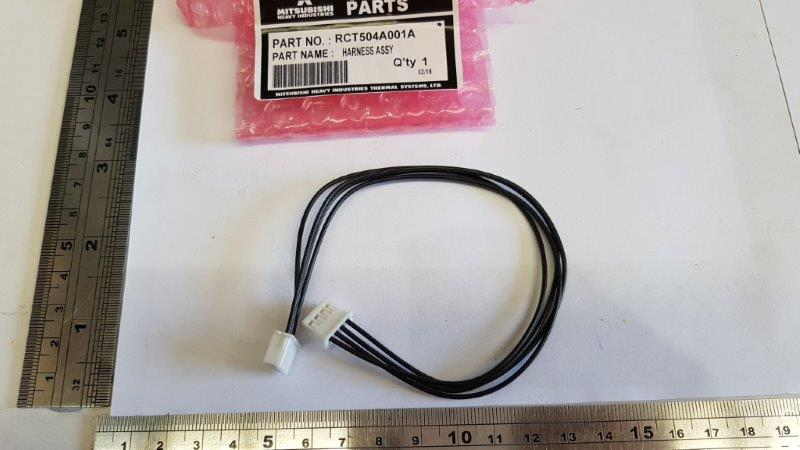

[13] In Stock
RCT504A001A
HARNESS ASSY
Notes: PWB2 CNMAIN-PWB1 CNSUB, CNMAIN-PWB1 - CNSUB-PWB2 Show Image
RCT504A001A

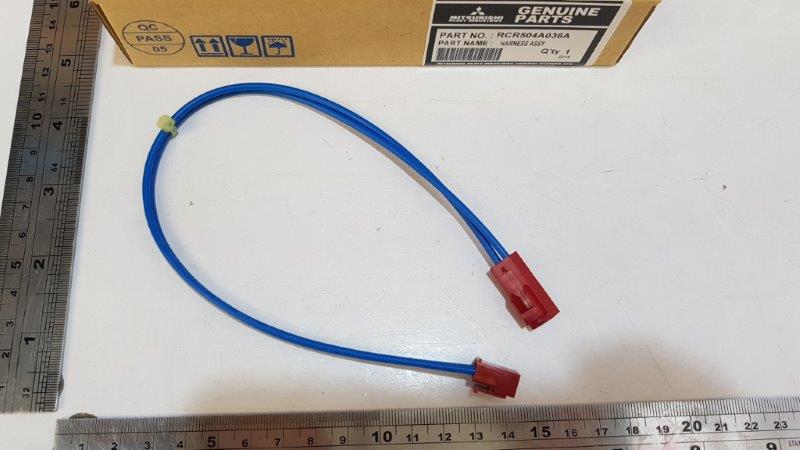

[14] In Stock
RCR504A036A
HARNESS ASSY
Notes: PWB2 CN20S-20S Show Image
RCR504A036A

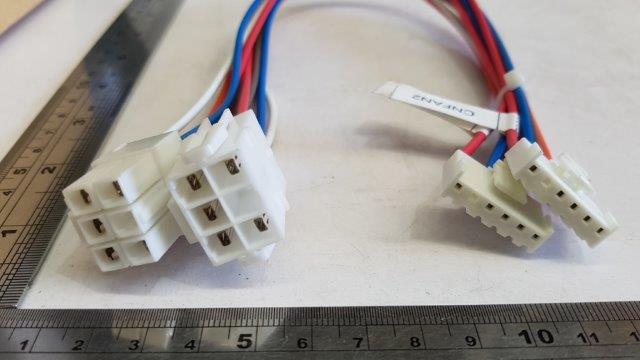

[15] In Stock
RCR504A039A
HARNESS ASSY
Notes: PWB2 CNFAN1,PWB2 CNFAN2- FM01,FM02, EXTENSION/ADAPTER CABLE FOR FAN MOTORS Show Image
RCR504A039A

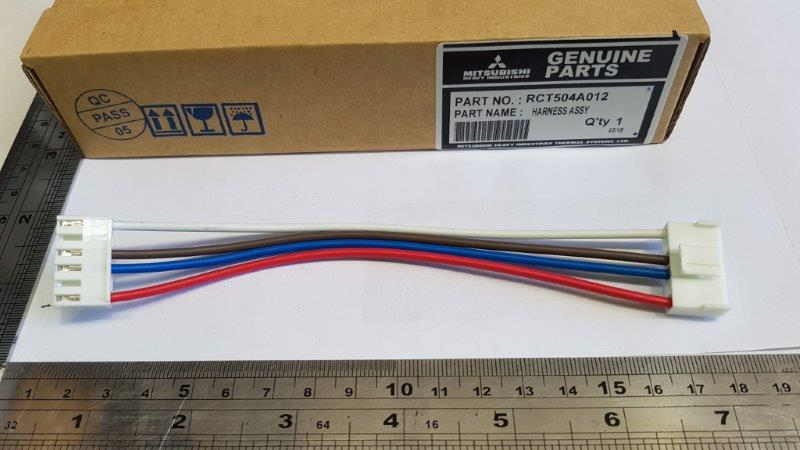

[16] In Stock
RCT504A012
HARNESS ASSY
Notes: PWB1 CNFAN-PWB2 CNFAN0, PWB1-PWB2 (FOR THE FAN MOTOR) CNFAN Show Image
RCT504A012
[17-19] In Stock
RCR142A103A
LID ASSY,CONTROL
[18] Contact
RCN011H500
LABEL NOTIC
Contact
[19] Contact
RCR011G103
LABEL,WIRING
Contact
[20] In Stock
SSA554B113
REACTOR
Show Image
SSA554B113
[21] In Stock
PSA941F001
SPRING LEAF
Notes: 1pc ONLY Show Image
PSA941F001
[22] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[23] Contact
RCR011F100AD
LABEL,MODEL NAME
Contact
