DXC32ZL-S CONTROL AND PARTS SET

DXC32ZL-S CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

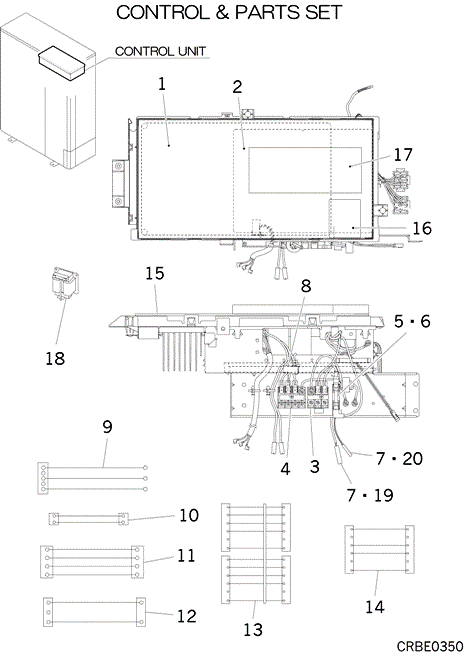

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

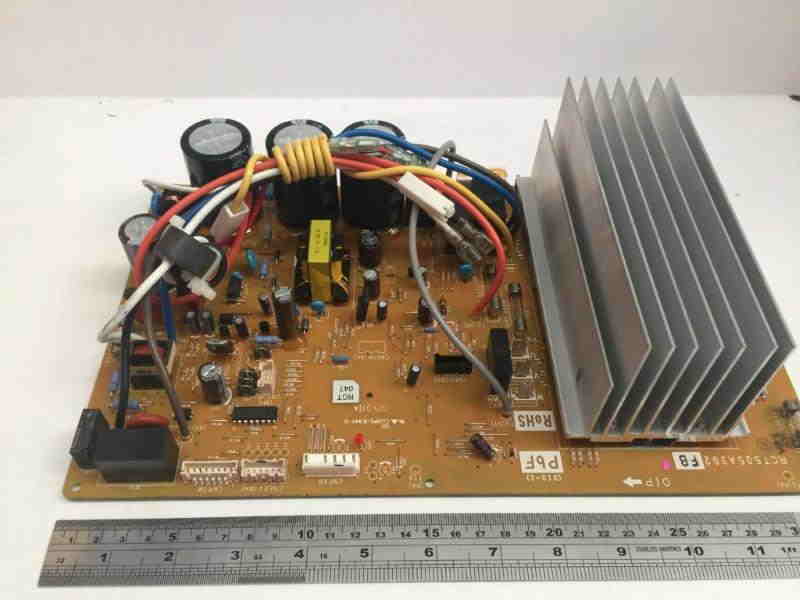

RCT505A302FB
PWB ASSY(MAIN)
Notes: MAIN - ********DOES NOT CONTROL FAN MOTORS****************** Show Image
RCT505A302FB
[1-17] Contact
RCR501A103
CONTROL UNIT
Contact
[2] In Stock
RCT505A303
PWB ASSY (SUB)
Notes: CONTROLS BOTH FAN MOTORS
[3] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[4] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[5] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[6] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[7] In Stock
SSA551A233C
SENSOR ASSY
Notes: TH1,2,3, TH1,2,3 - includes 3 sensors Show Image
SSA551A233C
[8] In Stock
SSA554D173
CORE,FERRITE
[9] In Stock
RCR504A040
WIRING ASSY
Notes: PWB2 CNA-TB2 1,TB2 2,TB2 3 Show Image
RCR504A040
[10] In Stock
RPC504A917A
HARNESS ASSY
Notes: PWB1 CN20V -PWB2 CN20V, TWO BLACK CABLES WITH WHITE PLUGS Show Image
RPC504A917A
[11] In Stock
RCT504A001A
HARNESS ASSY
Notes: PWB2 CNMAIN-PWB1 CNSUB, CNMAIN-PWB1 - CNSUB-PWB2 Show Image
RCT504A001A
[12] In Stock
RCR504A036A
HARNESS ASSY
Notes: PWB2 CN20S-20S Show Image
RCR504A036A
[13] In Stock
RCR504A039A
HARNESS ASSY
Notes: PWB2 CNFAN1,PWB2 CNFAN2- FM01,FM02, EXTENSION/ADAPTER CABLE FOR FAN MOTORS Show Image
RCR504A039A
[14] In Stock
RCT504A012
HARNESS ASSY
Notes: PWB1 CNFAN-PWB2 CNFAN0, PWB1-PWB2 (FOR THE FAN MOTOR) CNFAN Show Image
RCT504A012
[15-17] Contact
RCR142A103
LID ASSY,CONTROL
Contact
[16] Out of Stock
RSA011H031
LABEL,NOTICE
[17] Contact
RCR011G101
LABEL,WIRING
Contact
[18] In Stock
SSA554B113
REACTOR
SSA554B113
[19] In Stock
RKJ941F001
SPRING LEAF
RKJ941F001
[20] In Stock
RKJ941F001
SPRING LEAF
RKJ941F001
[21] Contact
RCR011F100C
LABEL,MODEL NAME
Contact
SKU: DXC32ZL-S CONTROL AND PARTS SET Category:
