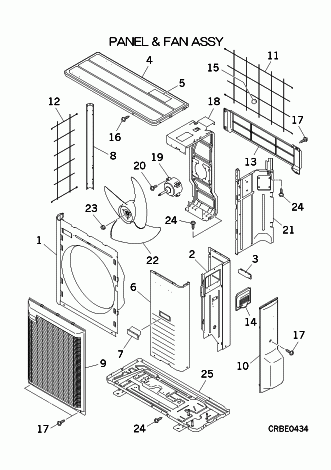

DXC28ZRA-W PANEL AND FAN ASSY

DXC28ZRA-W PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCR122A001F
PANEL ASSY,FRONT
[2-3] In Stock
RCR125A200
PANEL ASSY,REAR
[3] In Stock
SSA944B031A
HANDLE
SSA944B031A
[4-5] In Stock
RCR124A002S
PANEL ASSY,TOP
Notes: COMES WITH WARNING LABEL RSA011H036B
[5] In Stock
RSA011H036B
LABEL,NOTICE
Notes: LENGTH 16.5CM Show Image
RSA011H036B
[6] In Stock
RCR122A006B
PANEL,SERVICE
[6-7] In Stock
RCR122A004A
PANEL ASSY,SERVICE
Notes: METAL / FRONT SERVICE PANEL
[7] In Stock
SSA944B031A
HANDLE
SSA944B031A
[8] In Stock
RCR115A002A
SUPPORT,CORNER
[9] In Stock
RCR435A002
GRILLE AIR OUT
Notes: FAN GUARD/FAN GRILLE
[10] In Stock
RCR132A004
COVER ASSY
Notes: RIGHT SIDE PLASTIC SERVICE COVER
[11] In Stock
RCR131A201
GUARD,FIN(A)
[12] In Stock
RCR131A002
GUARD,FIN(B)
[13] In Stock
RCR131A200
GUARD,FIN
[14] In Stock
RCR132A002
COVER,TERMINAL
RCR132A002
[15] In Stock
RCR941G001
CUSHION,RUBBER
Notes: ! Show Image
RCR941G001
[16] In Stock
SSA913A034F
SCREW,TAP
Notes: 4X8, 1pc ONLY, 4X8 Show Image
SSA913A034F
[17] In Stock
SSA913A034L
SCREW,TAP
Notes: 4X12, 1pc ONLY
[18] In Stock
RCR116A001D
BRACKET,MOTOR
[19] In Stock
SSA512T076BM
MOTOR DC
[20] In Stock
SSA913B038
SCREW,TAP
Notes: 1pc ONLY - FOR FAN MOTOR Show Image
SSA913B038
[21] In Stock
RCR141A204A
PLATE ASSY,BAFFLE
[22] In Stock
SSA431B256
FAN, PROPELLER
Notes: FAN BLADE
[23] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[24] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[25] In Stock
RCR111A003D
BASE ASSY
