DXC28ZMA-S HEAT EXCH. AND CONTROL

DXC28ZMA-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

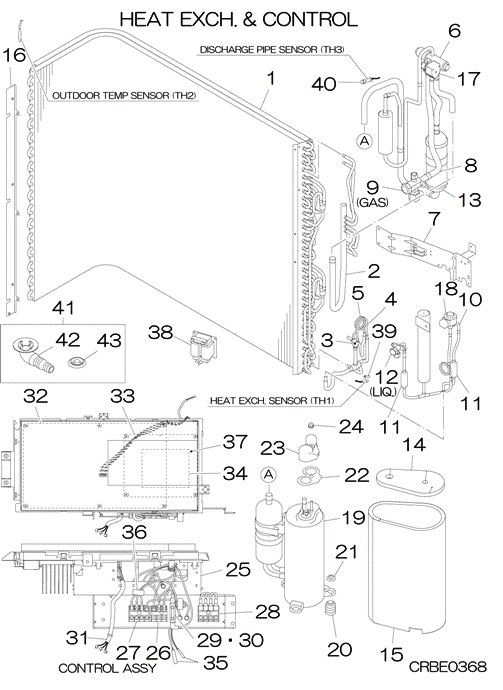

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock
RCT504A001
HARNESS ASSY
Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image
RCT504A001
[1-5] In Stock
RCR301A100
HEAT EXCH ASSY(AIR)
Notes: OUTDOOR HEAT EXCHANGER COIL ASSEMBLY
[2] Contact
RCR315D100
HEADER ASSY,GAS
Contact
[3] Contact
RSA315A004B
DISTRIBUTOR
Contact
[3-5] Contact
RCR315A100
DISTRIBUTOR ASSY
Contact
[4] In Stock
RCR315B012
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300/ LENGTH 9CM Show Image
RCR315B012
[5] In Stock
RCR315B100
CAPILLARY
Notes: !D2.6XD4.0 L300, LENGTH 9CM Show Image
RCR315B100
[6] In Stock
SSA382C068
4 WAY VALVE
Notes: 20S, 20S - REVERSING VALVE BODY - (NOT COIL) Show Image
SSA382C068

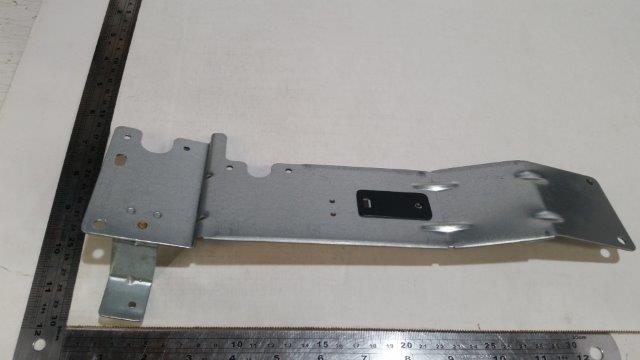

[7] In Stock
RCR116A102
BRACKET ASSY(VALVE)
RCR116A102

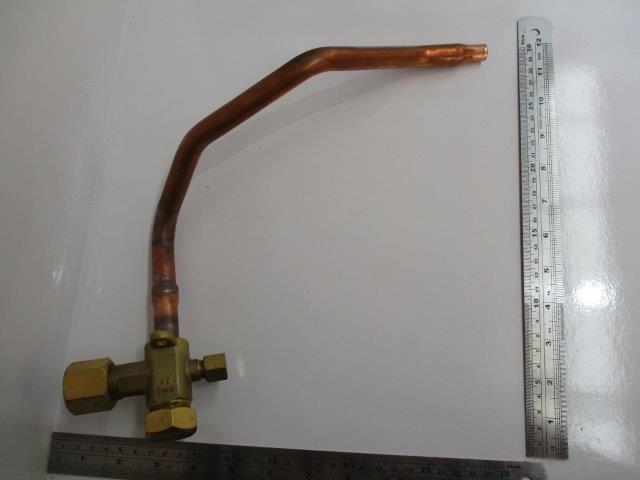

[8-9] In Stock
RCR304A105A
PIPING ASSY
RCR304A105A
[9] Out of Stock
PCA381A062C
VALVE,SERVICE(5/8")
Notes: GAS, GAS / SUCTION SERVICE VALVE - 5/8'
[10] In Stock
SSA387F052
VALVE,BODY(EXP)
Notes: EEV, EEV‚  - Expansion Valve Body - Body only Show Image
SSA387F052
[10-12] In Stock
RCR304A103
PIPING ASSY(EXPAN)
Notes: includes Expansion Valve Body, Strainer & Liquid Service Valve
[11] In Stock
SSA357A005A
STRAINER
SSA357A005A
[12] In Stock
RCR381A100
VALVE,SERVICE(1/4")
Notes: LIQ. Show Image
RCR381A100
[13] In Stock
AHT351A001
ACCUMULATOR
AHT351A001
[14] Contact
RCR154D102A
INSULATION,COMP
Contact
[15] In Stock
RCR154D101
INSULATION,COMP
[16] In Stock
PCA141A100
PLATE,BAFFLE(L)
Notes: LENGTH 83.5CM Show Image
PCA141A100
[17] In Stock
RPC382F900
COIL ASSY, SOLENOID
Notes: FOR 20S, for extension harness see [45] RCR504A036B, REVERSING VALVE SOLENOID COIL Show Image
RPC382F900
[18] In Stock
RCM382F001G
COIL,SOLENOID(EEV)
Notes: FOR EEV, HAS HARNESS ATTACHED-WHITE PLUG, MULTI COLOR WIRES Show Image
RCM382F001G
[19] In Stock
AHT201C184DA
COMPRESSOR ASSY
Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)
[20] In Stock
SSA941C351A
CUSHION,RUBBER
Notes: For Compressor - Sold individually
[21] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[22] In Stock
RSA932C004
GASKET
RSA932C004
[23] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[24] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[25] In Stock
RPC142A902
BOX,CONTROL(A)
[26] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[27] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[28] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: T3 Show Image
SSA561B733
[29] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[30] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[31] In Stock
RPC504A912A
WIRING ASSY
Notes: FOR COMP. Show Image
RPC504A912A

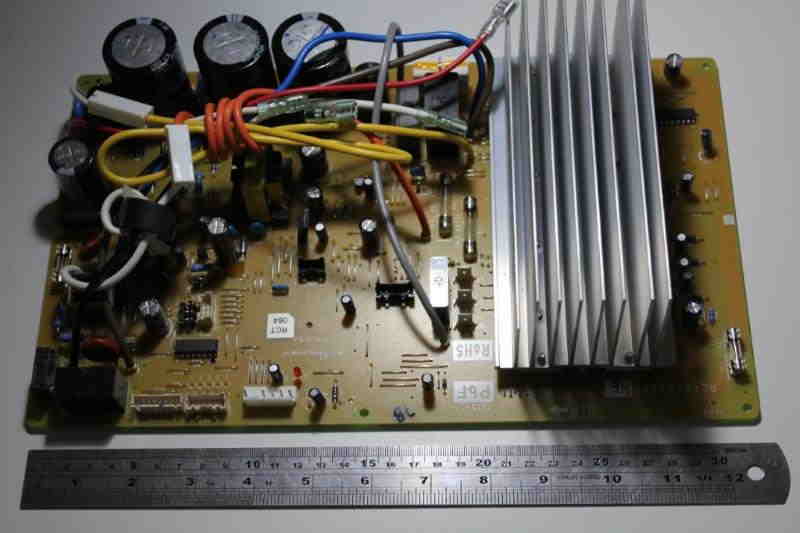

[32] In Stock
RCT505A302HB
PWB ASSY(MAIN)
Notes: PWB1, LARGER BOARD, PLUGS INTO SENSORS, EEV, FAN MOTOR & COMPRESSOR Show Image
RCT505A302HB

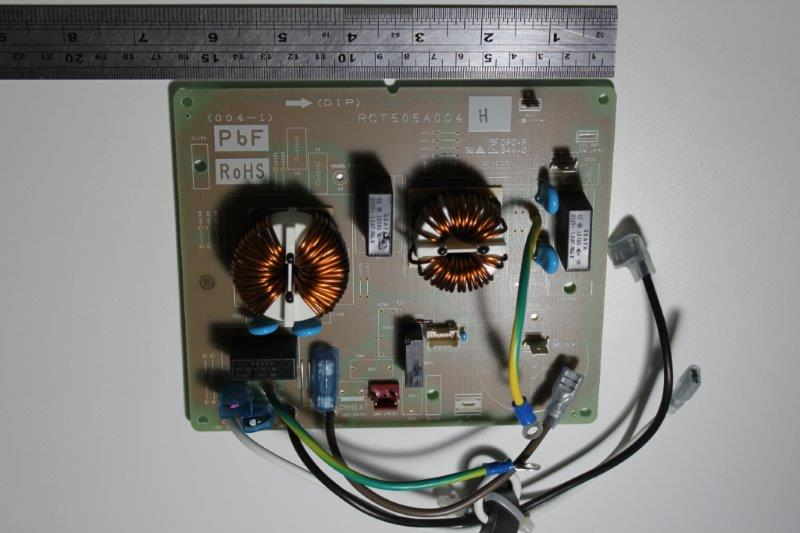

[33] In Stock
RCT505A004H
PWB ASSY(SUB)
Notes: PWB2, PWB2. CONNECTS TO REVERSING VALVE ***Keep reversing valve harness*** Show Image
RCT505A004H
[34] In Stock
RCT505A304
DRED
Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
RCT505A304
[35] In Stock
SSA551A233A
SENSOR ASSY
Notes: TH1-2-3, OUTDOOR SENSOR ASSEMBLY - 3 Sensors
[36] In Stock
SSA554D173
CORE,FERRITE
[37] Contact
RCR011G200
LABEL,WIRING
Contact
[38] In Stock
SSA554B113
REACTOR
SSA554B113
[39] In Stock
RKJ941F001
SPRING LEAF
RKJ941F001
[40] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[41] In Stock
RPC008A601
DRAIN KIT
Notes: ***CUSTOMER TO INFORM QUANTITY REQUIRED*** DRAIN KIT COMES WITH 1x ELBOW, 2x GROMMETS.
[42] In Stock
RPC008A601
DRAIN KIT
Notes: ***CUSTOMER TO INFORM QUANTITY REQUIRED*** DRAIN KIT COMES WITH 1x ELBOW, 2x GROMMETS.
[43] In Stock
SSA947A089
GROMMET
Notes: D20.1, SSA422A024 ELBOW Show Image
SSA947A089
[44] Contact
RCR011F100AB
LABEL,MODEL NAME
Contact

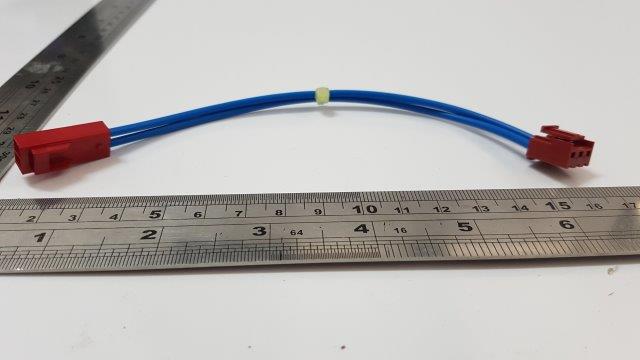

[45] In Stock
RCR504A036B
HARNESS ASSY
Notes: WIRING EXTENTION BETWEEN PWB ASSY (SUB) and REVERSING VALVE SOLENOID COIL (20S) Show Image
RCR504A036B
