DXC24ZRA-W HEAT EXCH. AND CONTROL

Name: DXC24ZRA-W HEAT EXCH. AND CONTROL
SKU: DXC24ZRA-W HEAT EXCH. AND CONTROL
Availability: InStock

DXC24ZRA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

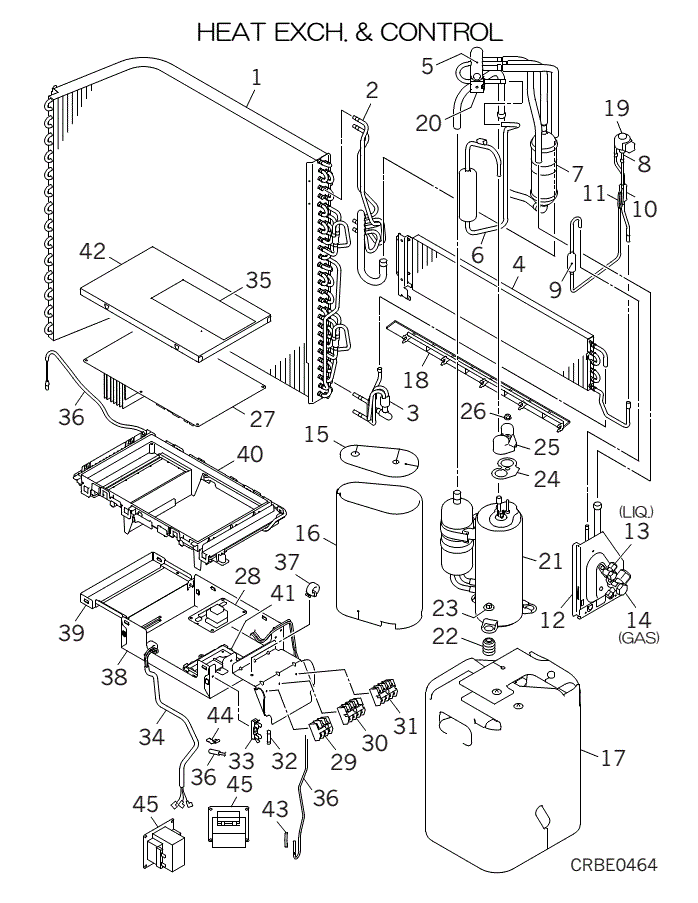

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] In Stock

RCR301A202WA

HEAT EXCH ASSY AIR

[2] Contact

RCR315D200

HEADER ASSY,GAS

Contact

[3] In Stock

RCR315A200A

DISTRIBUTOR ASSY

[4] In Stock

RCR301A206

HEAT EXCH ASSY(AIR)

[5] In Stock

SSA382C098

VALVE S(4WAY)

Notes: 20S, reversing valve, body only Show Image

[6] In Stock

RCR304A205

PIPING ASSY(DISCH)

[7] In Stock

AHT351A001

ACCUMULATOR

Show Image

[8] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[8-11] In Stock

RCR304A201C

PIPING ASSY (EXPAN)

Notes: includes Expansion Valve body, Strainer, Shell Pipe & Capillary

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] In Stock

RCN325A700

PIPE,SHELL

Show Image

[11] In Stock

RCV315B202A

CAPILLARY

Notes: D2.6xD4.0 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[12] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[13] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[14] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[15] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[16] Contact

RPC154D904

INSULATION,COMP

Contact

Notes: COMP BODY

[17] Contact

RCR154D213

INSULATION

Contact

[18] Contact

RCR454A200

GUIDE,DRAIN

Contact

[19] In Stock

SSA382F210L

COIL,SOLENOID

Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)

[20] In Stock

RSA382F013BC

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL / 4 WAY VALVE COIL - coil only

[21] In Stock

AHT201C184BA

COMPRESSOR ASSY

Notes: RMT5118SBE2, ***COMPRESSORS CANNOT BE RETURNED***

[22] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[23] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[24] In Stock

RSA932C004

GASKET

Show Image

[25] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[26] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[27] In Stock

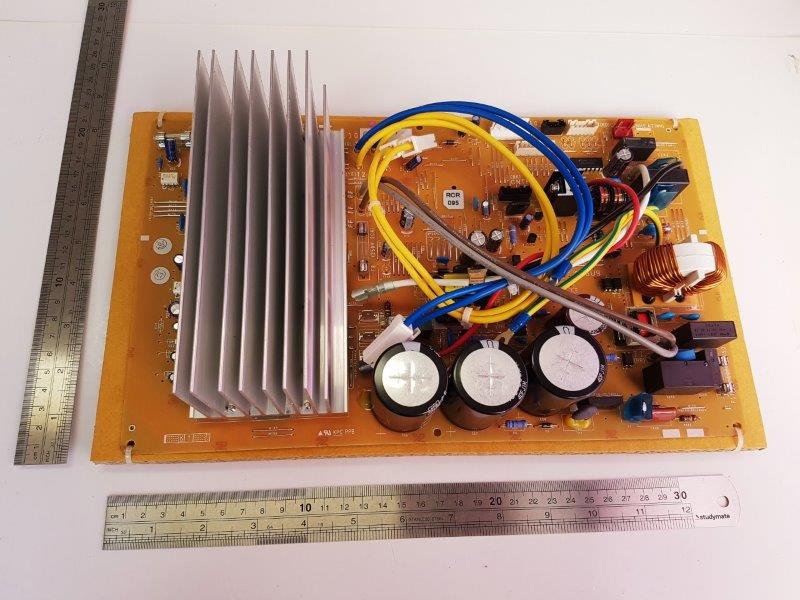

RCR505A100L

PWB ASSY

Notes: PWB1, PWB1 - MAIN BOARD - ALSO INVERTER Show Image

[28] In Stock

RCT505A304B

DRED

Notes: PWB2, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT

[29] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[30] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[31] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[32] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[33] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[34] In Stock

RCR504A048C

WIRING ASSY

Notes: FOR COMP., LENGTH 76CM Show Image

[35] Contact

RCR011G201

LABEL,WIRING

Contact

[36] In Stock

SSA551A244

SENSOR ASSY

Notes: TH1,2,3, TH1,2,3 (3 SENSORS) Show Image

[37] In Stock

SSA554D173

CORE,FERRITE

[38] In Stock

RCR142A205A

BOX ASSY,CONTROL

[39] In Stock

RCR132A200

COVER,CONTROL

[40] In Stock

RCR142A202A

BOX,CONTROL

[41] In Stock

RWC129A004

BOX,CONTROL(DR)

Show Image

[42] In Stock

RCR142A207A

LID ASSY, CONTROL

[43] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[44] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[45] In Stock

SSA554B114

REACTOR

Show Image

[46] Contact

RCR011F210CB

LABEL,MODEL NAME

Contact

SKU: DXC24ZRA-W HEAT EXCH. AND CONTROL Category: Uncategorised
