DXC24VNX/1 CONTROL AND PARTS SET

DXC24VNX/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A322GC
PWB ASSY CONTROL
Notes: ONLY FOR SUPPLY PARTS PWB1, ***CONFIRM SERVICE CODE*** Comes with new CNA1/CNA2 connectors -Tech to read installation instructions. PWB1 - Connects to Fan Motor - Top Board Show Image
PCA505A322GC
[1-25] Out of Stock
PCA501A183CA
CONTROL UNIT
Substitute: OUT OF PRODUCTION Notes: !, Not available
[2] In Stock
PCA505A232A
PWB ASSY (INVERTER)
Notes: ONLY FOR SUPPLY PARTS PWB2, ***CONFIRM SERVICE CODE*** Connects to Compressor. Comes with a (different looking) reactor - tech to read install instructions - (FACTORY PART PCA505A098G) Show Image
PCA505A232A
[3] In Stock
PCA505A096D
PWB ASSY (N.F)
Notes: PWB3, CONFIRM SERVICE CODE. NOISE FILTER Show Image
PCA505A096D
[4] In Stock
PCA505A068D
PWB ASSY
Notes: PWB4, HAS 7 DIPSWITCHES & A PUSH BUTTON Show Image
PCA505A068D
[5] In Stock
PCA505A068C
PWB ASSY
Notes: PWB5, BOARD HAS 7 DIP SWITCHES - DOES "NOT" HAVE PUSH BUTTON Show Image
PCA505A068C
[6] In Stock
RPC142A853
BOX,CONTROL(A)
Notes: !, BLACK PLASTIC FRAME
[7] In Stock
SSA561B665
BLOCK TERMI
Substitute: SSA561B211A Notes: TB, T1 Show Image
SSA561B665
[8] In Stock
SSA564A117
FUSE(CURRENT)
Notes: F1 20A
[9] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[10] In Stock
SSA552F399C
CAPACITOR
Notes: CA, C1 Show Image
SSA552F399C
[11] In Stock
PCA551A032A
SENSOR ASSY
Notes: OUTDOOR SENSOR ASSEMBLY -THO-R,D,S,A/ LENGTH 97CM Show Image
PCA551A032A
[12] In Stock
SSA554D183
KILLER,NOISE
SSA554D183
[13] In Stock
PCA504A251L
WIRING ASSY
Notes: PWB3 CNO2- PWB2 CNO1, PWB3 CNO2-PWB2 CNO1
[14] In Stock
PCA504A251N
WIRING ASSY
Notes: PWB2 T26,PWB2 T27,PWB1 CNA- C1 +,C1 -, PWB2 T26,PWB2 T27,PWB1 CNA1-C1 +,C1 - Show Image
PCA504A251N
[15] Contact
PCA504A251Y
WIRING ASSY
Contact
Notes: PWB1 CNI3- PWB2 CNI4
[16] In Stock
PCA504A251Z
WIRING ASSY
Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2 Show Image
PCA504A251Z
[17] In Stock
PCA504A251AA
WIRING ASSY
Notes: PWB1 CNG1- PWB2 CNG2, PWB1 CNG1-PWB2 CNG2 Show Image
PCA504A251AA
[18] In Stock
PCA504A251AC
WIRING ASSY
Notes: PWB1 CNH- 63H1 1,63H1 2, PWB1 CNH-63H1 1,63H1 2 Show Image
PCA504A251AC
[19] In Stock
PCA504A251AD
WIRING ASSY
Notes: PWB1 CNQ1- PWB4 CNQ1, PWB1 CNQ1-PWB4 CNQ1 Show Image
PCA504A251AD
[20] In Stock
PCA504A251AF
WIRING ASSY
Notes: PWB1 CNSW- PWB3 CNQ1, PWB1 CNQ2-PWB5 CNQ1 Show Image
PCA504A251AF
[21] In Stock
PCA504A251P
WIRING ASSY
Notes: PWB1 CNA2- C1 +,C1 -, PWB1 CNA2-C1 +,C1 - Show Image
PCA504A251P

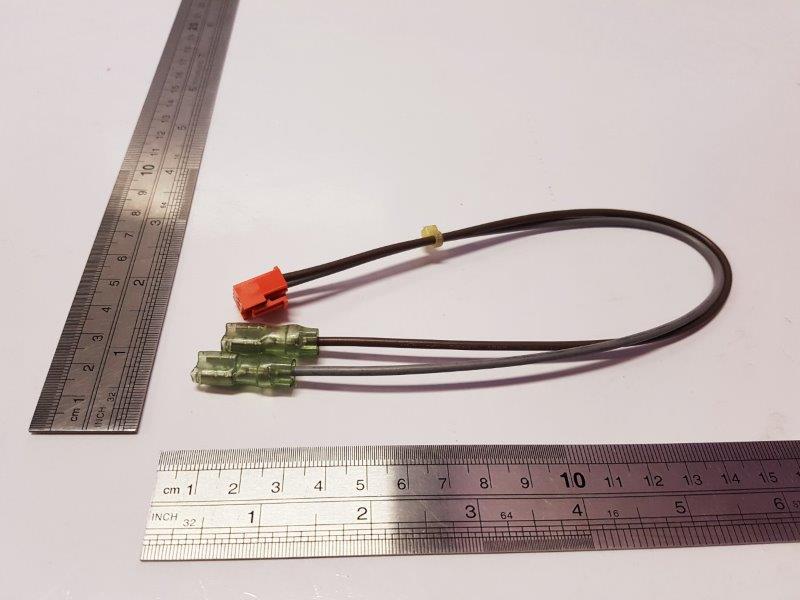

[22] In Stock
PCA504A251AB
WIRING ASSY
Notes: TB1 2,TB1 3- PWB1 CNW2, TB1 2,TB1 3-PWB1 CNW2
[23] Contact
PCA142A153C
LID ASSY,CONTROL
Contact
[24] In Stock
PCB551A029F
SENSOR
Notes: THO-R2
[25] In Stock
SSA561B675A
BLOCK,TERMI
Notes: TB Show Image
SSA561B675A
[26] Contact
PSC011G566A
LABEL,WIRING
Contact
Notes: !
[27] In Stock
SSA554B079
REACTOR
SSA554B079
[28] In Stock
RCJ941F001
SPRING
Notes: FOR THO-D, LENGTH 2.5CM Show Image
RCJ941F001
[29] In Stock
PSA941F001
SPRING LEAF
Substitute: RKJ941F001 Notes: FOR THO-S,R1,R2, 1pc ONLY Show Image
PSA941F001
[30] Contact
PSB011F138A
LABEL,MODEL NAME
Contact
Notes: !
