Parts List
Key:
Instock.
Nilstock.
Contact MRE.

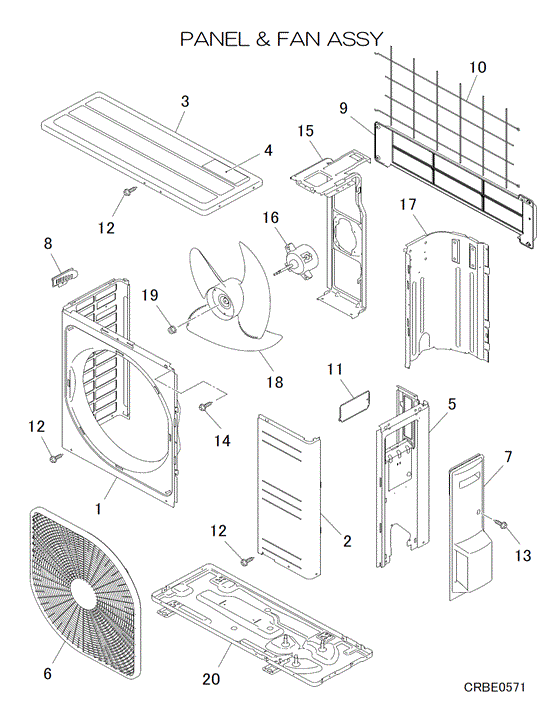

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
In Stock
RYF122A044
PANEL ASSY,FRONT
[2]
In Stock
RYF122A041
PANEL,SERVICE
[3]
In Stock
RYF124A027
PANEL ASSY,TOP
[4]
Contact
RYF011H174
LABEL, NOTICE
Contact
[5]
In Stock
RYF125A013
PANEL ASSY,REAR
[6]
In Stock
RYF435A008
GRILLE,AIR OUTLET
[7]
In Stock
RYF132A033
COVER ASSY,SERVICE
[8]
In Stock
RYF944B001
HANDLE
[9]
In Stock
RYF131A020
GUARD,FIN
[10]
In Stock
RYF131A023
GUARD,FIN
[11]
Contact
RYF142A109
COVER (TB)
Contact
[12]
Contact
W010D04X008
SCREW, TAP
Contact
[13]
Contact
RYF913A002A
SCREW, TAP
Contact
[14]
In Stock
W011D04X010
TAP-SCREW
Notes: 4x10, ***ONE SCREW ONLY*** 1pc ONLY Show Image
[15]
In Stock
RYF116A154
BRACKET,‚ MOTOR
[16]
In Stock
RYF512T027
MOTOR,DC
[17]
Contact
RYF141A040
PLATE ASSY, BAFFLE
Contact
[18]
In Stock
RYF431B010
PROPELLER
[19]
Contact
RYG914B002
NUT, TH
Contact
[20]
Contact
RYF111A048
BASE ASSY
Contact
