DXC21ZTLA-WJ HEAT EXCH AND CONTROL

Name: DXC21ZTLA-WJ HEAT EXCH AND CONTROL
SKU: DXC21ZTLA-WJ HEAT EXCH AND CONTROL
Availability: InStock

DXC21ZTLA-WJ HEAT EXCH AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

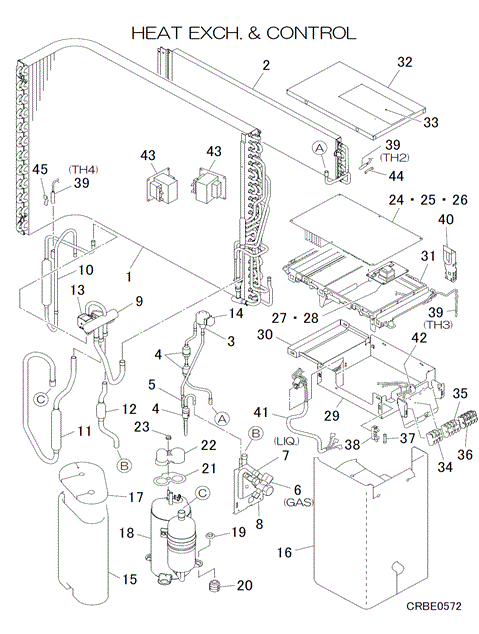

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RYF301A116

HEAT EXCH ASSY(AIR)

[2] In Stock

RYF301A118

HEAT EXCH ASSY(AIR)

[3] In Stock

SSA387F079

VALVE, BODY (EXP)

Notes: EEV Show Image

[3-5] Contact

RYF304A321

PIPING ASSY (EXPAN)

Contact

[4] In Stock

SSA357A059A

STRAINER

Show Image

[5] Contact

RYF315B238A

CAPILLARY

Contact

Notes: ID2.6xOD3.6 L300

[6] In Stock

RYF381A146

VALVE,SERVICE(1/2")

Notes: GAS

[7] In Stock

RYF381A144

VALVE,SERVICE(1/4")

Notes: LIQ.

[8] In Stock

RYF116A150

BRACKET,‚ VALVE

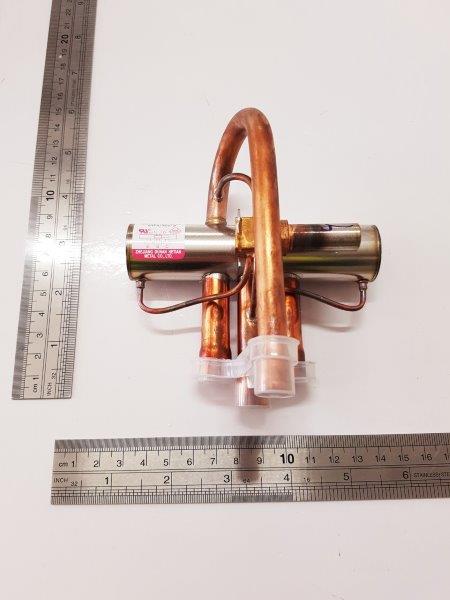

[9] In Stock

SSA382C108

VALVE, S(4WAY)

Notes: 20S Show Image

[10] Contact

RYF321B641

PIPE ASSY (DISCH)

Contact

[11] Contact

RYF321B644

PIPE ASSY (SUCTION)

Contact

[12] Contact

RYF321B633

PIPE ASSY (E)

Contact

[13] In Stock

RYF382F039

COIL ASSY,SOLENOID

Notes: FOR 20S

[14] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[15] Contact

RYF154D153

INSULATION

Contact

[16] Contact

RYF154D152

INSULATION

Contact

[17] Contact

RYF154D154

INSULATION, COMP

Contact

[18-23] In Stock

RYF200A114

FINAL ASSY, COMPRESSOR

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[19] Contact

SSA914C031A

NUT,FLANGE

Contact

[20] Contact

RYF941C014A

CUSHION, RUBBER

Contact

[21] Contact

RYF932C018

GASKET, COVER

Contact

[22] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[23] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[24-26] In Stock

RYF505A062A

PWB ASSY

[25] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F13.15A, 3.15A Show Image

[26] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F31A Show Image

[27-28] In Stock

RYF505A063

PWB ASSY(DRED)

Notes: Demand Response Enabling Device. Only required if wired-in on installation. FOR MORE INFORMATION DISCUSS WITH TECH SUPPORT

[28] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F12A, 2 amp fuse

[29] In Stock

RYF142A101

BOX‚ ASSY,‚ CONTROL

[30] In Stock

RYF132A029

COVER,‚ CONTROL

[31] In Stock

RYF142A108

BOX,‚ CONTROL

[32-33] In Stock

RYF142A115

LID‚ ASSY,‚ CONTROL

[33] Contact

RYF011G055

LABEL, WIRING

Contact

[34] In Stock

SSA561B665

BLOCK,TERMINAL

Notes: TB1, T1 Show Image

[35] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB2, T2 Show Image

[36] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB3, T3 Show Image

[37] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F20A, F 20A‚ - 20 amp fuse Show Image

[38] In Stock

SSA564B088

FUSE HOLDER

Show Image

[39] In Stock

SSA551A245

SENSOR ASSY

Notes: TH2,3,4, TH1,2,3 - Plugs into CNTH - 3 sensors off 1 plug Show Image

[40] In Stock

RYF142A045

HOLDER,‚ SENSOR

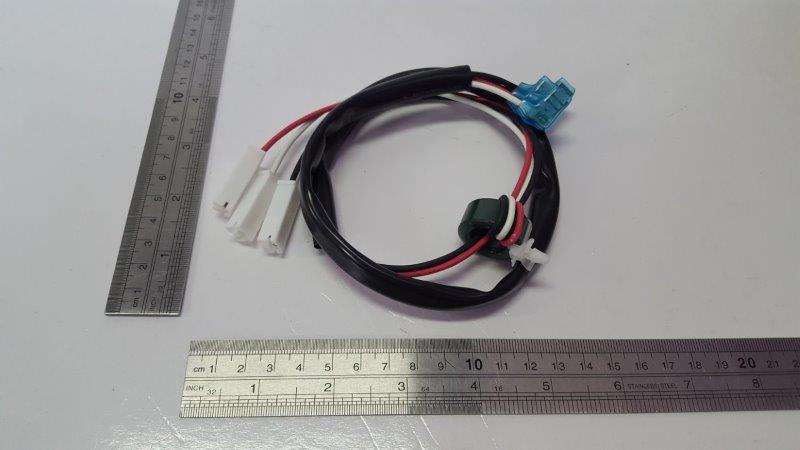

[41] In Stock

RYF504A179

WIRING‚ ASSY

Notes: FOR COMP. Show Image

[42] In Stock

SSA554D173

CORE,FERRITE

[43] In Stock

RYF554B018

REACTOR

[44] Contact

RYF941F001

SPRING,LEAF

Contact

Notes: FOR TH2

[45] Contact

RYG941F004

SPRING, LEAF

Contact

Notes: FOR TH4

[46] Contact

RYF011F149F

LABEL, MODEL NAME

Contact
