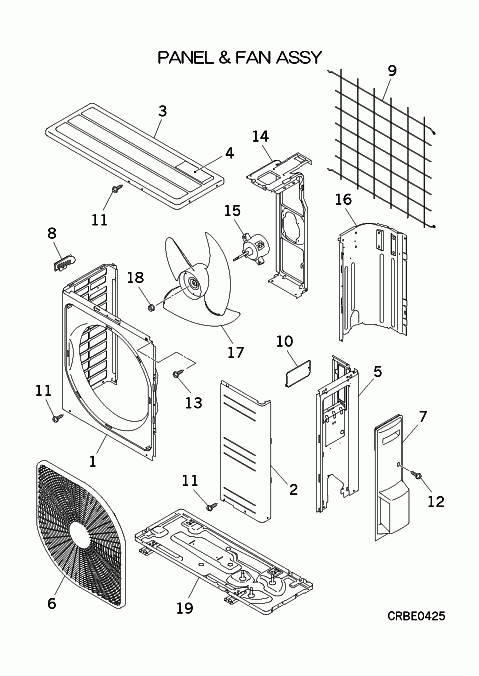

DXC21ZRA-W PANEL AND FAN ASSY

DXC21ZRA-W PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCT122A003D
PANEL ASSY, FRONT
[2] In Stock
RCT122A006
PANEL,SERVICE
Notes: Logo/Sticker not included
[3] In Stock
RCT124A200
PANEL, TOP
[4] In Stock
RSA011H036B
LABEL,NOTICE
Notes: LENGTH 16.5CM Show Image
RSA011H036B
[5] In Stock
RCT125A002
PANEL ASSY,REAR
[6] In Stock
RCT435A002
GRILLE AIR OUTLET
Notes: FAN GRILLE / FAN GUARD
[7] In Stock
RCT132A002
SERVICE COVER ASSY
Notes: PLASTIC SERVICE PANEL - RIGHT SIDE
[8] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[9] In Stock
RCT131A001B
GUARD,FIN
[10] In Stock

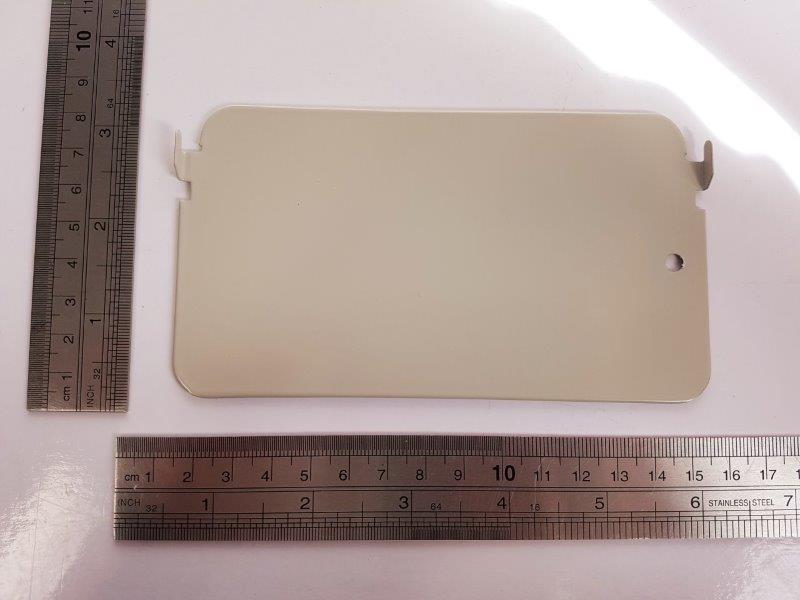

RCT142A203
COVER(TB)
RCT142A203
[11] In Stock
SSA913A034F
SCREW,TAP
Notes: 4x8, 1pc ONLY, 4X8 Show Image
SSA913A034F
[12] In Stock
SSA913A034L
SCREW,TAP
Notes: 4x12, 1pc ONLY
[13] In Stock
SSA913A008F
SCREW,TAP
Notes: 4x10, 1pc ONLY, 4X10
[14] In Stock
RCT116A003
BRACKET
Notes: For Fan Motor
[15] In Stock
SSA512T061G
MOTOR,DC
Notes: CONDENSER FAN MOTOR
[16] In Stock
RCT141A201
PLATE ASSY,BAFFLE
[17] In Stock
SSA431B250
FAN
Notes: FAN BLADE
[18] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[19] In Stock
RCT111A001AB
BASE ASSY
SKU: DXC21ZRA-W PANEL AND FAN ASSY Category:
