DXC21ZMA-S PANEL AND FAN ASSY

DXC21ZMA-S PANEL AND FAN ASSY

Available Parts

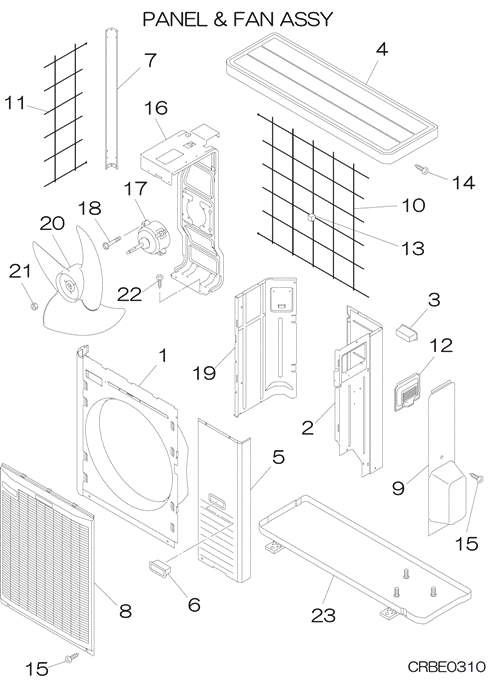

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCR122A001 PANEL ASSY, In Stock
  • [2-3] RCR125A002C PANEL ASSY,REAR In Stock
  • [3] SSA944B031A HANDLE In Stock Show Image
  • [4] RCR124A002N PANEL ASSY,TOP In Stock
  • [5] RCR122A006B PANEL,SERVICE In Stock Substitute: RCR122A003A
  • [5-6] RCR122A004A PANEL ASSY,SERVICE In Stock
  • [6] SSA944B031A HANDLE In Stock Show Image
  • [7] RCR115A002A SUPPORT,CORNER In Stock
  • [8] RCR435A001 GRILLE,AIR In Stock Notes: AIR OUTLET GRILLE / FAN GUARD
  • [9] RCR132A004 COVER ASSY In Stock Notes: PLASTIC
  • [10] RCR131A001 GUARD,FIN(A In Stock
  • [11] RCR131A002 GUARD,FIN(B In Stock
  • [12] RCR132A002 COVER,TERMI Out of Stock Show Image
  • [13] RCR941G001 CUSHION,RUBBER In Stock Notes: ! Show Image
  • [14] SSA913A034F SCREW,TAP In Stock Notes: 1PC ONLY, 4X8, 4X8 Show Image
  • [15] SSA913A034G SCREW,TAP In Stock Notes: 1PC ONLY, 4X12, 4X12 Show Image
  • [16] RCR116A001 BRACKET,MOTOR In Stock
  • [17] SSA512T076J MOTOR,DC In Stock Substitute: SSA512T076M Notes: CONDENSER FAN MOTOR Show Image
  • [18] SSA913B038 SCREW,TAP In Stock Notes: 1PC ONLY - FOR FAN MOTOR Show Image
  • [19] RCR141A001 PLATE,BAFFLE In Stock
  • [20] SSA431B256 FAN, PROPELLER In Stock
  • [21] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: 1PC, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [22] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [23] RCR111A003D BASE ASSY In Stock
SKU: DXC21ZMA-S PANEL AND FAN ASSY Category:
