Parts List
Key:
Instock.
Nilstock.
Contact MRE.

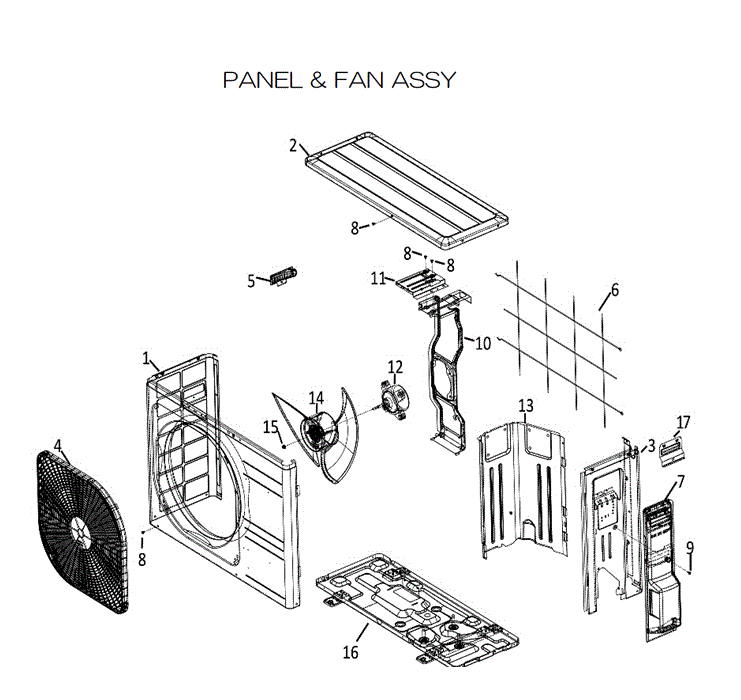

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
In Stock
RYF122A043
PANEL ASSY,FRONT
[2]
In Stock
RYF124A026
PANEL ASSY,TOP
[3]
In Stock
RYF123A042
PANEL ASSY,SIDE(R)
[4]
In Stock
RYF435A009
GRILLE,AIR OUTLET
[5]
In Stock
RYF944B001
HANDLE
[6]
In Stock
RYF131A022
GUARD,FIN
[7]
In Stock
RYF132A032
COVER ASSY,SERVICE
[8]
Contact
RYF913A002
SCREW, TAP
Contact
[9]
Contact
RYF913A002A
SCREW, TAP
Contact
[10]
In Stock
RYF116A157
BRACKET,‚ MOTOR
[11]
Contact
RYF116A158
BRACKET, MOTOR(U)
Contact
[12]
In Stock
RYF512T026
MOTOR,DC
[13]
Contact
RYF141A038
PLATE ASSY, BAFFLE
Contact
[14]
In Stock
RYF431B011
PROPELLER
[15]
Contact
RYG914B001
NUT, TH
Contact
[16]
In Stock
RYF111A043
BASE ASSY
[17]
In Stock
RYF142A110
COVER(TB)
