DXC18ZTLA-WJ HEAT EXCH AND CONTROL

Name: DXC18ZTLA-WJ HEAT EXCH AND CONTROL
SKU: DXC18ZTLA-WJ HEAT EXCH AND CONTROL
Availability: InStock

DXC18ZTLA-WJ HEAT EXCH AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

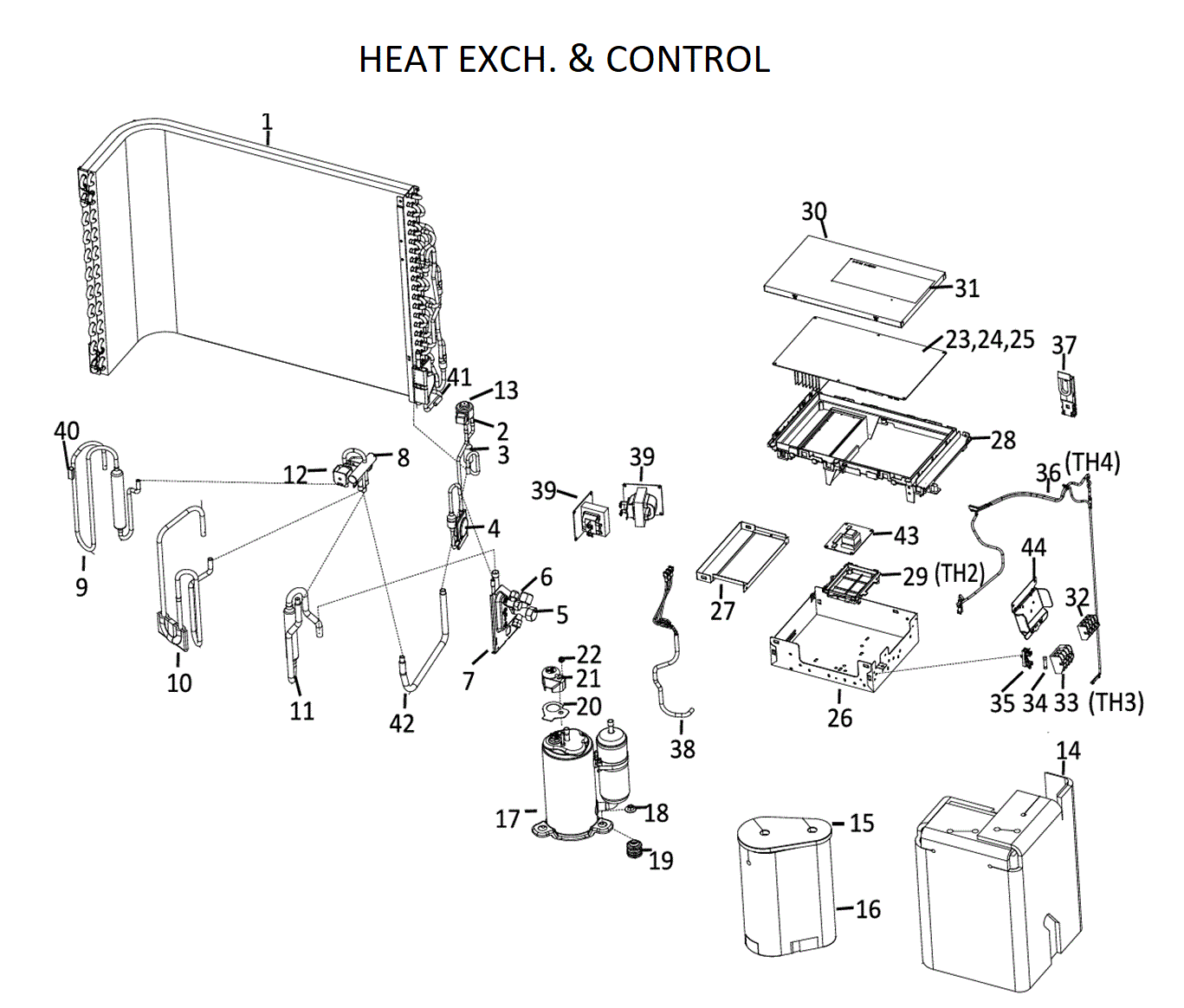

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RYF301A114

HEAT EXCH ASSY(AIR)

[2] In Stock

SSA387F079

VALVE, BODY (EXP)

Notes: EEV Show Image

[2-4] Contact

RYF304A318

PIPING ASSY (EXPAN)

Contact

[3] In Stock

SSA357A059A

STRAINER

Show Image

[4] Contact

RYF315B240

CAPILLARY

Contact

[5] In Stock

RYF381A145

VALVE,SERVICE(1/2")

Notes: GAS

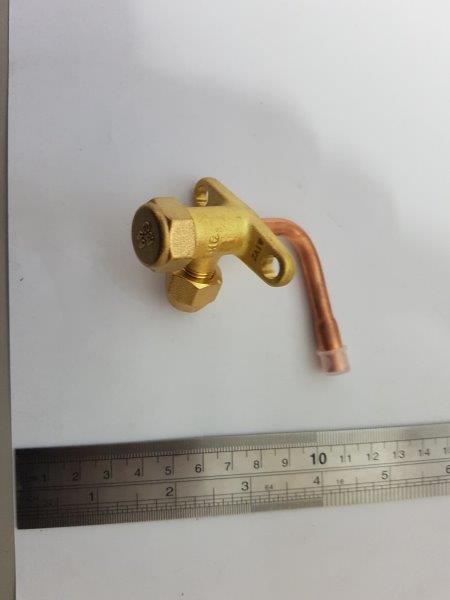

[6] In Stock

RYF381A144

VALVE,SERVICE(1/4")

Notes: LIQ.

[7] In Stock

RYF116A150

BRACKET,‚ VALVE

[8] In Stock

SSA382C107

VALVE, S(4WAY)

Notes: Reversing Valve Body

[9] Contact

RYF321B609

PIPE ASSY (DISCH)

Contact

[10] Contact

RYF321B606

PIPE ASSY (SUCTION)

Contact

[11] Contact

RYF321B612

PIPE ASSY (E)

Contact

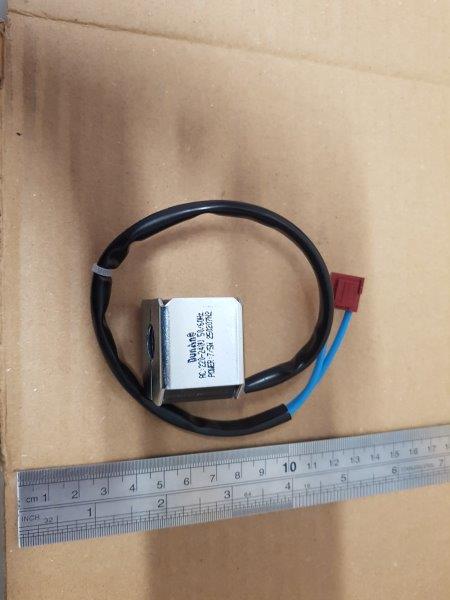

[12] In Stock

RYF382F039

COIL ASSY,SOLENOID

[13] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[14] Contact

RYF154D151

INSULATION

Contact

[15] Contact

RYF154D149

INSULATION, COMP

Contact

[16] Contact

RYF154D150

INSULATION, COMP

Contact

[17-22] In Stock

RYF200A113

FINAL ASSY, COMPRESSOR

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[18] Contact

SSA914C031A

NUT,FLANGE

Contact

[19] In Stock

SSA941C362

CUSHION, RUBBER

[20] Contact

PMC932C004

GASKET, COVER

Contact

[21] Contact

PMC947K004

COVER, TERMINAL

Contact

[22] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[23] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F15A, 3.15A Show Image

[23-25] In Stock

RYF505A062

PWB ASSY

[24] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F1A Show Image

[25] Contact

SSA564A170B

FUSE (CURRENT)

Contact

Notes: F20A

[26] In Stock

RYF142A113

BOX‚ ASSY,‚ CONTROL

[27] In Stock

RYF132A029

COVER,‚ CONTROL

[28] In Stock

RYF142A108

BOX,‚ CONTROL

[29] In Stock

RYF129A023

BOX,CONTROL(DR)

[30-31] In Stock

RYF142A114

LID‚ ASSY,‚ CONTROL

[31] Contact

RYF011G054

LABEL, WIRING

Contact

[32] In Stock

SSA561B723C

BLOCK,TERMINAL

Notes: TB1 Show Image

[33] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB2, T3 Show Image

[34] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F20A, F 20A‚ - 20 amp fuse Show Image

[35] In Stock

SSA564B088

FUSE HOLDER

Show Image

[36] In Stock

SSA551A245

SENSOR ASSY

Notes: TH2,3,4, TH1,2,3 - Plugs into CNTH - 3 sensors off 1 plug Show Image

[37] In Stock

RYF142A045

HOLDER,‚ SENSOR

[38] In Stock

RYF504A176

WIRING‚ ASSY

Notes: FOR COMP.

[39] In Stock

RYF554B029

REACTOR

[40] Contact

RYF941F001

SPRING,LEAF

Contact

[41] Contact

RYG941F004

SPRING, LEAF

Contact

[42] Contact

RYF321B615

PIPE(C)

Contact

[43] In Stock

RYF505A063

PWB ASSY(DRED)

Notes: Demand Response Enabling Device. Only required if wired-in on installation. FOR MORE INFORMATION DISCUSS WITH TECH SUPPORT

[44] Contact

RYF116A159

BRACKET(TB)

Contact

Notes: cannot buy separately
