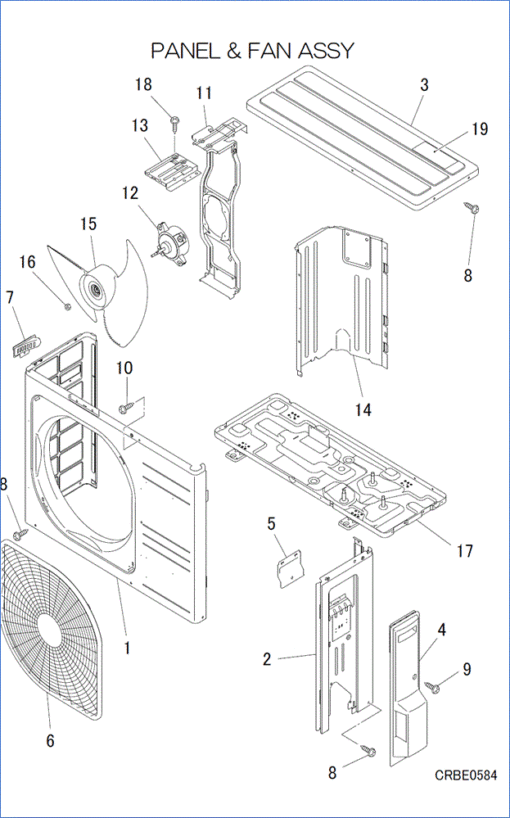

DXC18ZTLA-W PANEL AND FAN ASSY

DXC18ZTLA-W PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCV122A005D
PANEL ASSY, FRONT
Contact
[2] In Stock
RCV123A005D
PANEL ASSY, SIDE (R )
[3] In Stock
RCV124A003
PANEL, TOP
[4-5] In Stock
RCV132A004A
COVER ASSY, SERVICE
[5] Contact
RCV142A024
COVER (TB)
Contact
[6] In Stock
RCV435A002
GRILLE, AIR OUTLET
Notes: AIR OUTLET GRILLE / FAN GUARD
[7] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[8] In Stock
SSA913A034K
SCREW,TAP
Notes: 4x8
[9] In Stock
SSA913A034L
SCREW,TAP
Notes: 4x12, 1pc ONLY
[10] In Stock
SSA913A008F
SCREW,TAP
Notes: 4x10, 1pc ONLY, 4X10
[11] In Stock
RCV116A006
BRACKET ASSY
Notes: mounting Bracket for Fan Motor
[12] In Stock
SSA512T094
MOTOR,DC
Notes: CONDENSER FAN MOTOR. HAS WIRING HARNESS ATTACHED.
[13] In Stock
RCV116A003
BRACKET,MOTOR(U)
Show Image
RCV116A003
[14] Contact
RPC141A200
PLATE ASSY,BAFFLE
Contact
[15] In Stock
SSA431B253
PROPELLER
Notes: OUTDOOR FAN BLADE
[16] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[17] In Stock
RCV111A001F
BASE ASSY
[18] In Stock
W011D04X008
TAP SCREW
Notes: 4x8, 1pc ONLY Show Image
W011D04X008
[19] In Stock
RSA011H036B
LABEL,NOTICE
Notes: LENGTH 16.5CM Show Image
RSA011H036B
SKU: DXC18ZTLA-W PANEL AND FAN ASSY Category:
