DXC18ZTLA-W HEAT EXCH. AND CONTROL

Name: DXC18ZTLA-W HEAT EXCH. AND CONTROL
SKU: DXC18ZTLA-W HEAT EXCH. AND CONTROL
Availability: InStock

DXC18ZTLA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

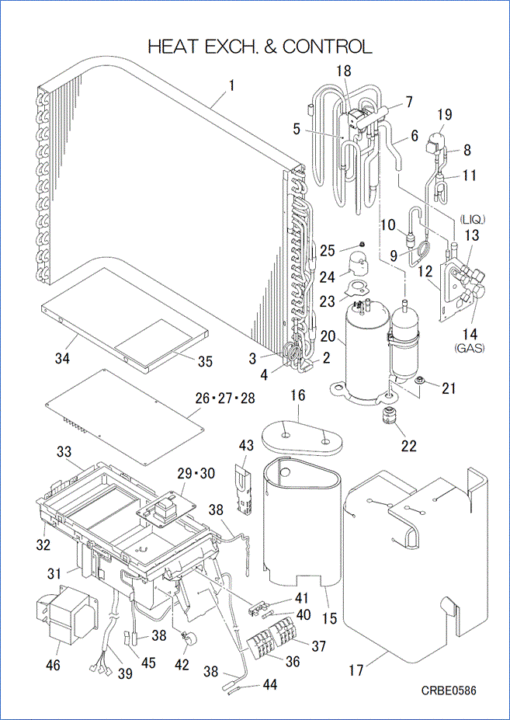

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] In Stock

RCV301A009

HEAT EXCH ASSY (AIR)

[2-4] Contact

RCV321A092

PIPE ASSY

Contact

[3] Contact

RCV315B202

CAPILLARY

Contact

Notes: D2.6xD3.6 L300

[4] In Stock

RCV315B202A

CAPILLARY

Notes: D2.6xD3.6 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[5] Contact

RCV321A903

PIPE ASSY (DISCH)

Contact

[6] Contact

RCV321A906

PIPE ASSY (E)

Contact

[7] Contact

SSA382C107

VALVE, S(4WAY)

Contact

Notes: 20S

[8] In Stock

SSA387F079

VALVE, BODY (EXP)

Notes: EEV

[8-11] Contact

RCV304A931

PIPING ASSY (EXPAN)

Contact

[9] Contact

RCV315B004

CAPILLARY

Contact

Notes: D2.6xD3.6 L320

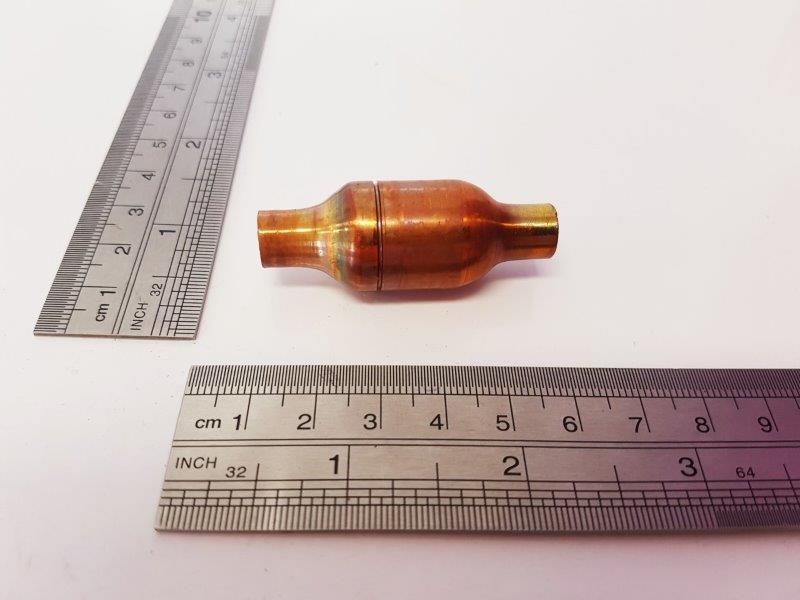

[10] In Stock

SSA357A059A

STRAINER

[11] In Stock

RCN325A700

PIPE,SHELL

Show Image

[12] Out of Stock

RCS116A004B

BRACKET,VALVE

[13] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[14] In Stock

RCV381A002

VALVE,SERVICE(1/2")

Notes: GAS

[15] Contact

RCV154D930

INSULATION, COMP

Contact

[16] Contact

RCV154D003

INSULATION,COMP

Contact

[17] Contact

RCV154D931

INSULATION

Contact

[18] Contact

RSA382F022A

COIL ASSY, SOLENOID

Contact

Notes: FOR 20S

[19] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[20] In Stock

RMC201A074A

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[21] Contact

SSA914C033A

NUT, FLANGE

Contact

[22] In Stock

SSA941C362

CUSHION, RUBBER

[23] Contact

PMC932C004

GASKET, COVER

Contact

[24] Contact

PMC947K004

COVER, TERMINAL

Contact

[25] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[26-28] In Stock

RCR505A110FD

PWB ASSY

Show Image

[27] In Stock

SSA564A132

FUSE(CURRENT)

Notes: F13.15A, 3.15A Show Image

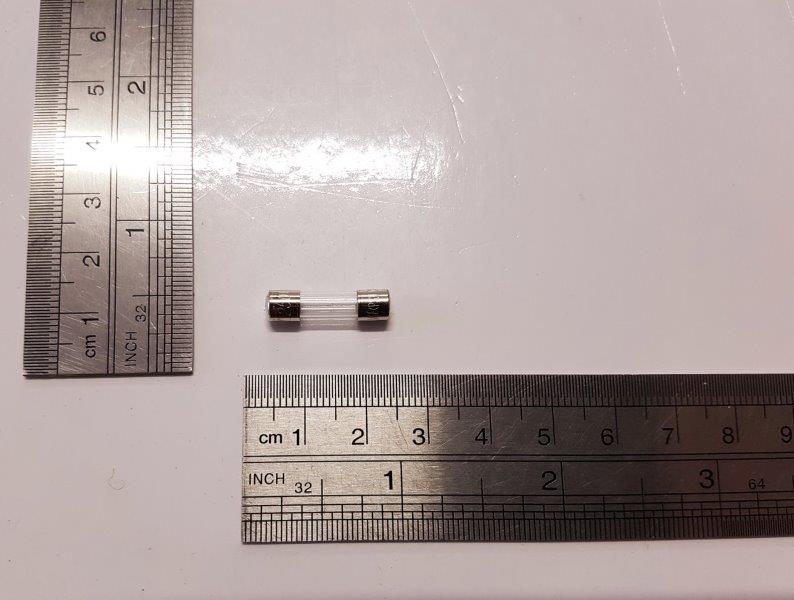

[28] In Stock

SSA564A149ZA

FUSE(CURRENT)

Notes: F31A

[29-30] In Stock

RCT505A304D

PWB ASSY (DRED)

[30] In Stock

SSA564A149AC

FUSE(CURRENT)

Notes: F12A

[31] In Stock

RCV142A025

BOX ASSY, CONTROL

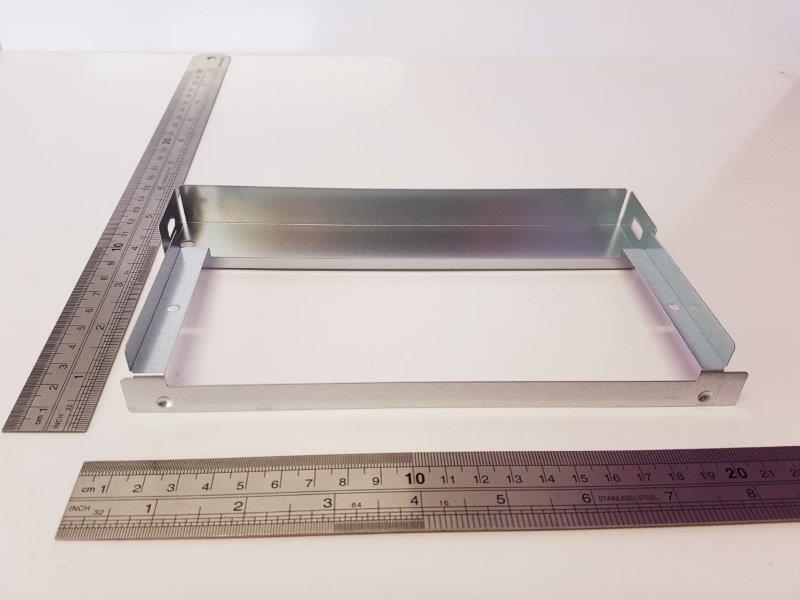

[32] In Stock

RCR132A200

COVER,CONTROL

[33] In Stock

RCR142A202A

BOX,CONTROL

[34-35] In Stock

RCV142A027C

LID ASSY, CONTROL

[35] Contact

RCV011G005D

LABEL, WIRING

Contact

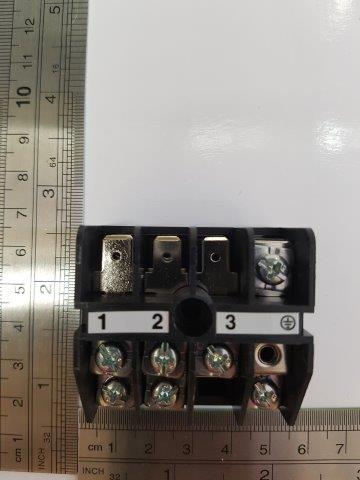

[36] In Stock

SSA561B723C

BLOCK,TERMINAL

Notes: TB1 Show Image

[37] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: TB2, T3 Show Image

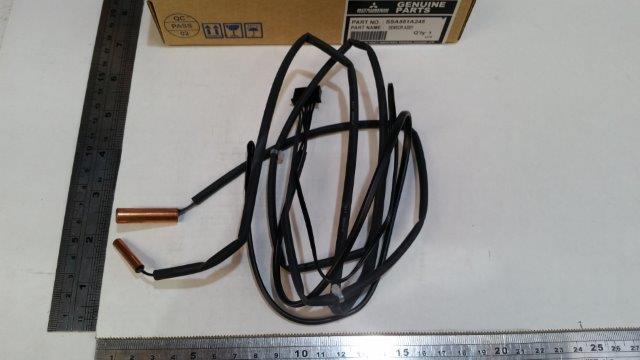

[38] In Stock

SSA551A245

SENSOR ASSY

Notes: TH1,2,3 Show Image

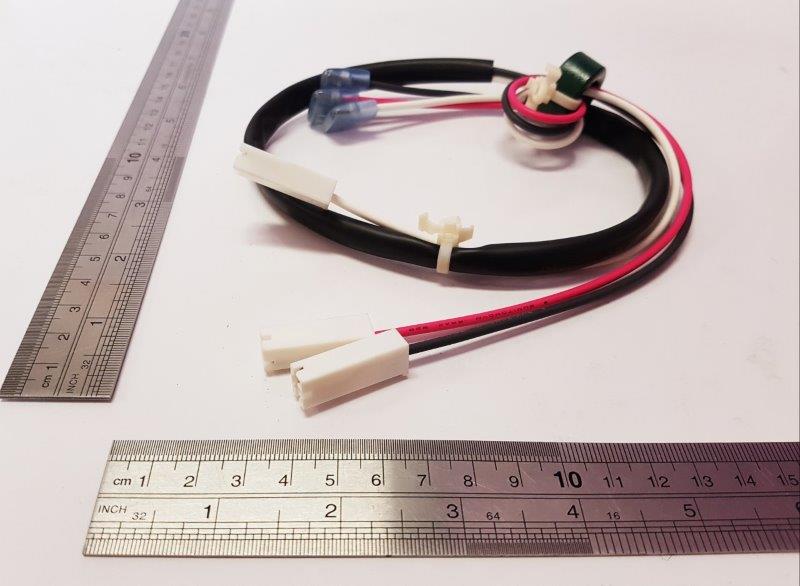

[39] In Stock

RCT504A020C

WIRING ASSY

Notes: FOR COMP.

[40] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F20A, F 20A‚ - 20 amp fuse Show Image

[41] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[42] In Stock

SSA554D173

CORE,FERRITE

[43] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[44] In Stock

RKF941F002

SPRING

Notes: FOR HEAT EXCH PIPE SENSOR, LENGTH 2.8CM Show Image

[45] In Stock

RCJ941F001

SPRING

Notes: FOR DISCHARGE PIPE SENSOR, LENGTH 2.5CM Show Image

[46] In Stock

SSA554B142

REACTOR

[47] Contact

RWC011F050CF

LABEL, MODEL NAME

Contact
