DXC18ZMA-S HEAT EXCH. AND CONTROL

DXC18ZMA-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock
RCT504A001
HARNESS ASSY
Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image
RCT504A001
[1] In Stock
RCT301A005
HEAT EXCH ASSY(AIR
[2] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[2-5] In Stock
RCT304A016
PIPING ASSY(EXPAN)
[3] In Stock
SSA357A005A
STRAINER
SSA357A005A
[4] In Stock
RCT315B002
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image
RCT315B002
[5] Contact
RCM325A300D
PIPE,SHELL
Contact
[6] In Stock
RCS116A004
BRACKET,VALVE
[7] In Stock
RCS381A004B
SERVICE VALVE
Notes: LIQ., (1/4") LIQ. Show Image
RCS381A004B
[8] In Stock
RCT381A002
SERVICE VALVE
Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image
RCT381A002
[9] In Stock
SSA382C092
VALVE,S(4WAY)
Notes: 20S Show Image
SSA382C092
[10] In Stock
RCT321A066A
PIPING ASSY(DISCH)
[11] In Stock
RCT321A069
PIPING ASSY(SUCTION)
[12] In Stock
RSA382F013L
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S‚ (REVERSING VALVE) Show Image
RSA382F013L
[13] In Stock
SSA382F210AY
SOLENOID COIL (EEV)
Notes: FOR EEV, SOLENOID COIL FOR EEV
[14] Contact
RCT154D004
INSULATION,COMP
Contact
[15] Contact
RCV154D003
INSULATION,COMP
Contact
[16] Contact
RCT154D001F
INSULATION
Contact
[17] Contact
RCT154D006B
INSULATION
Contact
[18] In Stock
RSA201A036
COMPRESSOR ASSY
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[19] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[20] In Stock
SSA941C354
CUSHION,RUBBER
SSA941C354
[21] In Stock
RSA932C004
GASKET
RSA932C004
[22] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[23] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[24] In Stock

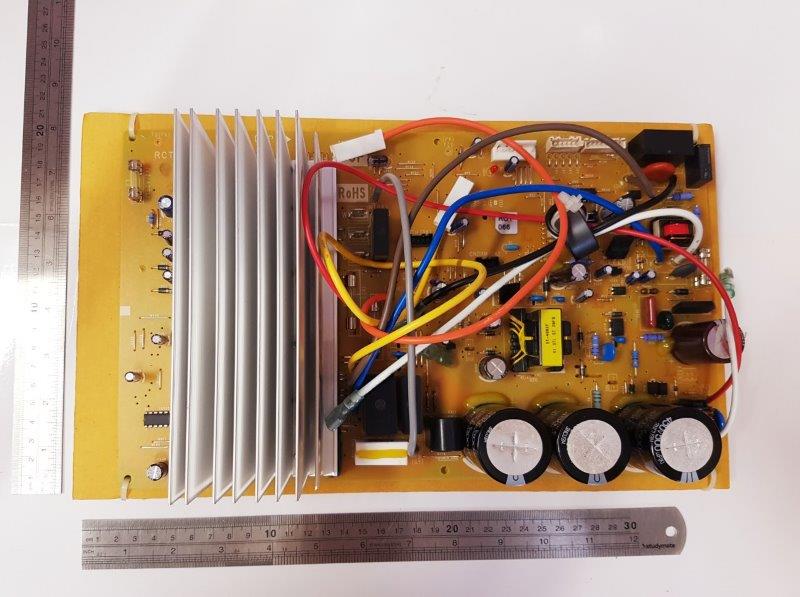

RCT505A302HD
PWB (MAIN)
[25] In Stock
RCT505A004A
PWB ASSY(SUB)
RCT505A004A
[26] In Stock
RCT505A304
DRED
Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
RCT505A304
[27] Contact
RCT011G003
LABEL,WIRING
Contact
[28] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[29] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[30] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: T3 Show Image
SSA561B733
[31] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[32] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[33] In Stock
SSA551A216N
SENSOR ASSY
Notes: SENSOR ASSEMBLY - HAS 3 SENSORS ON 1 PLUG Show Image
SSA551A216N
[34] In Stock
RCV504A001
WIRING ASSY
Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image
RCV504A001
[35] In Stock
RCV129A001A
HOLDER,SENSOR
RCV129A001A
[36] In Stock
SSA554D173
CORE,FERRITE
[37] In Stock
SSA554B113
REACTOR
SSA554B113
[38] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[39] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[40] Contact
RWC011F016BT
LABEL,MODEL NAME
Contact
