DXC18ZJ-S PANEL AND FAN ASSY

Name: DXC18ZJ-S PANEL AND FAN ASSY
SKU: DXC18ZJ-S PANEL AND FAN ASSY
Availability: InStock

DXC18ZJ-S PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT122A003D

PANEL ASSY, FRONT

[2] In Stock

RCT122A006

PANEL,SERVICE

Notes: Logo/Sticker not included

[3] In Stock

RCT124A002

PANEL,TOP

[4] In Stock

RCT125A002

PANEL ASSY,REAR

[5] In Stock

RCT435A001

GRILLE,AIR OUTLET

Notes: AKA FAN GUARD

[6] In Stock

RCT132A002

SERVICE COVER ASSY

Notes: PLASTIC SERVICE PANEL - RIGHT SIDE

[7] In Stock

SSA944B036B

HANDLE

Notes: LENGTH 9.7CM Show Image

[8] In Stock

RCT131A001B

GUARD,FIN

[9] In Stock

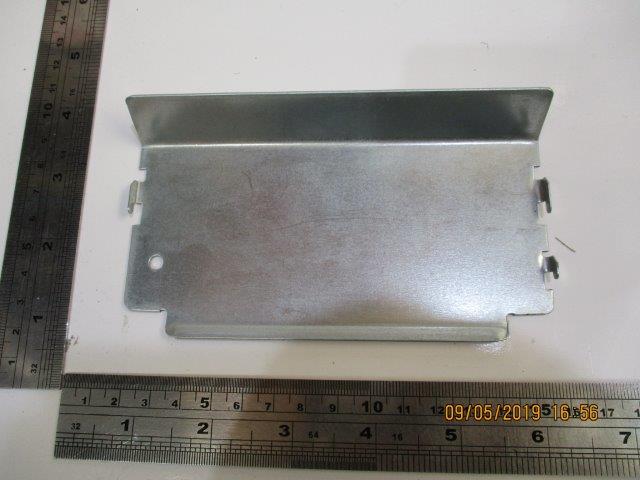

RCT142A004

COVER(TB)

Show Image

[10] In Stock

SSA913A034F

SCREW,TAP

Notes: 4X8, 1pc ONLY, 4X8 Show Image

[11] In Stock

SSA913A034L

SCREW,TAP

Notes: 4X12, 1pc ONLY

[12] In Stock

SSA913A008F

SCREW,TAP

Notes: 4X10, 1pc ONLY, 4X10

[13] In Stock

RCT116A003

BRACKET

Notes: For Fan Motor

[14] In Stock

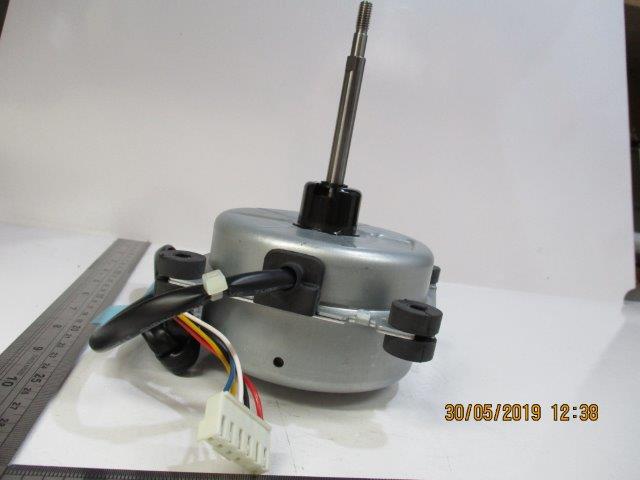

SSA512T091A

MOTOR, DC

Notes: CONDENSER FAN MOTOR Show Image

[15] In Stock

RCT141A001A

PLATE,BAFFLE

[16] In Stock

SSA431B250

FAN

Notes: FAN BLADE

[17] In Stock

SSA914B007AC

NUT TH

Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image

[18] In Stock

RCT111A001AG

BASE ASSY

[19] In Stock

W011D04X008

TAP SCREW

Notes: 4X8, 1pc ONLY Show Image
