DXC18Z3-S HEAT EXCH. AND CONTROL

DXC18Z3-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock
RCT504A001
HARNESS ASSY
Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image
RCT504A001
[1] In Stock
RCT301A005
HEAT EXCH ASSY(AIR
[2] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[2-5] In Stock
RCT304A016
PIPING ASSY(EXPAN)
[4] In Stock
RCT315B002
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image
RCT315B002
[5] Contact
RCM325A300D
PIPE,SHELL
Contact
[6] In Stock
RCS116A004
BRACKET,VALVE
[7] In Stock
RCS381A004B
SERVICE VALVE
Notes: LIQ., (1/4") LIQ. Show Image
RCS381A004B
[8] In Stock
RCT381A002
SERVICE VALVE
Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image
RCT381A002
[9] In Stock
SSA382C092
VALVE,S(4WAY)
Notes: 20S Show Image
SSA382C092
[10] Contact
RCD325A700
PIPE,SHELL
Contact
[11] Contact
RCK325A501F
PIPE,SHELL
Contact
[12] In Stock
RSA382F013L
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S‚ (REVERSING VALVE) Show Image
RSA382F013L
[13] In Stock
SSA382F210AY
SOLENOID COIL (EEV)
Notes: FOR EEV, SOLENOID COIL FOR EEV
[14] Contact
RCT154D004
INSULATION,COMP
Contact
[15] Contact
RCV154D003
INSULATION,COMP
Contact
[16] In Stock
RSA201A036
COMPRESSOR ASSY
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[17] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[18] In Stock
SSA941C354
CUSHION,RUBBER
SSA941C354
[19] In Stock
RSA932C004
GASKET
RSA932C004
[20] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[21] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[22] In Stock

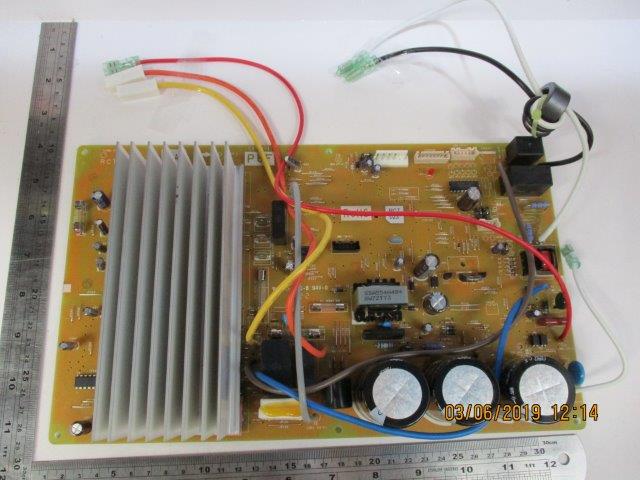

RCT505A005LA
PWB (MAIN)
Notes: MAIN / INVERTER BOARD - Show Image
RCT505A005LA
[23] In Stock

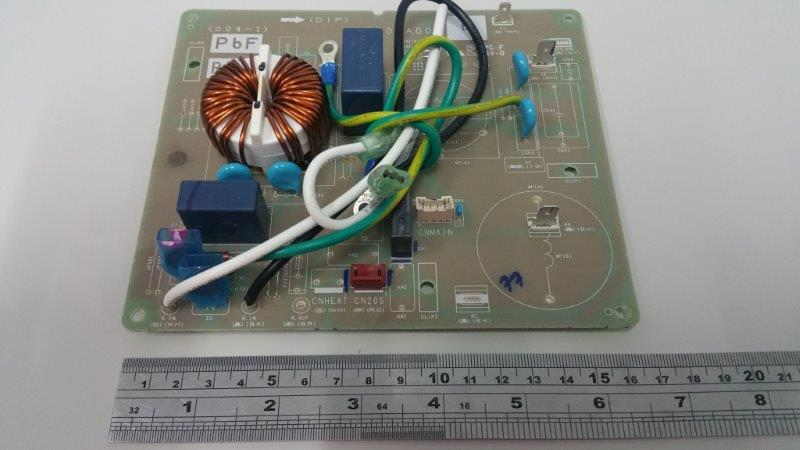

RCT505A004B
PWB ASSY (SUB)
RCT505A004B
[24] Contact
RCT011G002BC
LABEL,WIRING
Contact
[25] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[26] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[27] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[28] In Stock
SSA551A216L
SENSOR ASSY
Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image
SSA551A216L
[29] In Stock
RCV504A001
WIRING ASSY
Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image
RCV504A001
[30] In Stock
SSA554B113
REACTOR
SSA554B113
[31] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[32] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[33] In Stock
RCV129A001A
HOLDER,SENSOR
RCV129A001A
[34] Contact
RWC011F016L
LABEL,MODEL NAME
Contact
