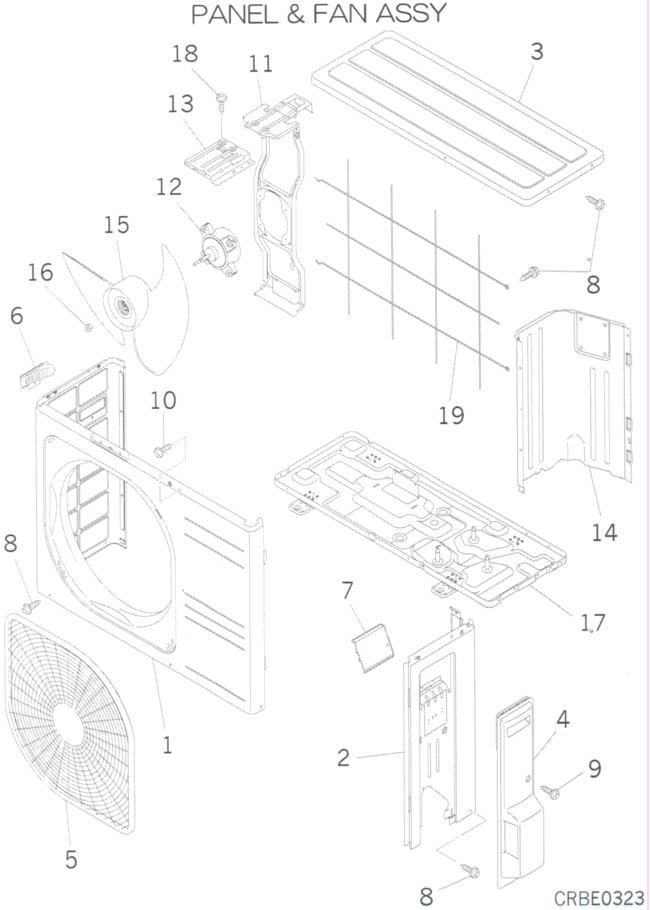

DXC12ZJ-S PANEL AND FAN ASSY

DXC12ZJ-S PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCV122A005 PANEL ASSY,FRONT In Stock
  • [2] RCV123A005 PANEL ASSY,SIDE(R) In Stock
  • [3] RCV124A003 PANEL, TOP In Stock Notes: TOP PANEL
  • [4] RCV132A004 COVER ASSY,SERVICE Out of Stock Notes: PIPE AND ELECTRICAL COVER AKA SERVICE PANEL (THE PLASTIC ONE)
  • [5] RCV435A001A GRILLE,AIR OUTLET In Stock Notes: COVERS FAN BLADE/MOTOR - AIR DISCHARGE -AKA FAN GUARD
  • [6] SSA944B036B HANDLE In Stock
  • [7] RCV142A001 COVER(TB) In Stock Show Image
  • [8] SSA913A034F SCREW,TAP In Stock Notes: 1PC ONLY, 4X8, 4X8 Show Image
  • [9] SSA913A034G SCREW,TAP In Stock Notes: 1PC ONLY, 4X12, 4X12 Show Image
  • [10] SSA913A008F SCREW,TAP Contact Notes: 1PC ONLY, 4X10, 4X10   Contact
  • [11] RCV116A006 BRACKET ASSY In Stock Notes: FAN MOTOR MOUNTING BRACKET
  • [12] SSA512T094 MOTOR,DC In Stock Notes: CONDENSER FAN MOTOR
  • [13] RCV116A003 BRACKET,MOTOR(U) In Stock Show Image
  • [14] RCV141A002A PLATE,BAFFLE In Stock Substitute: RCV141A002F
  • [15] SSA431B253 PROPELLER In Stock
  • [16] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [17] RCV111A001 BASE ASSY In Stock
  • [18] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [19] RCV131A001 GUARD,FIN In Stock
SKU: DXC12ZJ-S PANEL AND FAN ASSY Category:
