DXC12Z3-S HEAT EXCH. AND CONTROL

DXC12Z3-S HEAT EXCH. AND CONTROL

Available Parts

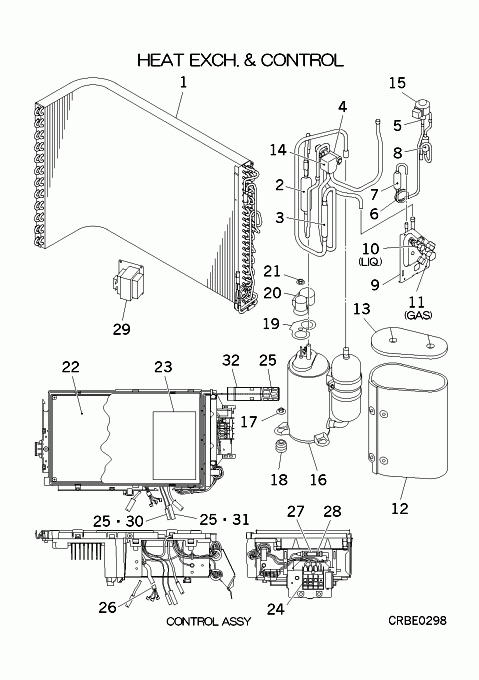

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCV301A007 HEAT EXCH ASSY(AIR Out of Stock
  • [2] RCD325A700 PIPE,SHELL Contact   Contact
  • [3] RCK325A501C PIPE,SHELL Contact Notes: !   Contact
  • [4] SSA382C091 VALVE,S(4WAY) In Stock Notes: 20S, 20S
  • [5] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY, EEV
  • [5-8] RCV304A009 PIPING ASSY(EXPAN) In Stock Show Image
  • [6] RCV315B001 CAPILLARY In Stock Notes: !D2.6 X D4.0 L300, !D2.6XD4.0 L300
  • [7] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [8] RCN325A700 PIPE,SHELL In Stock Show Image
  • [9] RCS116A004 BRACKET,VALVE Contact   Contact
  • [10] RCS381A004B SERVICE VALVE In Stock Substitute: RCS381A004A Notes: (1/4) LIQ., LIQ. Show Image
  • [11] RCV381A001 VALVE,SERVICE(3/8 In Stock Substitute: RCV381A001A Notes: (SUCTION 3/8) GAS, GAS Show Image
  • [12] RCS154D012 INSULATION,COMP In Stock Notes: SIDE, SIDE
  • [13] RCS154D009 INSULATION,COMP Contact Notes: UPPER, UPPER   Contact
  • [14] RSA382F013K COIL ASSY,SOLENOID In Stock Notes: FOR 20S - 2 BLUE WIRES - RED PLUG, FOR 20S Show Image
  • [15] SSA382F210AY SOLENOID COIL (EEV) In Stock Notes: SOLENOID COIL FOR EEV, FOR EEV
  • [16] AHT201A864DR COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***
  • [17] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [18] SSA941C346 CUSHION,RUBBER Contact   Contact
  • [19] RSA932C004 GASKET In Stock Show Image
  • [20] RSA947K005 COVER TERMI In Stock Show Image
  • [21] SSA914C016 NUT In Stock Notes: 1PC Show Image

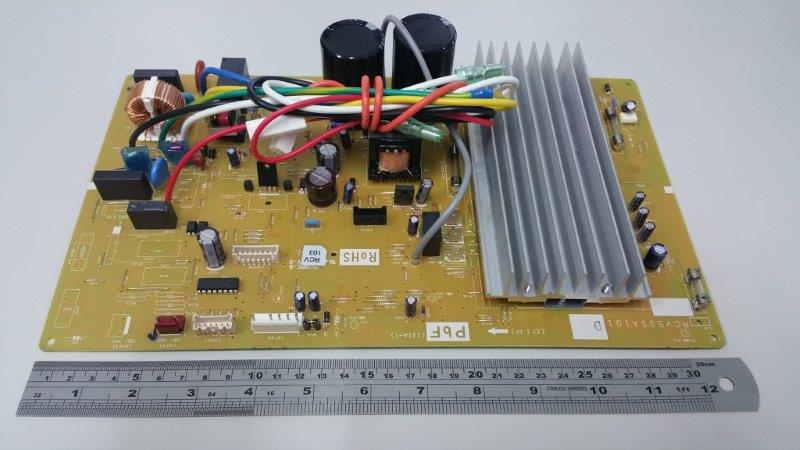

  • [22] RCV505A101D PWB ASSY In Stock Notes: OUTDOOR MAIN BOARD - (ONLY OUTDOOR BOARD) Show Image
  • [23] RCV011G002BC LABEL,WIRING Contact   Contact
  • [24] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [25] SSA551A216L SENSOR ASSY In Stock Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image
  • [26] RCV504A001 WIRING ASSY In Stock Notes: WIRING HARNESS FOR COMPRESSOR, FOR COMP. Show Image
  • [27] SSA564A136 FUSE In Stock Notes: 15A
  • [28] SSA564B088 HOLDER,FUSE In Stock Show Image
  • [29] SSA554B099A REACTOR In Stock Show Image
  • [30] RKF941F002 SPRING In Stock
  • [31] RCJ941F001 SPRING In Stock
  • [32] RCV129A001A HOLDER,SENSOR In Stock Show Image
  • [33] RWC011F016J LABEL,MODEL NAME Contact   Contact
SKU: DXC12Z3-S HEAT EXCH. AND CONTROL Category:
