DXC09Z3-S PANEL AND FAN ASSY

DXC09Z3-S PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

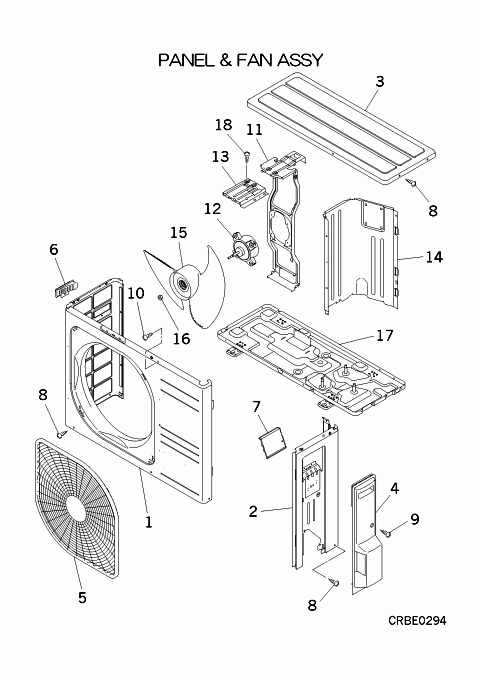

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCV122A001
FRONT PANEL
[2] In Stock
RCV123A001
PANEL,SIDE(R)
[3] In Stock
RCV124A001
PANEL,TOP
[4] In Stock
RCV132A003
COVER ASSY,SERVICE
Notes: Right side plastic service cover
[5] In Stock
RCV435A001A
GRILLE,AIR OUTLET
Notes: COVERS FAN BLADE/MOTOR - AIR DISCHARGE -AKA Fan Guard
[6] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[7] In Stock
RCV142A001
COVER(TB)
RCV142A001
[8] In Stock
SSA913A034F
SCREW,TAP
Notes: 4X8, 1pc ONLY, 4X8 Show Image
SSA913A034F
[9] In Stock
SSA913A034L
SCREW,TAP
Notes: 4X12, 1pc ONLY
[10] In Stock
SSA913A008F
SCREW,TAP
Notes: 4X10, 1pc ONLY, 4X10
[11] In Stock
RCV116A005
BRACKET ASSY
Notes: FAN MOTOR MOUNTING BRACKET
[12] In Stock
SSA512T094
MOTOR,DC
Notes: CONDENSER FAN MOTOR. HAS WIRING HARNESS ATTACHED.
[13] In Stock
RCV116A003
BRACKET,MOTOR(U)
RCV116A003
[14] In Stock
RCV141A001A
PLATE,BAFFLE
[15] In Stock
SSA431B253
PROPELLER
Notes: OUTDOOR FAN BLADE
[16] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[17] In Stock
RCV111A001
BASE ASSY
[18] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
