DXC06ZSA-W HEAT EXCH. AND CONTROL

DXC06ZSA-W HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

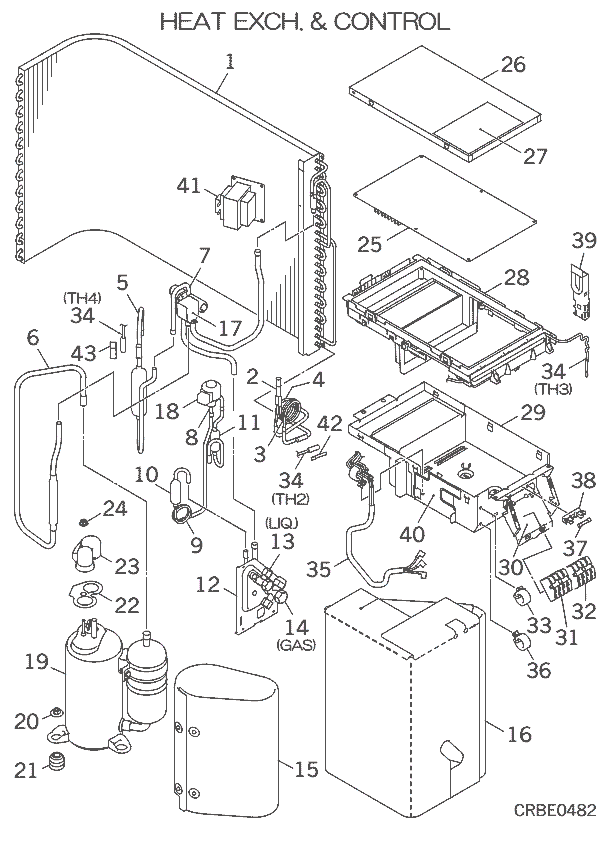

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] In Stock
RCV301A001C
HEAT EXCH ASSY(AIR
Notes: ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***
[2-4] Contact
RCV321A078
PIPE ASSY
Contact
[3] Contact
RCS315B006
CAPILLARY
Contact
Notes: !D2.6XD4.0 L500
[4] Contact
RCV315B003
CAPILLARY
Contact
Notes: f2.6xf4.0 L200
[5] In Stock
RCV321A200A
PIPING ASSY(DISCH)
[6] Contact
RCV321A202
PIPING ASSY(SUCTION)
Contact
[7] In Stock
SSA382C097
4 WAY VALVE
Notes: 20S, Reversing Valve Body - Body only
[8] In Stock
SSA387F066
VALVE,BODY(EXP)
Notes: EEV, EXPANSION VALVE BODY - BODY ONLY/ LENGTH 8CM Show Image
SSA387F066
[8-11] In Stock
RCV304A009F
PIPING ASSY(EXPAN)
Notes: Includes EEV body, Capillary, Strainer & Shell Pipe
[9] In Stock
RCV315B001
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image
RCV315B001
[10] In Stock
SSA357A005A
STRAINER
SSA357A005A
[11] In Stock
RCN325A700
PIPE,SHELL
RCN325A700
[12] In Stock
RCS116A004
BRACKET,VALVE
[13] In Stock
RCS381A004B
SERVICE VALVE
Notes: LIQ., (1/4") LIQ. Show Image
RCS381A004B
[14] In Stock
RCV381A001A
SERVICE VALVE
Notes: GAS, (3/8") GAS Show Image
RCV381A001A
[15] In Stock
RCS154D012
INSULATION,COMP
Notes: SIDE
[16] In Stock
RCV154D007A
INSULATION
[17] In Stock
RSA382F013AK
COIL ASSY,S
Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image
RSA382F013AK
[18] In Stock
SSA382F210AY
SOLENOID COIL (EEV)
Notes: FOR EEV, SOLENOID COIL FOR EEV
[19] In Stock
AHT201A864BS
COMPRESSOR ASSY
Notes: RM-B5077SBE2, ***COMPRESSORS CANNOT BE RETURNED***
[20] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[21] In Stock
SSA941C346A
CUSHION,RUBBER
Notes: 1pc, FOR COMPRESSOR Show Image
SSA941C346A
[22] In Stock
RSA932C004
GASKET
RSA932C004
[23] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[24] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[25] In Stock
RCV505A351L
PWB ASSY
Notes: confirm Service Code as SRC25ZSA-W/B & SRC35ZSA-W/B use different part number..351Z (PWB1) Show Image
RCV505A351L
[26-27] Out of Stock
RCV142A012AN
LID ASSY, CONTROL
Substitute: RCV142A012BD
[27] Contact
RCV011G004C
LABEL,WIRING
Contact
[28] In Stock
RCV142A017
BOX ASSY CONTROL
[29] In Stock
RCV142A014A
BOX ASSY,CONTROL(A)
[30] Contact
RCV116A014
BRACKET(TB)
Contact
[31] Out of Stock
SSA561B723C
BLOCK,TERMINAL
SSA561B723C
[32] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: T3 Show Image
SSA561B733
[33] In Stock
SSA554D173
CORE,FERRITE
[34] In Stock
SSA551A239A
SENSOR ASSY
Notes: TH2,3,4, SENSOR ASSEMBLY Show Image
SSA551A239A
[35] In Stock
RCV504A001A
HARNESS ASSY
Notes: FOR COMP., Red,White,Black Show Image
RCV504A001A
[36] Out of Stock
SSA554D183
KILLER,NOISE
SSA554D183
[37] In Stock
SSA564A136
FUSE
Notes: 15A
[38] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[39] In Stock
RCV129A001A
HOLDER,SENSOR
RCV129A001A
[40] Contact
RCV142A008
LID
Contact
[41] In Stock
SSA554B099A
REACTOR
Notes: AKA TRANSFORMER Show Image
SSA554B099A
[42] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[43] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[44] Contact
RWC011F032D
LABEL,MODEL NAME
Contact
SKU: DXC06ZSA-W HEAT EXCH. AND CONTROL Category:
