DXC05Z5-S HEAT EXCH. AND CONTROL

DXC05Z5-S HEAT EXCH. AND CONTROL

Available Parts

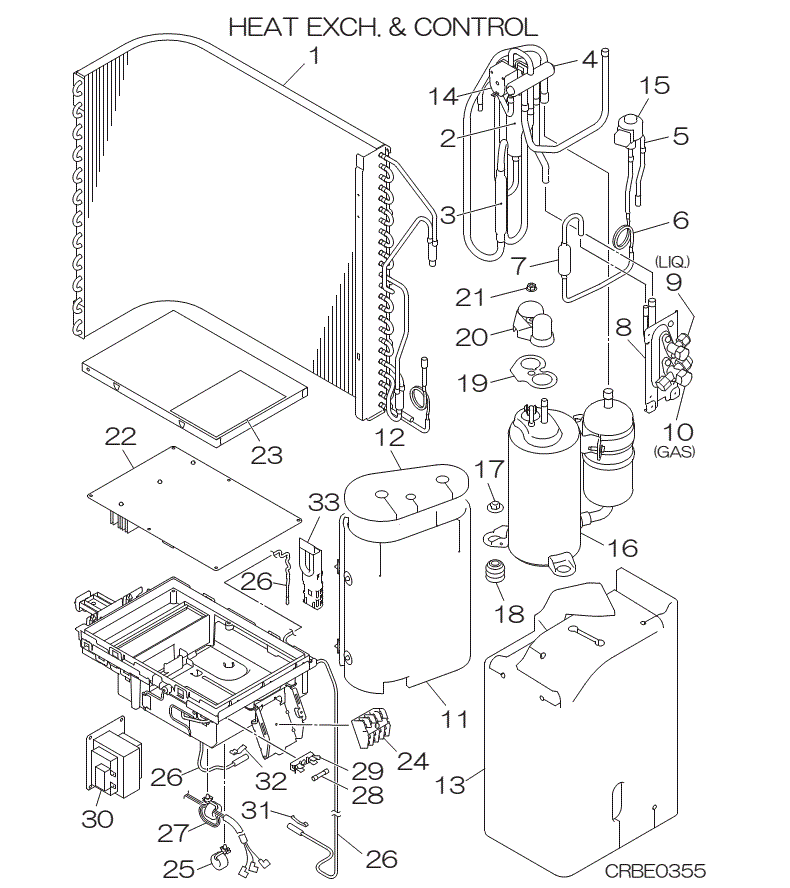

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCW301A001 HEAT EXCH ASSY In Stock
  • [2] RCW321A011 PIPING ASSY(DISCH) Contact   Contact
  • [3] RCW321A014 PIPING ASSY(SUCTION) Contact   Contact
  • [4] SSA382C097 4 WAY VAL Out of Stock Notes: 20S
  • [5] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY, EEV
  • [5-7] RCW304A002 PIPING ASSY(EXPAN) Contact   Contact
  • [6] RCV315B202 CAPILLARY Contact Notes: i 2.6xi 3.6 L300   Contact
  • [7] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [8] RCW116A002 BRACKET(VALVE) Contact   Contact
  • [9] RCW381A001 VALVE SERVICE 1/4 In Stock Notes: LIQ. Show Image
  • [10] RCW381A002 VALVE SERVICE 3/8 Out of Stock Notes: GAS
  • [11] RCW154D001 INSULATION,COMP Contact   Contact
  • [12] RCW154D002 INSULATION,COMP Contact   Contact
  • [13] RCW154D003 INSULATION Contact   Contact

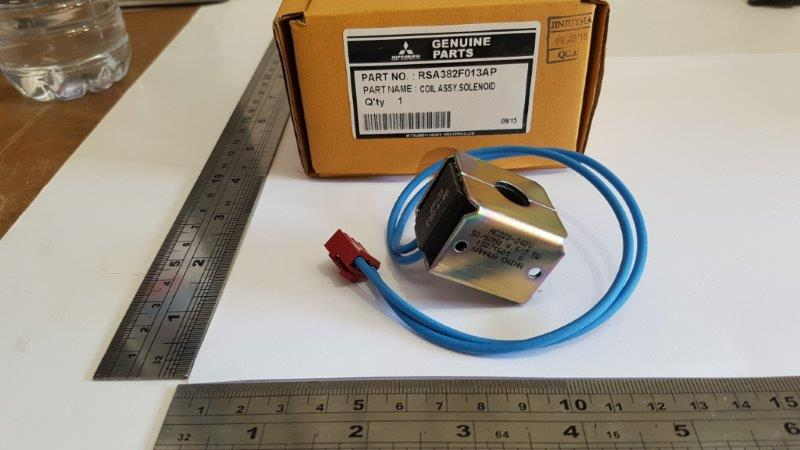

  • [14] RSA382F013AP COIL ASSSY SOLENOID In Stock Notes: FOR 20S Show Image
  • [15] SSA382F210L SOLENOID In Stock Notes: SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE), FOR EEV
  • [16] AHT201A864DV COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM-B5077MDE5
  • [17] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [18] SSA941C346A CUSHION,RUBBER In Stock Notes: 1PC, FOR COMPRESSOR Show Image
  • [19] RSA932C004 GASKET In Stock Show Image
  • [20] RSA947K005 COVER TERMI In Stock Show Image
  • [21] SSA914C016 NUT In Stock Notes: 1PC Show Image

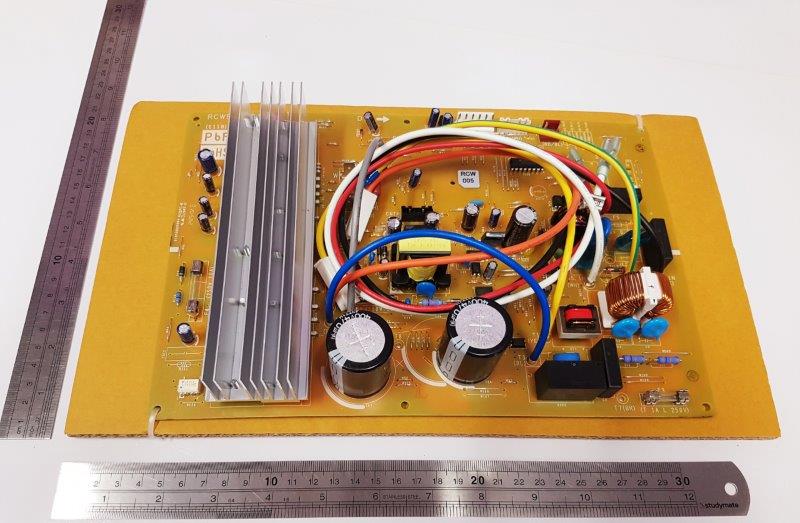

  • [22] RCW505A011J PWB ASSY In Stock
  • [23] RCV011G002AB LABEL,WIRING Contact   Contact
  • [24] SSA561B723 BLOCK,TERMINAL In Stock Show Image
  • [25] SSA554D173 CORE,FERRITE Contact   Contact
  • [26] SSA551A239B SENSOR ASSY In Stock

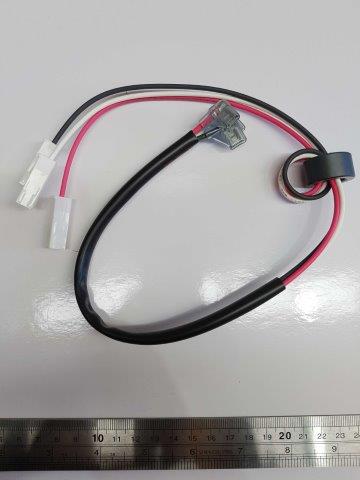

  • [27] RCW504A001A WIRING ASSY In Stock Notes: FOR COMP.
  • [28] SSA564A136 FUSE In Stock Notes: 15A
  • [29] SSA564B088 HOLDER,FUSE In Stock Show Image
  • [30] SSA554B099A REACTOR In Stock Show Image
  • [31] RKF941F002 SPRING In Stock
  • [32] RCJ941F001 SPRING In Stock
  • [33] RCV129A001A HOLDER,SENSOR In Stock Show Image
SKU: DXC05Z5-S HEAT EXCH. AND CONTROL Category:
