FDT60V/B CONTROL AND PARTS SET

FDT60V/B CONTROL AND PARTS SET

Available Parts

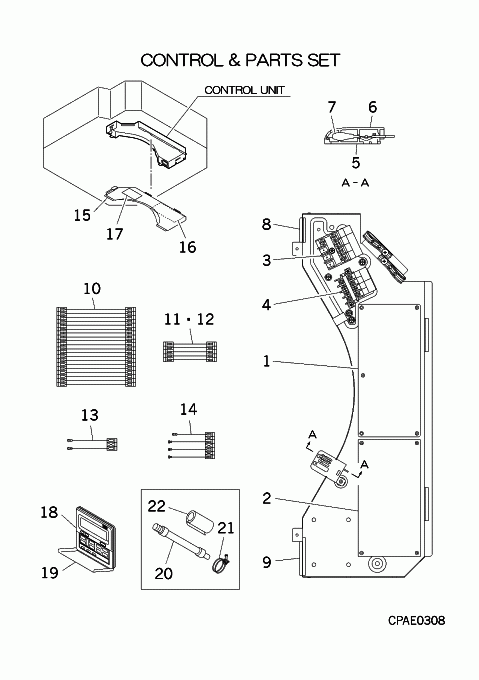

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A200CA PWB ASSY (POWER) In Stock Notes: POWER BOARD CLOSEST TO TERMINAL BLOCKS (PLUGS TO FAN MOTOR AND DRAIN PUMP), ONLY FOR SUPPLY PARTS Show Image
  • [1-14] PJF501A005CJ CONTROL UNIT Contact Notes: !   Contact
  • [2] PJA505A201AB PWB ASSY (CONTROL) In Stock Notes: CONTROL, ONLY FOR SUPPLY PARTS Show Image
  • [3] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [4] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [5] PJF129A014 BASE,HOLDER Contact   Contact
  • [6] PJF129A015 COVER.HOLDER Contact   Contact
  • [7] PSA551A008AB SENSOR In Stock Notes: THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR, THI-A Show Image
  • [8] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [9] SSA947B120 GROMMET In Stock Notes: LENGTH 5.5CM
  • [10] PJF504A001 WIRING(LM) In Stock Notes: CNJ2-CNJ PWB / LENGTH 15.5CM, CNJ2- CNJ PWB
  • [11] PJF504A003 WIRING(PWB) In Stock Notes: CNW4 PWB-CNW1 PWB / LENGTH 9CM, CNW4 PWB- CNW1 PWB
  • [12] PJF504A003A WIRING(PWB) In Stock Notes: CNW3 PWB-CNW2 PWB/ LENGTH 9CM, CNW3 PWB- CNW2 PWB
  • [13] PJF504A006F WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB   Contact
  • [14] PJF504A007 WIRING(TB,POWER) Contact Notes: CONT E,TB1 1,TB1 2,TB1 3-CNW0 PWB, CONT E,TB1 1,TB1 2,TB1 3- CNWO PWB   Contact
  • [15] PJF142A006 LID,CONTROL BOX In Stock
  • [16] PJF011G009 LABEL,WIRING Contact Notes: !   Contact
  • [17] PSA011H032 LABEL,NOTICE Contact   Contact
  • [18-19] PJA502A800C WIRED REMOTE CONTROL Out of Stock Substitute: PJA502A800BC Notes: RC-E3 / 2 WIRE ***SALES ITEM - CONTACT SALES***, RC-E3
  • [19] PJA129A708 COVER Z Contact   Contact
  • [20] SSA423A101 HOSE,DRAIN In Stock Substitute: SSA423A101A Show Image
  • [20-22] PJF008A001 PARTS SET Contact   Contact
  • [21] V300Y38 CLAMP In Stock Notes: CLAMP Show Image
  • [22] PJA153B008 INSULATION,PIPE In Stock
  • [23] PJF011F016F LABEL,MODEL NAME Contact Notes: !   Contact
SKU: FDT60V/B CONTROL AND PARTS SET
