FDT50VH/1 FAN ASSY AND CABINET

FDT50VH/1 FAN ASSY AND CABINET

Available Parts

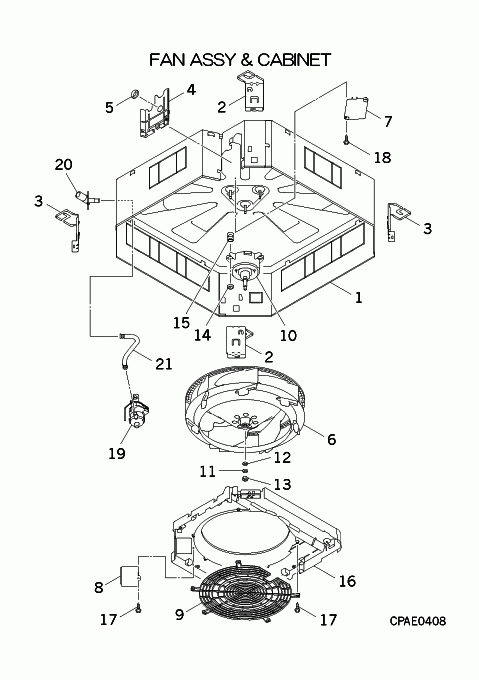

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-5] PJF100A002C CABINET ASSY Contact Notes: !   Contact
  • [2] PJF032A006 HOLDER Contact   Contact
  • [3] PJF032A006A HOLDER Contact   Contact
  • [4-5] PJF132A021 LID ASSY Contact   Contact
  • [5] S751W20 GROMMET 5K1 Contact Notes: D25   Contact
  • [6] SSA431J030 FAN, TURBO In Stock
  • [7] PJF129A013 PLATE Contact   Contact
  • [8] PJF132A020 LID,BELLMOUTH Contact   Contact
  • [9] PJF131A004 GUARD,FAN Contact   Contact
  • [10] SSA512T116 MOTOR,DC In Stock
  • [11] W220R10 WASHER In Stock Notes: 1PC ONLY Show Image
  • [12] W205H10 WASHER In Stock Notes: 1PC ONLY Show Image
  • [13] N001A10 NUT In Stock Notes: 1PC Show Image
  • [14] SSA914C015 NUT FLANGE In Stock Notes: 1PC Show Image
  • [15] SSA941C309 CUSHION, RUB In Stock Notes: 1PC ONLY Show Image
  • [16] PJF433A003 BELLMOUTH Contact   Contact
  • [17] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [18] W011D04X012 TAP-SCREW Contact Notes: 1PC ONLY, 4X12   Contact
  • [19] PJF451A003A PUMP ASSY, DRAIN In Stock Notes: DRAIN / CONDENSATE PUMP
  • [20] PJF422C002 SOCKET ASSY,DRAIN Out of Stock
  • [20-21] PJF422C002 SOCKET ASSY,DRAIN Out of Stock
  • [21] SSA423A100 HOSE,DRAIN In Stock
  • [22] PSA423A004 SOCKET ASSY In Stock Substitute: PSA423A004A Notes: SEE D: CONTROL & PARTS SET Show Image
  • [23] V300Y32 HOSE CLAMP Contact Notes: SEE D: CONTROL & PARTS SET   Contact
SKU: FDT50VH/1 FAN ASSY AND CABINET Category:
