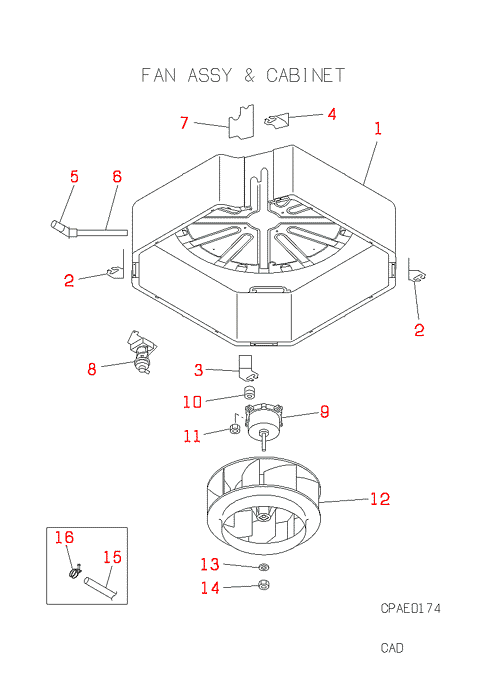

FDT508-A FAN ASSY AND CABINET

FDT508-A FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
PJA100A500A
CABINET ASSY
Contact
[2] Contact
PJA032A500
HOLDER
Contact
[3] Contact
PJA032A500A
HOLDER
Contact
[4] Contact
PJA032A501
HOLDER
Contact
[5] Out of Stock
SSA422C086
SOCKET
[5-6] In Stock
PJA422C500A
SOCKET ASSY
Notes: INC. INTERNAL HOSE; FOR EXTERNAL USE PJA006A317 Show Image
PJA422C500A
[6] In Stock
PJA422C500A
SOCKET ASSY
Notes: INC. INTERNAL HOSE; FOR EXTERNAL USE PJA006A317 Show Image
PJA422C500A
[7] Contact
PJA132A500
LID
Contact
[8] In Stock
PJA451A510Z
PUMP DRAIN
Show Image
PJA451A510Z
[9] Out of Stock

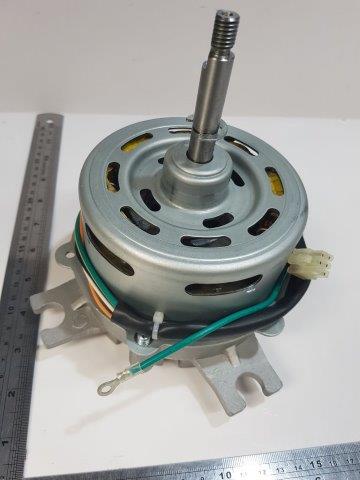

SSA511A596A
MOTOR,AC
Substitute: OUT OF PRODUCTION Notes: NO ALTERNATIVES Show Image
SSA511A596A
[10] Contact
SSA941C174
CUSHION RUB
Contact
[11] In Stock
SSA914C015A
NUT FLANGE
Notes: 1pc Show Image
SSA914C015A
[12] In Stock
SSA431J010
FAN,TURBO
[13] In Stock
W205H10
WASHER
Notes: 1pc ONLY Show Image
W205H10
[14] In Stock
N001A10
NUT
Notes: 1pc Show Image
N001A10
[15] In Stock
PSA006A039
HOSE SET, DRAIN
[16] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
SKU: FDT508-A FAN ASSY AND CABINET Category:
