FDT40VH/1 HEAT EXCH. ASSY

FDT40VH/1 HEAT EXCH. ASSY

Available Parts

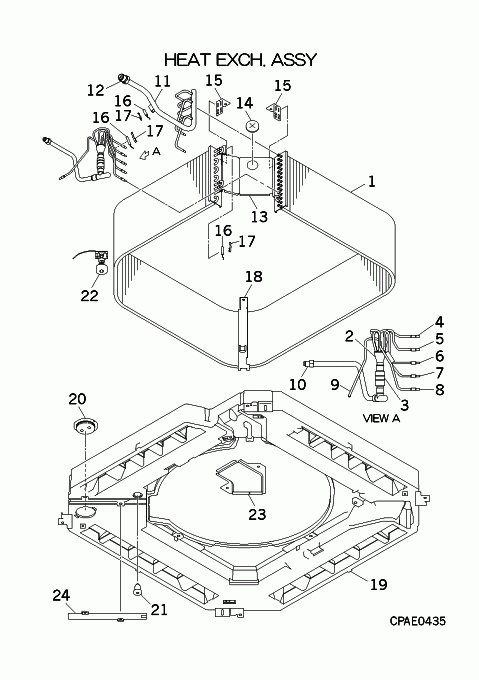

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-17] PJF301A038 HEAT EXCH ASSY(AIR Contact   Contact
  • [2] SSA315A306AD DISTRIBUTOR Contact Notes: !   Contact
  • [2-10] PJF315A027 DISTRIBUTOR ASSY Contact   Contact
  • [3] SSA357A051D STRAINER In Stock Show Image
  • [4] PJF315B018 CAPILLARY Contact Notes: !D2.8XD4.0 L120   Contact
  • [5] PJF315B018A CAPILLARY Contact Notes: !D2.6XD4.0 L140   Contact
  • [6] PJF315B018B CAPILLARY Contact Notes: !D2.6XD4.0 L180   Contact
  • [7] PJF315B018C CAPILLARY Contact Notes: !D2.0XD4.0 L200   Contact
  • [8] PJF315B018D CAPILLARY Contact Notes: !D2.0XD4.0 L260   Contact
  • [9] PJF315B018F CAPILLARY Contact Notes: !D2.2XD4.0 L220   Contact
  • [10] SSA323F092 UNION,SOLDER Contact   Contact
  • [11-12] PJF315D021A HEADER ASSY,GAS Contact Notes: !   Contact
  • [12] SSA323F012B UNION Contact   Contact
  • [13-14] PJF141A007A PLATE ASSY,BAFFLE Contact   Contact
  • [14] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [15] PJF116A040 BRACKET(PLATE,SIDE Contact   Contact
  • [16] PJF551A002K SENSOR ASSY(TEMP) In Stock Notes: 3 REFRIGERANT (COIL) SENSORS ON SAME PLUG - THI-R1,2,3, THI-R1,2,3 Show Image
  • [17] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [18] PJF116A049B BRACKET(HEAT EX) Contact   Contact
  • [19-21] PJF454A007C PAN ASSY,DRAIN Contact   Contact
  • [20] PJF129A086 CAP AND NOZZLE(DRAIN Contact   Contact
  • [21] AHT326A002B PLUG Contact   Contact
  • [22] PJF536A003 SWITCH ASSY,FLOAT In Stock Notes: FLOAT SWITCH, FS
  • [23] PJF142A007A COVER Contact   Contact
  • [24] PJF129A083 COVER(DP) Contact   Contact
SKU: FDT40VH/1 HEAT EXCH. ASSY Category:
