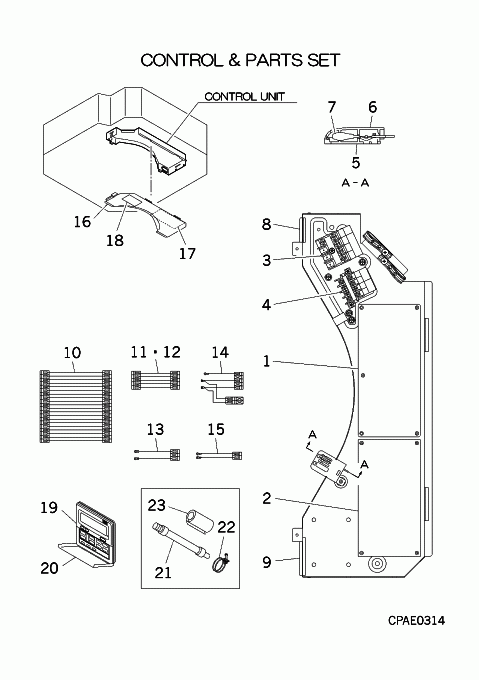

FDT36KXE6A/B CONTROL AND PARTS SET

FDT36KXE6A/B CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A200DA
PWB (POWER)
Notes: ONLY FOR SUPPLY PARTS, POWER PCB - PLUGS INTO FAN MOTOR Show Image
PJA505A200DA
[1-15] Contact
PJF501A006FC
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] In Stock
PJA505A202AB
PWB (CONTROL)
Notes: ONLY FOR SUPPLY PARTS Show Image
PJA505A202AB
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] Contact
PJF129A014
BASE,HOLDER
Contact
[6] Contact
PJF129A015
COVER.HOLDER
Contact
[7] In Stock
PSA551A008AB
SENSOR
Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image
PSA551A008AB
[8] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[9] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[10] In Stock
PJF504A001
WIRING(LM)
Notes: CNJ2- CNJ PWB, CNJ2-CNJ PWB‚ / LENGTH 15.5CM - ***NOT LOUVER MOTOR HARNESS*** Show Image
PJF504A001
[11] In Stock
PJF504A003
WIRING(PWB)
Notes: CNW4 PWB- CNW1 PWB, CNW4 PWB-CNW1 PWB‚ / LENGTH 9CM Show Image
PJF504A003
[12] In Stock
PJF504A003A
WIRING(PWB)
Notes: CNW3 PWB- CNW2 PWB, CNW3 PWB-CNW2 PWB/ LENGTH 9CM Show Image
PJF504A003A
[13] Contact
PJF504A006F
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[14] Contact
PJF504A008
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU, CONT E,TB1 1,TB1 2- CNW0 PWB,CNU
[15] Contact
PJF504A010
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[16] In Stock
PJF142A006
LID,CONTROL BOX
[17] Contact
PJF011G010
LABEL,WIRING
Contact
Notes: !
[18] Contact
PSA011H032
LABEL,NOTICE
Contact
[19-20] Out of Stock
PJA502A800C
Wired Remote Control
Substitute: PJA502A800BC Notes: RC-E3, RC-E3 / 2 WIRE ***sales item - contact sales***
[20] Contact
PJA129A708
COVER Z
Contact
[21] In Stock
SSA423A101
HOSE,DRAIN
Show Image
SSA423A101
[21-23] Contact
PJF008A001
PARTS SET
Contact
[22] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[23] In Stock
PJA153B008
INSULATION,PIPE
[24] Contact
PJF011F017C
LABEL,MODEL NAME
Contact
Notes: !
