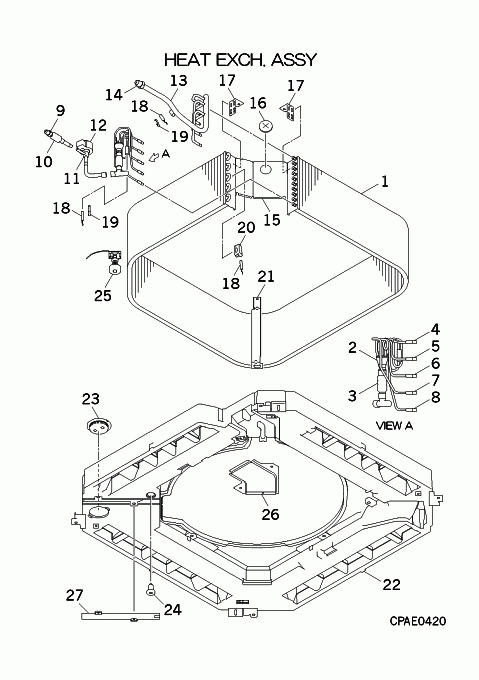

FDT28KXZE1/F HEAT EXCH. ASSY

FDT28KXZE1/F HEAT EXCH. ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-20] PJF301A033B HEAT EXCH ASSY(AIR In Stock Substitute: PJF301A033AB
  • [2] SSA315A311AC DISTRIBUTOR Contact   Contact
  • [2-8] PJF315A025A DISTRIBUTOR ASSY Contact Notes: !   Contact
  • [3] SSA357A051D STRAINER In Stock Show Image
  • [4] PJF315B015 CAPILLARY Contact Notes: !D2.0XD4.0 L240   Contact
  • [5] PJF315B015A CAPILLARY Contact Notes: !D3.0XD4.0 L120   Contact
  • [6] PJF315B015B CAPILLARY Contact Notes: !D2.8XD4.0 L240   Contact
  • [7] PJF315B015C CAPILLARY Contact Notes: !D2.4XD4.0 L240   Contact
  • [8] PJF315B015D CAPILLARY Contact Notes: !D1.6XD4.0 L400   Contact
  • [9] SSA323F092 UNION,SOLDER Contact   Contact
  • [9-10] PJF321A044A PIPING ASSY Contact   Contact
  • [10] SSA357A051F STRAINER In Stock
  • [11] SSA387F074A VALVE EXPANSION In Stock Notes: SM Show Image
  • [12] SSA382F228AV COIL, SOLENOID In Stock Notes: FOR SM
  • [13-14] PJF315D018H HEADER ASSY,GAS Contact Notes: !   Contact
  • [14] SSA323F092A UNION,SOLDER Contact   Contact
  • [15-16] PJF141A007A PLATE ASSY,BAFFLE Contact   Contact
  • [16] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [17] PJF116A040 BRACKET(PLATE,SIDE Contact   Contact
  • [18] PJF551A002K SENSOR ASSY(TEMP) In Stock Notes: 3 REFRIGERANT (COIL) SENSORS ON SAME PLUG - THI-R1,2,3, THI-R1,2,3 Show Image
  • [19] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R2,3 Show Image
  • [20] PSA937B002 CLAMP,SENSOR Contact Notes: FOR THI-R1   Contact
  • [21] PJF116A041C BRACKET(HEAT EX) Contact   Contact
  • [22-24] PJF454A007C PAN ASSY,DRAIN Contact   Contact
  • [23] PJF129A086 CAP AND NOZZLE(DRAIN Contact   Contact
  • [24] AHT326A002B PLUG Contact   Contact
  • [25] PJF536A003 SWITCH ASSY,FLOAT In Stock Notes: FLOAT SWITCH, FS
  • [26] PJF142A007A COVER Contact   Contact
  • [27] PJF129A083 COVER(DP) Contact   Contact
SKU: FDT28KXZE1/F HEAT EXCH. ASSY Category:
