FDT160KXZE1/1 PANEL ASSY

Name: FDT160KXZE1/1 PANEL ASSY
SKU: FDT160KXZE1/1 PANEL ASSY
Availability: InStock

FDT160KXZE1/1 PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

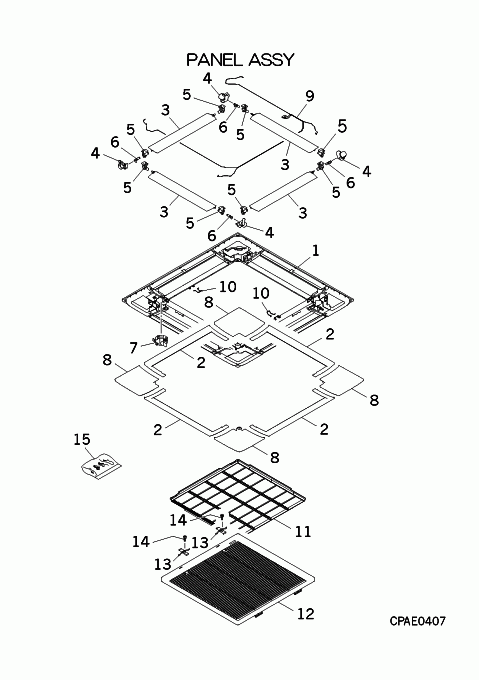

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJF122A018

PANEL,FRONT

[1-10] In Stock

PJF122A017

PANEL ASSY,FRONT

Notes: FASCIA PANEL - CONTACT SALES DEPT

[2] In Stock

PJF122A019

PANEL ASSY(AIR WIN

[3] In Stock

PJF436A008

LOUVER ASSY,BLOW

Notes: LENGTH 52CM Show Image

[4] In Stock

PJF512T007

MOTOR ASSY

Show Image

[5] In Stock

PJF129A066

COLLAR

Show Image

[6] In Stock

PJF144A002

CRANK

Show Image

[7] In Stock

PJF129A068

COVER ASSY

Show Image

[8] In Stock

PJF132A017

LID ASSY,CORNER

[9] In Stock

PJF504A045

WIRING ASSY(LOUVER

Notes: LM1,LM2,LM3,LM4- CNJ1 PWB, LENGTH 168CM Show Image

[10] Contact

PJF962C003

WIRE

Contact

[11] In Stock

PJF437A012B

FILTER,AIR

Notes: W588XD562( 17)

[12] In Stock

PJF435A006

GRILLE,AIR INLET

[12-14] In Stock

PJF435A005G

GRILLE ASSY,INLET

Notes: LENGTH 63CM

[13] In Stock

PJF129A007

STOPPER

Show Image

[14] In Stock

W011D04X010

TAP-SCREW

Notes: 4X10, ***ONE SCREW ONLY*** 1pc ONLY Show Image

[15] In Stock

PJF006A001K

PARTS SET

Notes: 4 BOLTS 3 SCREWS AND BLACK BELT Show Image

SKU: FDT160KXZE1/1 PANEL ASSY Category: Uncategorised
