FDT160KXE6D CONTROL AND PARTS SET

Name: FDT160KXE6D CONTROL AND PARTS SET
SKU: FDT160KXE6D CONTROL AND PARTS SET
Availability: InStock

FDT160KXE6D CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

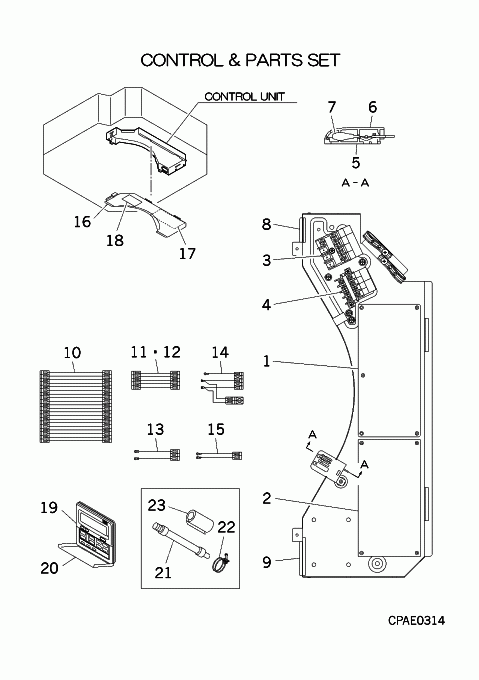

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A200DA

PWB (POWER)

Notes: POWER PCB - PLUGS INTO FAN MOTOR Show Image

[1-15] Contact

PJF501A008FR

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PJA505A202DA

PWB (CONTROL)

Show Image

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] Contact

PJF129A014

BASE,HOLDER

Contact

[6] Contact

PJF129A015

COVER.HOLDER

Contact

[7] In Stock

PSA551A008AB

SENSOR

Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image

[8] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[9] In Stock

SSA947B120

GROMMET

Notes: LENGTH 5.5CM Show Image

[10] In Stock

PJF504A001

WIRING(LM)

Notes: CNJ2-CNJ PWB, CNJ2-CNJ PWB‚ / LENGTH 15.5CM - ***NOT LOUVER MOTOR HARNESS*** Show Image

[11] In Stock

PJF504A003

WIRING(PWB)

Notes: CNW4 PWB-CNW1 PWB, CNW4 PWB-CNW1 PWB‚ / LENGTH 9CM Show Image

[12] In Stock

PJF504A003A

WIRING(PWB)

Notes: CNW3 PWB-CNW2 PWB, CNW3 PWB-CNW2 PWB/ LENGTH 9CM Show Image

[13] Contact

PJF504A006F

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[14] Contact

PJF504A008

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2-CNW0 PWB,CNU, CONT E,TB1 1,TB1 2- CNW0 PWB,CNU

[15] Contact

PJF504A010

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B-CNK1 PWB, TB2 A,TB2 B- CNK1 PWB

[16] In Stock

PJF142A006

LID,CONTROL BOX

[17] Contact

PJF011G013

LABEL,WIRING

Contact

[18] Contact

PSA011H032

LABEL,NOTICE

Contact

[19-20] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E4, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[20] Contact

PJA129A708

COVER Z

Contact

[21] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[21-23] Contact

PJF008A001F

PARTS SET

Contact

[22] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[23] In Stock

PJA153B008

INSULATION,PIPE

[24] Contact

PJF011F023P

LABEL,MODEL NAME

Contact
