FDT160KXE6 HEAT EXCH. ASSY

FDT160KXE6 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

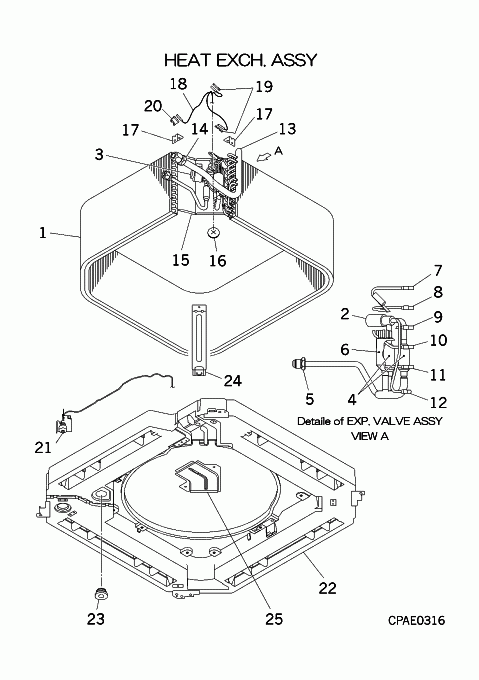

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJF311A004
HEAT EXCH(AIR)
Contact
[1-20] Contact
PJF301A009
HEAT EXCH ASSY(AIR
Contact
[2] In Stock
SSA387F045B
VALVE,BODY(EXP)
Notes: SM Show Image
SSA387F045B
[3] In Stock
SSA382F212K
COIL,SOLENOID
Notes: FOR EEVH or SM2, FOR SM2‚ (HEATING), 5 CABLE - RED PLUG Show Image
SSA382F212K
[4] Out of Stock
SSA357A005P
STRAINER
Show Image
SSA357A005P
[5] Contact
SSA323F012A
UNION
Contact
[6] Contact
SSA315A036
DISTRIBUTOR
Contact
[6-12] Contact
PJF315A008
DISTRIBUTOR ASSY
Contact
[7] Contact
PJF315B004
CAPILLARY
Contact
Notes: !D3.0XD4.0 L160
[8] Contact
PJF315B004A
CAPILLARY
Contact
Notes: !D3.0XD4.0 L140
[9] Contact
PJF315B004B
CAPILLARY
Contact
Notes: !D2.4XD4.0 L120
[10] Contact
PJF315B004C
CAPILLARY
Contact
Notes: !D2.8XD4.0 L140
[11] Contact
PJF315B004D
CAPILLARY
Contact
Notes: !D2.4XD4.0 L160
[12] Contact
PJF315B004F
CAPILLARY
Contact
Notes: !D3.0XD4.0 L200
[13-14] Contact
PJF315D001D
HEADER ASSY,GAS
Contact
[14] Contact
SSA323F012J
UNION
Contact
[15-16] Contact
PJF141A001A
PLATE ASSY,BAFFLE
Contact
[16] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[17] Contact
PJF116A010
BRACKET
Contact
[18] In Stock
PJF551A002
SENSOR ASSY
Notes: THI-R1,2,3
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[20] Contact
PJF941F002
SPRING,LEAF
Contact
Notes: FOR THI-R1
[21] In Stock
PJF536A001
SWITCH ASSY,FLOAT
Notes: FS Show Image
PJF536A001
[22-23] In Stock
PJF454A001L
PAN ASSY,DRAIN
[23] In Stock
SSA326A048
PLUG
Show Image
SSA326A048
[24] Contact
PJF116A011
BRACKET
Contact
Substitute: PJF116A030A
[25] Contact
PJF142A007
COVER
Contact
