FDT140KXZE1/F CONTROL AND PARTS SET

FDT140KXZE1/F CONTROL AND PARTS SET

Available Parts

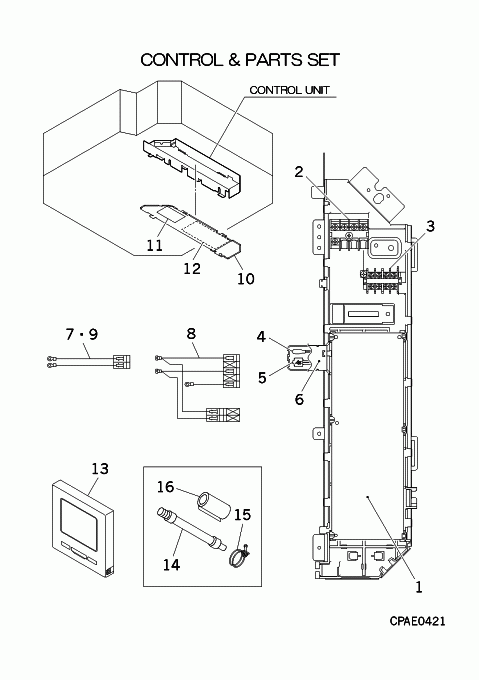

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A266AC PWB ASSY(MAIN) In Stock Notes: ONLY FOR SUPPLY PARTS
  • [1-9] PJF501A019BP CONTROL UNIT Contact Notes: !   Contact
  • [2] SSA561B702C BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [3] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [4] PSA551A001GA SENSOR ASSY In Stock Notes: RETURN AIR, THI-A
  • [5] SSA551B017 SENSOR(HUMIDITY) In Stock Notes: SENSOR(HUMIDITY), HS
  • [6] PMA129A002 COVER.HOLDER Contact   Contact
  • [7] PJF504A047 WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB PWB   Contact
  • [8] PJG504A007G WIRING(TB,POWER) Contact   Contact
  • [9] PJF504A010J WIRING(TB,AB) Contact Notes: TB2 A,TB2 B- CNK1 PWB   Contact
  • [10] PJF142A024 LID,CONTROL BOX Contact   Contact
  • [11] PSA011H046 LABEL,NOTICE Contact   Contact
  • [12] PJF011G025 LABEL,WIRING Contact Notes: !   Contact
  • [13] PJZ502A031AC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX3A   Contact
  • [14] PSA423A004 SOCKET ASSY In Stock Substitute: PSA423A004A Show Image
  • [14-16] PJF008A025B SET ASSY,PARTS Contact   Contact
  • [15] V300Y32 HOSE CLAMP Contact   Contact
  • [16] PJA153B008 INSULATION,PIPE In Stock
  • [17] PJF011F070N LABEL,MODEL NANE Contact Notes: !   Contact
SKU: FDT140KXZE1/F CONTROL AND PARTS SET Category:
