FDT125VH/1 CONTROL AND PARTS SET

FDT125VH/1 CONTROL AND PARTS SET

Available Parts

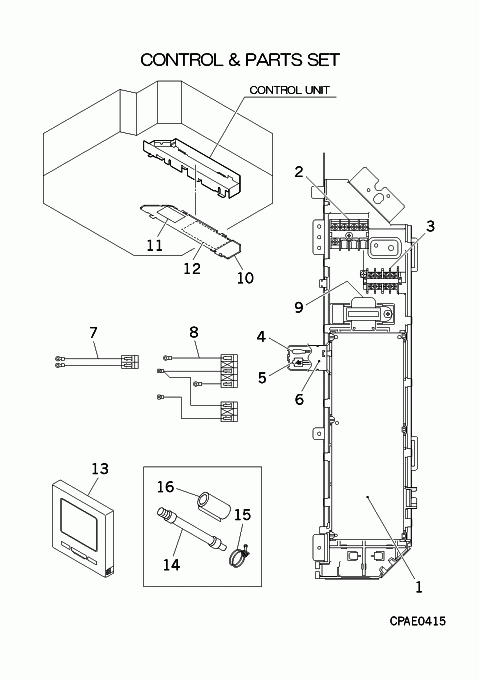

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A265M PWB ASSY (MAIN) In Stock Substitute: PJA505A265T Notes: ONLY FOR SUPPLY PARTS
  • [1-9] PJF501A018DP CONTROL UNIT Contact Notes: !   Contact
  • [2] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image
  • [3] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [4] PSA551A001GA SENSOR ASSY In Stock Notes: RETURN AIR, THI-A
  • [5] SSA551B017 SENSOR(HUMIDITY) In Stock Notes: SENSOR(HUMIDITY), HS
  • [6] PMA129A002 COVER.HOLDER Contact   Contact
  • [7] PJF504A047 WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB PWB   Contact
  • [8] PJF504A036H WIRING(TB,POWER) Contact Notes: TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB   Contact
  • [9] SSA554B117 REACTOR In Stock Show Image
  • [10] PJF142A024 LID,CONTROL BOX Contact   Contact
  • [11] PSA011H046 LABEL,NOTICE Contact   Contact
  • [12] PJF011G024 LABEL,WIRING Contact Notes: !   Contact
  • [13] PJZ502A031AC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX3A   Contact
  • [14] PSA423A004 SOCKET ASSY In Stock Substitute: PSA423A004A Show Image
  • [14-16] PSA008A427 PARTS SET(A) In Stock Notes: CABLE TIES, WASHERS, DRAIN HOSE, 2X INSULATION, CARBOARD TEMPORARY MEASUREMENT.
  • [15] V300Y32 HOSE CLAMP Contact   Contact
  • [16] SSA153B022BH INSULATION,PIPE Contact   Contact
  • [17] PJF011F067N LABEL,MODEL NANE Contact Notes: !   Contact
SKU: FDT125VH/1 CONTROL AND PARTS SET Category:
